EN

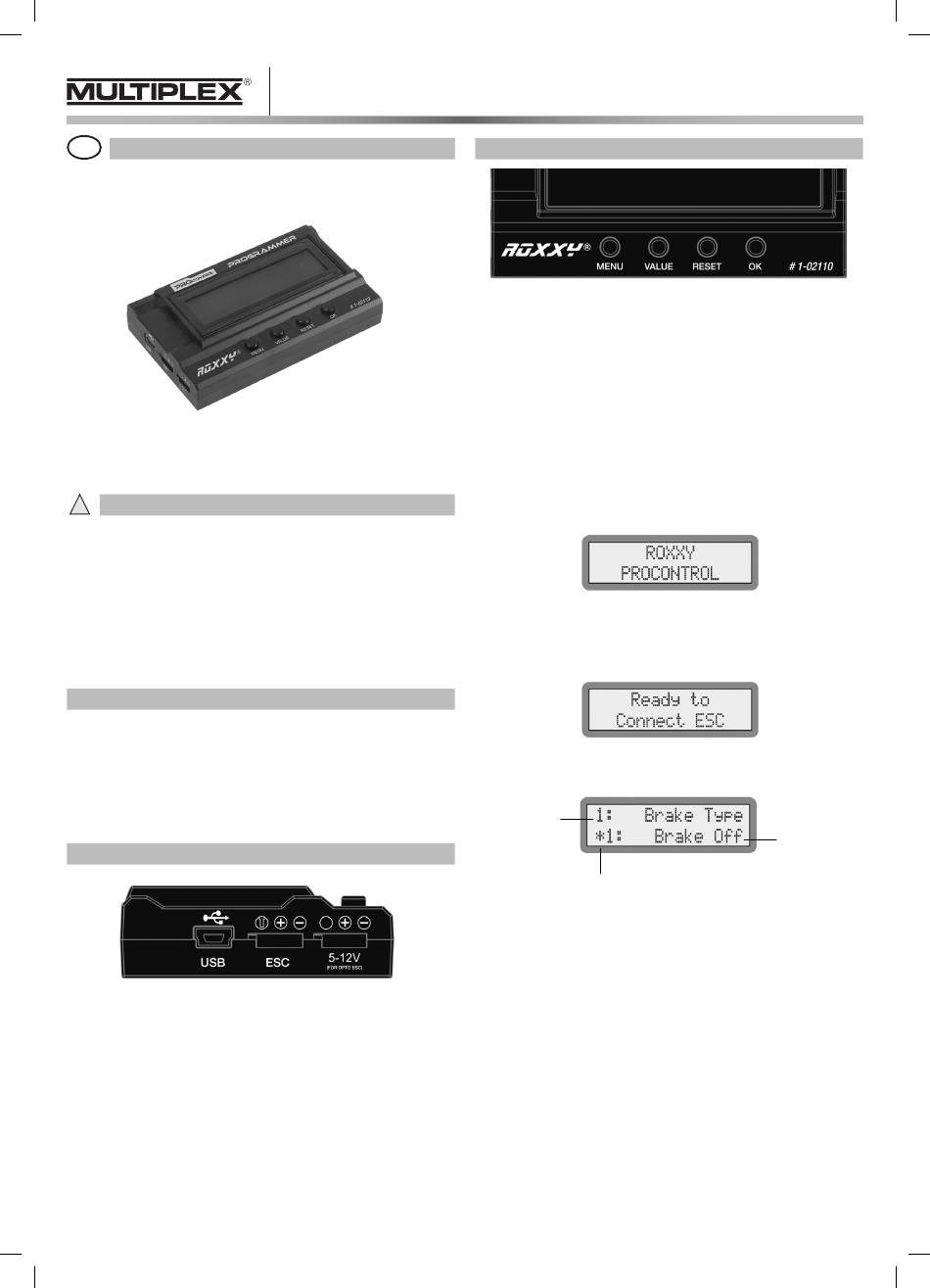

Programmer # 1-02110
The ROXXY PROcontrol programmer is intended for all control-
lers of the ROXXY PROcontrol series. Only these controllers,
and no others, can be programmed with it.
! These operating instructions are part of this product. They
contain important information and safety advice. Therefore,
they should always be kept at hand and passed on when sell-
ing the product to third parties.

SAFETY INFORMATION

!
! Please read carefully before initial use.
! Do not inadvertently connect the controller and battery with
reverse polarity.
! When programming with the motor connected or on the
model, ensure everything is safe and secure. Technical
defects can cause the motor to start unintentionally, resulting in
considerable damage or serious injuries. Be sure to read the
respective operating instructions of the controllers.
Specifications
Roxxy PROcontrol programmer
Order no.: # 1-02110
Only for ROXXY PROcontrol controllers
Operating voltage: 5-12 V
Dimensions in mm (approx.): 92 x 54 x 18
Weight: 66 g
Connection of the ROXXY PROcontrol controllers
Connect the PROcontrol controller to the PROcontrol programmer.
The respective port is labeled ESC. Use the right connection cable
and ensure correct polarity. ROXXY PROcontrol controllers come
with two connection cables. Use the three-wire cable for connection
to the programmer.
For controllers with a BEC, you can use it to supply the program-
mer with power. This involves connecting a suitable, preferably fully
charged, battery to the controller. Alternatively (or for controllers with
an optocoupler), power the programmer with a battery (5 V-12 V) via
the INPUT port. OPTO controllers also have two servo cables; the
shorter of the two is for connection to the programmer.
ROXXY PROcontrol Series – Operating instructions
Operation
MENU button:
VALUE button:
RESET button:
OK button:
If a battery has been connected, the start screen appears.
Click the MENU button to access the programming menu. This is
acknowledged by the menu text Ready to Connect ESC, which
appears briefly.
You are now in the programming menu.
The current
programming
item can be seen
in the top line.
Click the VALUE button to change the settings. When the appropri-
ate setting is displayed, click the OK button to save it. Each param-
eter must be stored separately in its programming item. This is how
to configure the PROcontrol controller step by step according to your
needs. Upon completion, the controller can be disconnected from
the programmer. If only one parameter is to be changed specifically,
go to the desired menu item, select the correct value and then click
the OK button to save it. The controller can then be disconnected
from the programmer.
If you want to reset the controller to its factory settings, click the
RESET button. All the parameters are then reset and saved. Chang-
es only take effect after removing the battery.
3
Starts programming and navigates through
the programming menu (Points 1-9)
Navigates through the parameter settings
Resets the controller to the factory settings
and saves them at the same time
Saves selected parameters in the respective
programming item
The asterisk shows that the
factory setting is selected here.
# 1-02110
The currently
selected value
is displayed in
the bottom line.
