3.2 Switch box

The switch box is located in the heat pump. The switch box
cover can be removed once the lower front cover has been re-
moved and the two screws on the side have been unfastened.
(Mains)connecting terminals, power electronics for the com-
pressor, refrigeration circuit controller and heat pump manager
are located in the switch box
The heat pump manager is a convenient electronic regulation
and control device. It controls and monitors the entire heating
system based on the outside temperature, as well as domestic
hot water preparation and safety systems.
The external temperature sensor to be mounted on-site is in-
cluded in the heat pump scope of supply together with the nec-
essary fixing accessories.
The enclosed operating instructions describe the function and
use of the heat pump manager.
In order to simplify service work on the refrigeration circuit, it is
possible to remove the switch box and position it next to the
device. For this, the cover must be removed and the switch box
disconnected from the cooling.
www.glendimplex.de
2

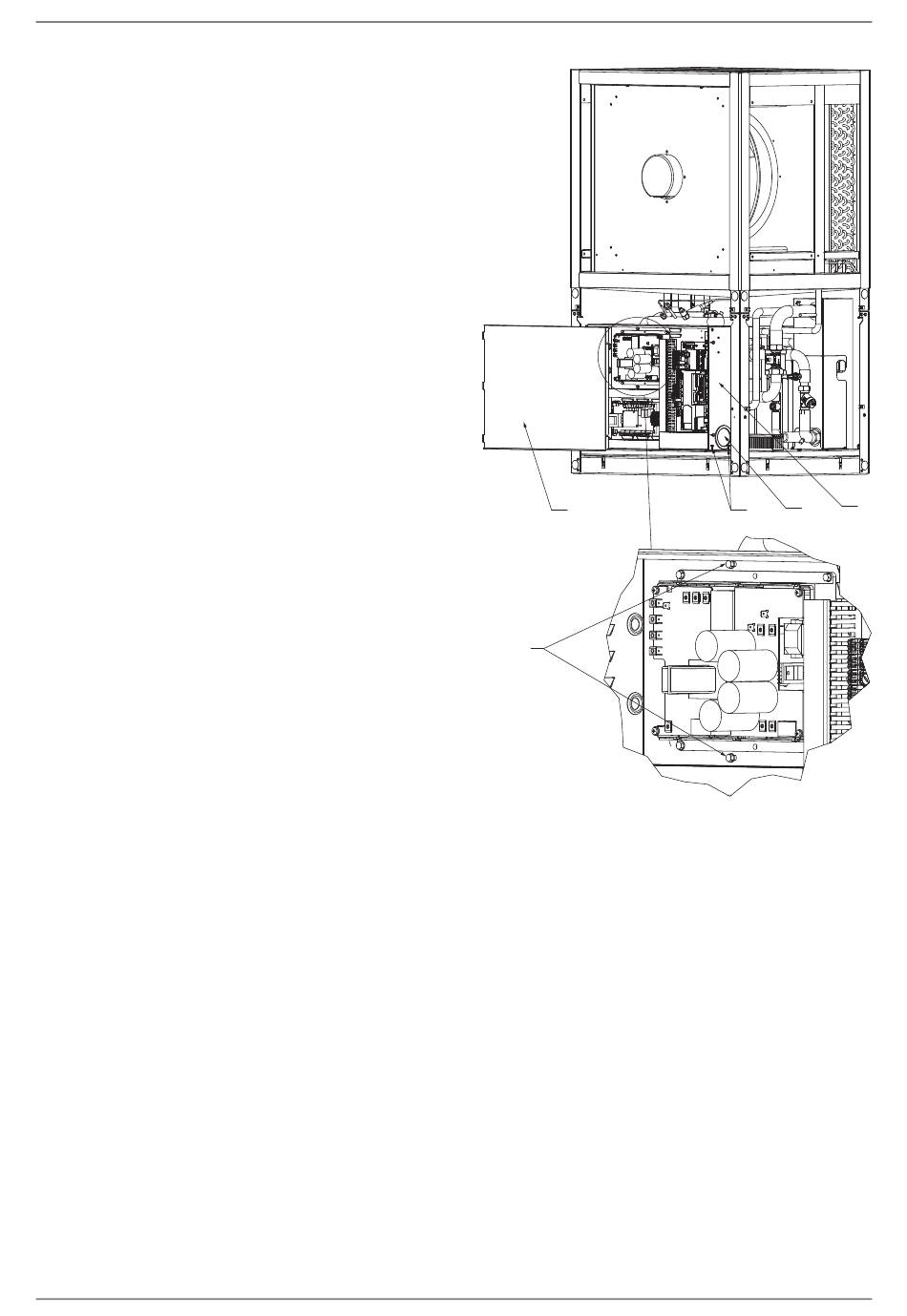

1) Remove switch box cover
2) Unfasten 2x screws for cooling
3) Disconnect supply lines at the controller and
guide through grommet
4) Unfasten 2x screws for switch box
5) Push the switch box slightly to the right
and lift it out to the front
