6. Assembling the interior switch cabinet

6.1

Selecting the location

When selecting the location for the switch cabinet, the following must be taken into consideration:
The switch cabinet must be mounted above the highest water level in the tank in order to

avoid overflows and water intake in the open channel in the event of an accident.
The system generates noise! When operating, the air compressor generates continuous

noise comparable to a freezer.
The machine cabinet requires a separately protected electrical connection (16 amp, slow

blow). The electrical connection serves as a mains disconnecting device and must be easily
accessible at all times. Additional electrical fixtures on the same fuse may disrupt operation.
The location of the machine cabinet must be a dry, cool and well-ventilated room. The cabi-

net, in particular the ventilation openings and the circuit breaker, must not be covered and
must be freely accessible for maintenance work.
The air hoses must be no longer than 20 metres.

6.2

Technical Data

Model: IP20
Material:
PP
Color: black
Shutting:
Screw lock centered at the front cover
Electrical connection:
Back-up fuse required on site
1 ~ 230V, 50 Hz
Connections at the cabinet:
Compressed air nozzles: 1x 13 mm, 1 x 19 mm
Connection cable with plug type E+F
6. Assembling the interior switch cabinet
280
420

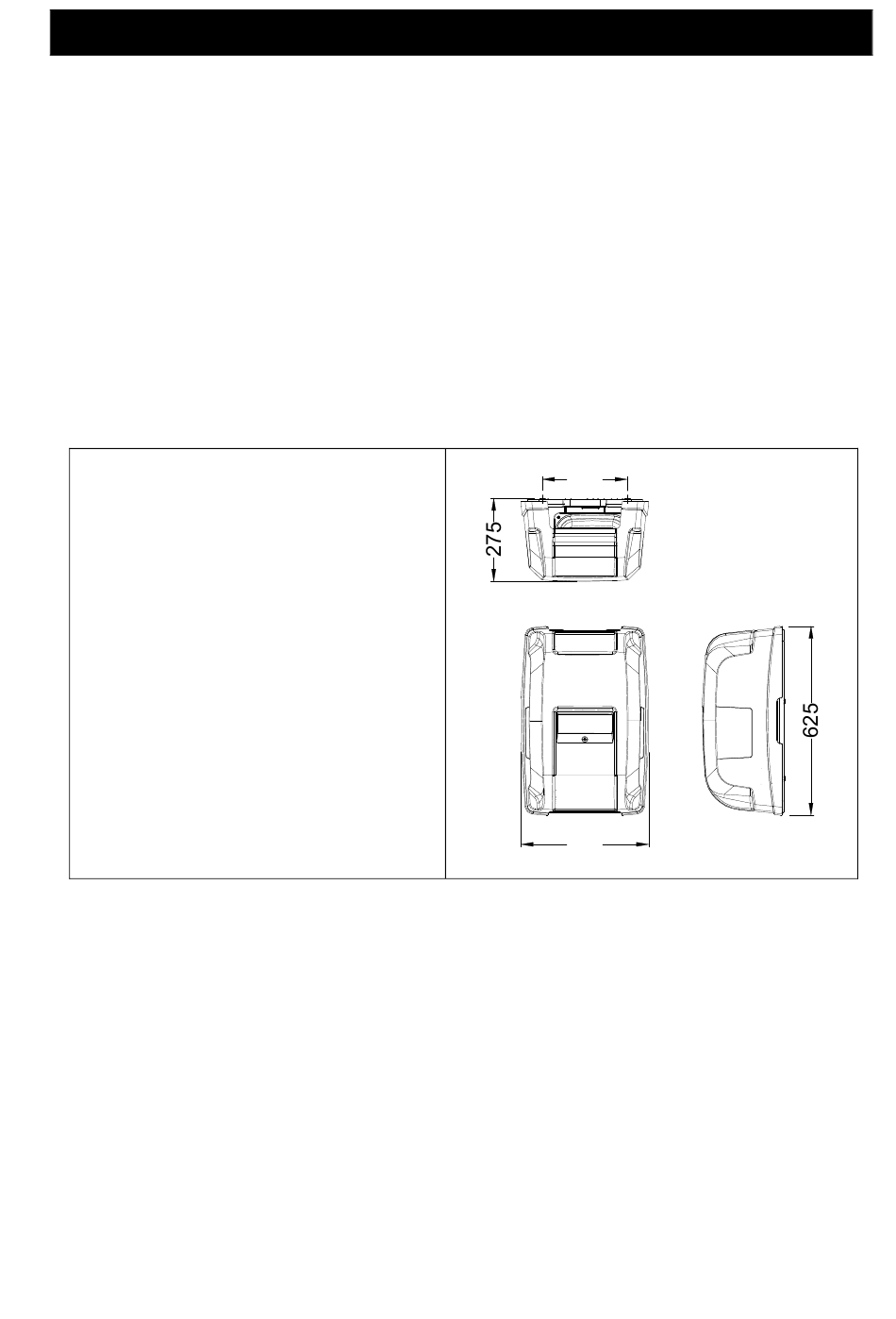

Figure 3: Dimensions of the PP Cabinet
