The minimum delay between pre-alarm and load disconnect is 30 seconds.
Charge disconnect output
The Charger output is normally high and becomes free floating in case of
imminent cell over voltage or over temperature. Maximum current: 10mA. The
Charger output is not suitable to power an inductive load such as a relay coil.
The Charger output can be used to control: The remote on/off of a charger, a
Cyrix-Li-Charge relay, a Cyrix-Li-ct Battery Combiner.
(Note: in some cases an interface cable will be needed, please see the
manual.)
A non-inverting or inverting on/off cable may be required, please consult the
appendix
Remote on/off input
The remote on/off input controls the charging via the alternator, while the BMS
functionality will remain active regardless of the remote on/off state.
The remote on/off can also be used as system on/off switch. Can be
conifugred via the VictronConnect.
The System on/off consists of two terminals: Remote L and Remote H.
A remote on/off switch or relay contact can be connected between L and H.
Alternatively, terminal H can be switched to battery plus, or terminal L can be
switched to battery minus.

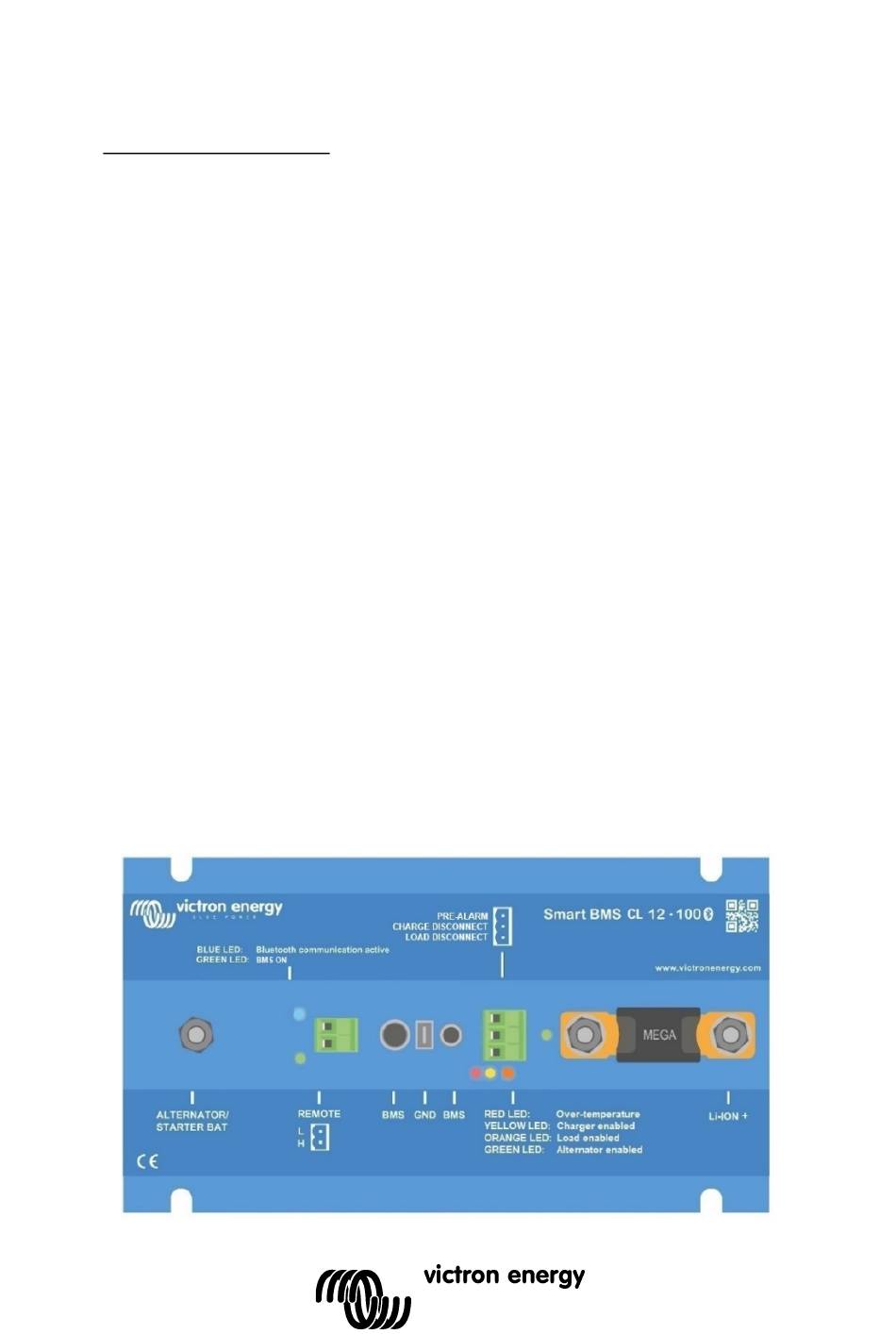

LED indicators (from left to right)
Green: Smart BMS CL 12V/100A is active
•
Blue: blinking – Bluetooth broadcasting, ON – connection establised
•
Red: Over-Temperature protection of the Current limiting 12V Smart
•
BMS
Yellow: Charge disconnect output is enabled
•
• Orange: Load disconnect output is enabled
Green: Alternator Charging
•
