m&h Inprocess RWP38.41 Manuel D'instruction page 29

Radio-wave Touch Probe RWP38.41

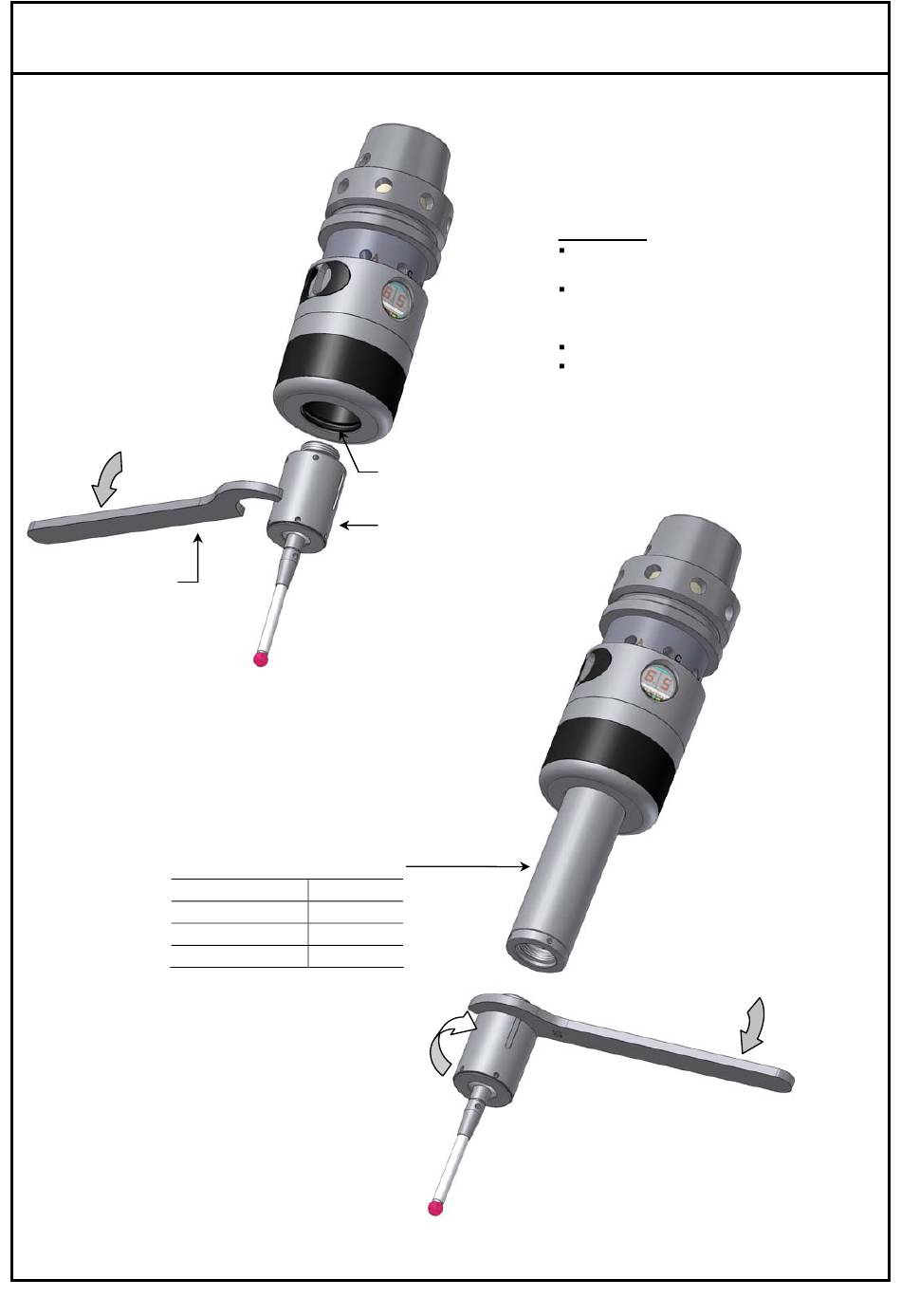

Measuring Unit Extension
out
C-Spanner
#2951
Order Number
21.00-VE50
21.00-VE100
21.00-VE200
Extension max. 400 (15.75")
O-Ring 24x2 Viton
#2074
Measuring unit
Extension
Length
50 (1.96")
100 (3.93")
200 (7.87")
M=12Nm (8,8 lbf.ft)
10
Procedure:
Clean and dry the probe body well
before removing the probe !
When screwing in the probe,
ensure the O-Rings are properly
seated !
Align probe to the spindle centre!
Calibrate probe
in
