m&h Inprocess RWP38.41 Manuel D'instruction page 28

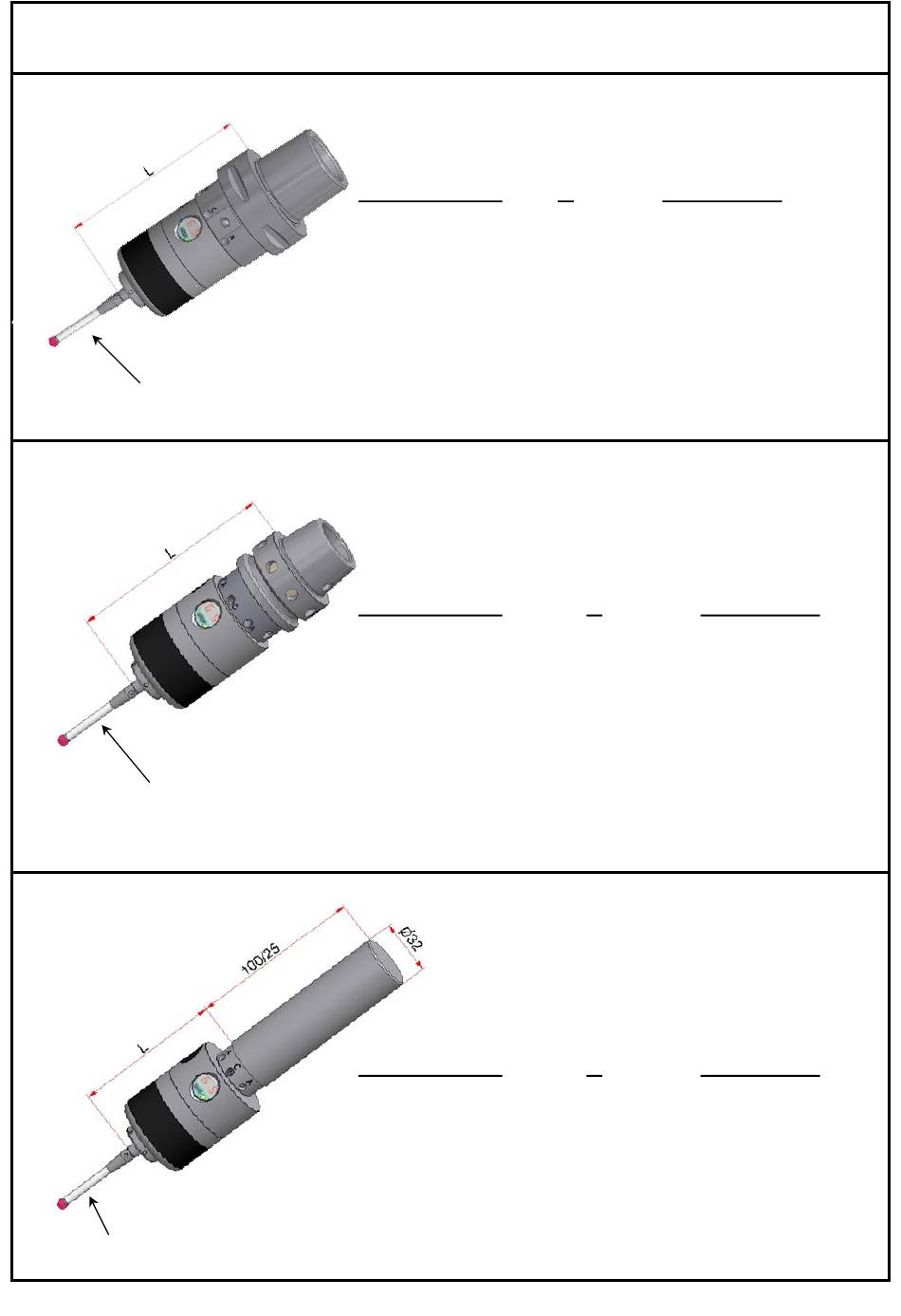

Radio-wave Touch Probe RWP38.41
Probe with Shank Coromant Capto
Stylus not included
Probe with Shank THERMO-LOCK
Stylus not included
Probe with Other Shanks
Stylus not included
Available Shanks:
Coromant Capto C4
Coromant Capto C5
Coromant Capto C5
Coromant Capto C6
Coromant Capto C6
Coromant Capto C8
Coromant Capto C8
Other shanks upon request
®
(patented)
Available Shanks:
DIN69893 HSK-E32
DIN69893 HSK-E40
DIN69893 HSK-E50
DIN69893 HSK-A63
Patented THERMO-LOCK
of the HSK and heat transfer from the spindle to the probe. This
ensures that the probe delivers stable, precise results even by large
temperature differences between the spindle and the HSK.
Available Shanks:
D20-D8-L25-B
D20-D32-L100-B
NIKKEN-NC5-46
NIKKEN-NC5-63
D20-Erowa-ITS
9
L: Order Number:
110 (4.33") 38.41-C4
110 (4.33") 38.41-C5
147,5 (5.81") 38.41-C5-147,5
116 (4.57") 38.41-C6
147,5 (5.81") 38.41-C6-147,5
116 (4.57") 38.41-C8
147,5 (5.81") 38.41-C8-147,5
L: Order Number:
110 (4.33") 38.41-HSK32E-TI
110 (4.33") 38.41-HSK40E-TI
116 (4.57") 38.41-HSK50E-TI
116 (4.57") 38.41-HSK63A-TI
®
Technology prevents thermal expansion
L: Order Number:
89 (3.50") 38.41-D8-L25
86 (3.39") 38.41-D32-L100
141,5 (5.57") 38.41-NC5-46
141,5 (5.57") 38.41-NC5-63
115 (4.53") 38.41-ITS
