m&h Inprocess RWP38.41 Manuel D'instruction page 26

Radio-wave Touch Probe RWP38.41

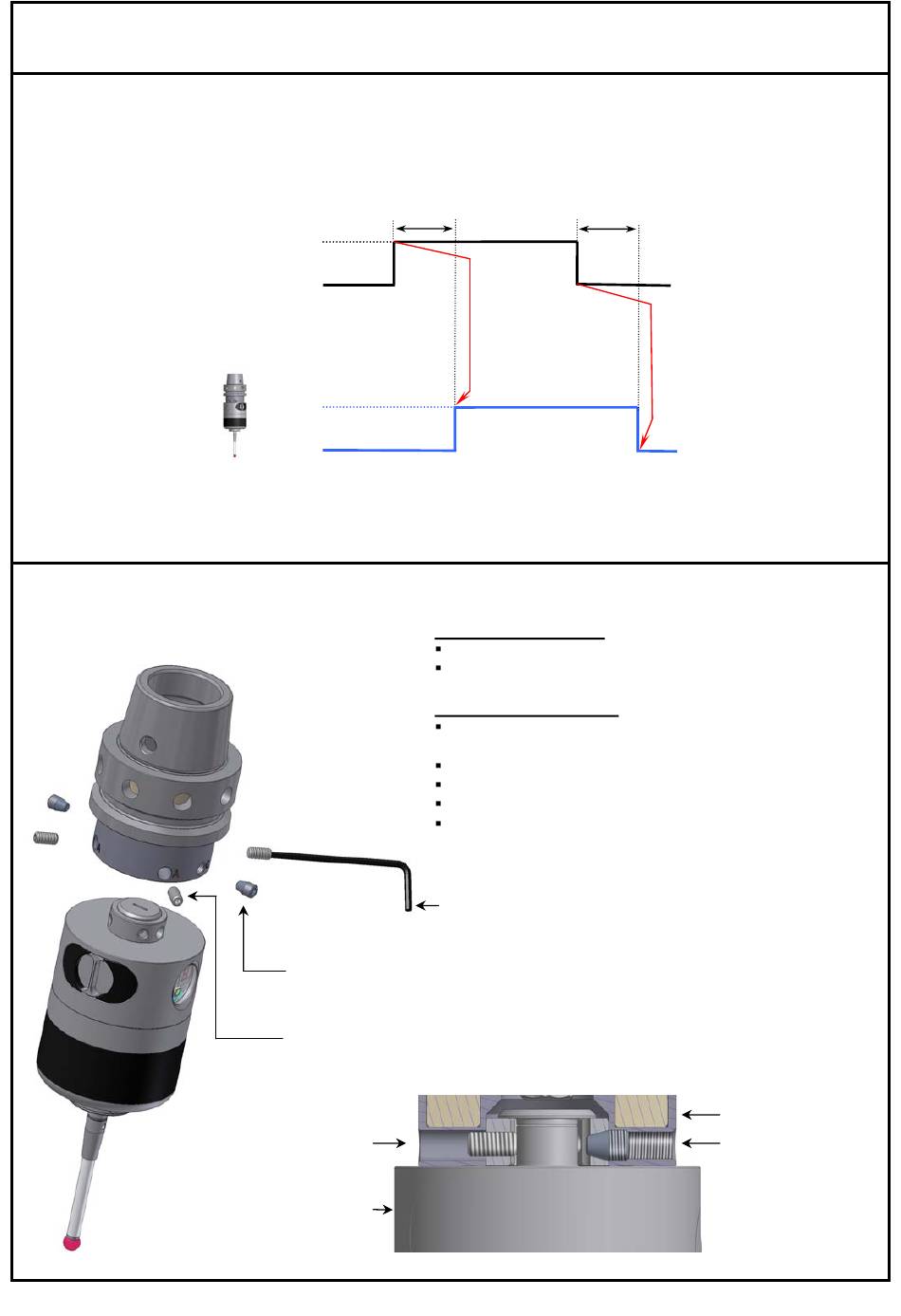

Probe ON / OFF Procedure
The bi-directional probe will be activated and deactivated by the Radio-wave Receiver RWR95.40.
After setting the M-Code the probe is activated in <1,5 s and deactivated in <1,5 s after resetting.
M-Code
Mounting the Shank
Adjustment screw „A" in thread
<1,5s
>10VDC
0V
ON
OFF
C = Clamping Screw AF2.5mm (2x)
#1351 M=2 Nm (1.47 lbf.ft)
A = Adjustment Screw AF2mm (4x)
#1352 M=1.5 Nm (1.1 lbf.ft)
Probe
<1,5s
Removing the shank:
Remove all „A" and „C" screws.
Remove shank.
Assembling the shank:
Carefully slide the shank onto the probe body. Align
the „C" threads with the conical bores.
Insert both clamping screws „C" and tighten lightly.
Insert adjustment screws „A".
Align the stylus to spindle center.(see page 3)
Calibrate the probe!
Hexagon Key
AF2mm #1097 / AF2.5mm #1346
7
Shank
Clamping screw „C"
in conical bore
