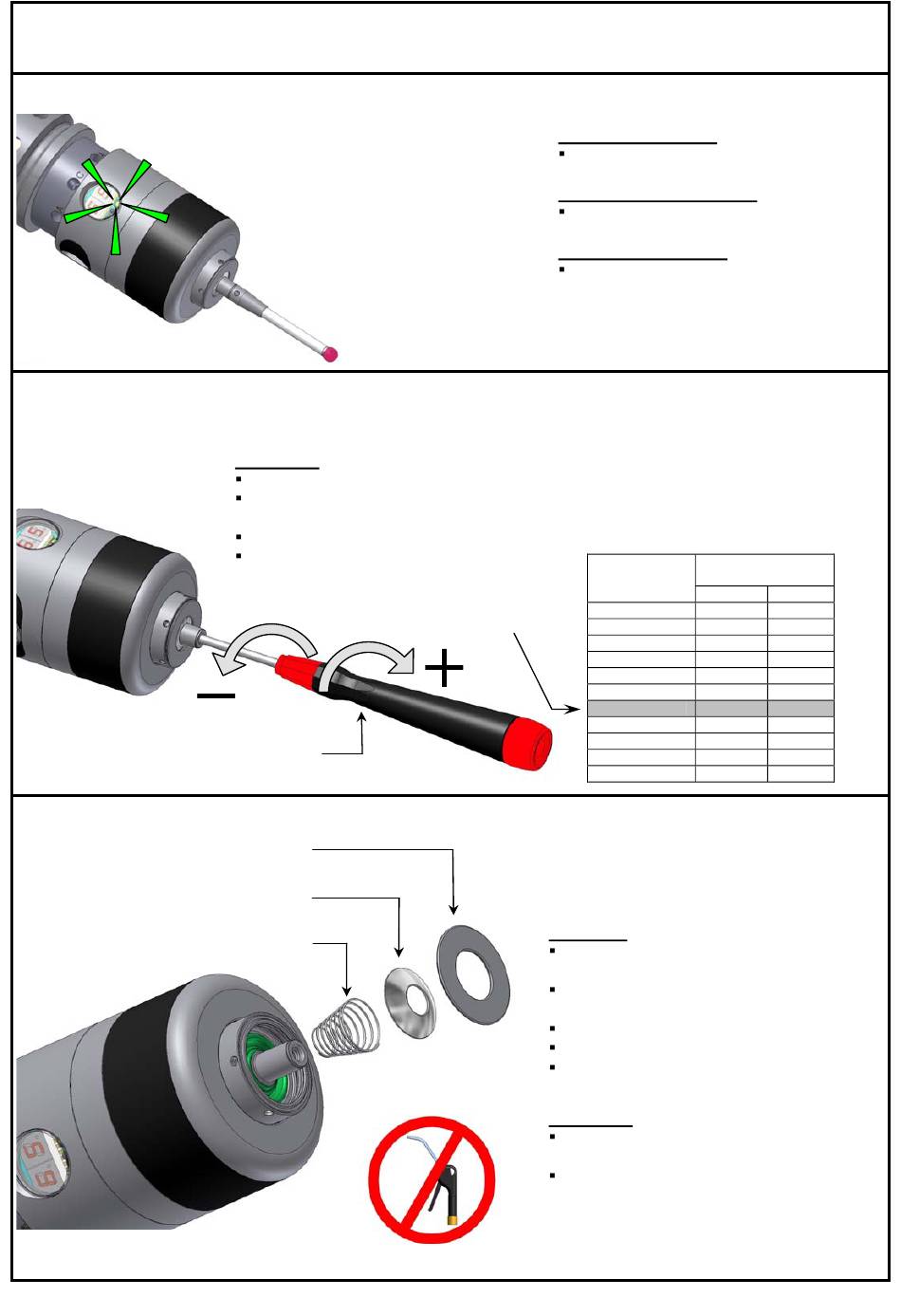

Radio-wave Touch Probe RWP38.41
Optical Status Display
Adjusting Trigger Force (patented)
In case of strong machine vibrations or heavy styli it is recommended to increase probe trigger force.
AF1.3mm #0227
Maintenance
Service cover #3240
with O-Ring 16x1 Viton #3455
Attention !
To adjust trigger force, remove stylus first!
The lowest trigger force is reached by turning
the Hexagon key counter-clockwise to its limit
Adjust stylus runout!
Calibrate probe!
Hexagon key
Metal eyelid
#2906
Conical spring
#2931
LED blinking green:
Probe is transmitting signals
LED blinking green / red:
Low battery warning
LED blinking orange:
Stylus deflected
Turns from
lowest force
Factory setting
Dirt may accumulate under the metal eyelid
To clean :
Remove service cover with eyelid and
conical spring by hand.
Clean probe and parts under
running water.
Close the probe by hand.
Align the stylus to spindle centre!
Calibrate probe!
Attention !
Do NOT use compressed air or
high pressure water to clean!
Do NOT use any sharp tools!
(these could damage the inner seal)
6
Trigger force with
50mm stylus in N
Z
min.0
2.5
0.30
1
3.5
0.41
2
4.5
0.52
3
5.5
0.63
4
6.5
0.74
5
7.5
0.85
6
8.5
0.96
7
9.5
1.07
8
10.5
1.18
9
11.5
1.29
max.10
12.5
1.40
X/Y
