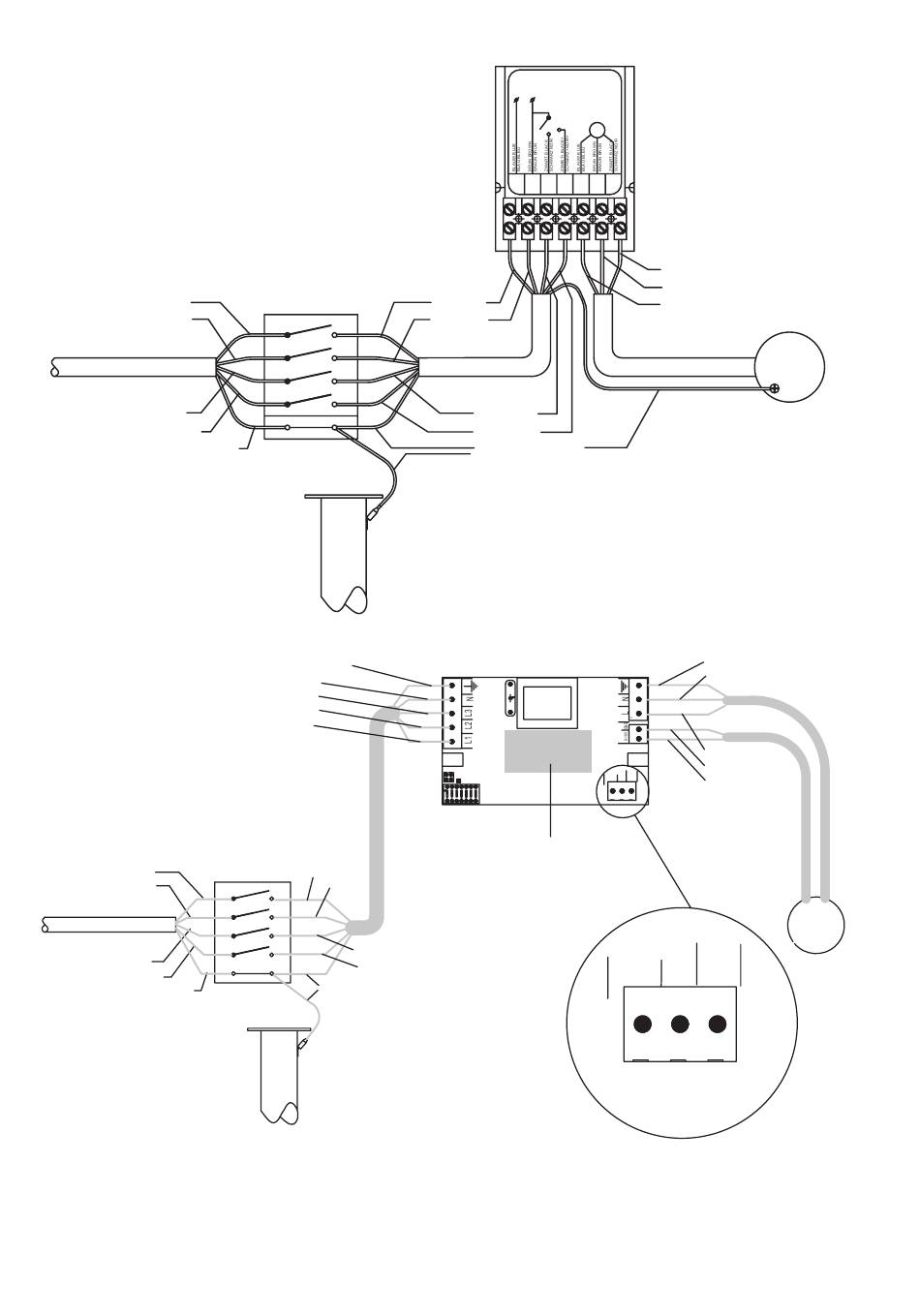

16. Wiring diagram

Blue
Brown
Network connection
Black
Grey
Yellow/Green
fig. 5
Blue
Brown
Network connection
Black
Grey
Yellow/Green
fig. 6
When connecting the RF / 0-10V controller, it is not necessary to connect
the wires to the operating switch number 6 (black) and number 8 (grey).
12 - EN
Condenser module
Operating switch
2 1
4 3
6 5
8 7
PE
Standpipe
RPM, VPM,
KPM
Yellow/Green
Blue
Brown
Black
Grey
Operating switch
Blue
Brown
2 1
4 3
6 5
8 7
Black
PE
Yellow/Green
Standpipe
RPM, VPM,
KPM
230V 50Hz
N L3
Blue
Brown
Black
Grey
Yellow/Green
C10
J1
J7
R28
SW1
R27
RPMe Rev3.00
RF raised PCB
(optional)
Grey
L = LAAG LOW NIEDRIG BAS
M = MIDDEN MEDIUM MITTEL MOYEN
H = HOOG HIGH HOCH HAUT
L H
M
M
1~
L2 L1 U1 Z U2
Black
Brown
Blue
Yellow/Green
Blue
L1
Brown
Blue
GND 10V
0-10V
J9
0-10V
Input
10V
GND
0-10V
M
Yellow
M
