Drain System - Maytag Performance Série Instructions D'installation

Custom cabinet installation:
7"
(178 mm)
4"
(102 mm)

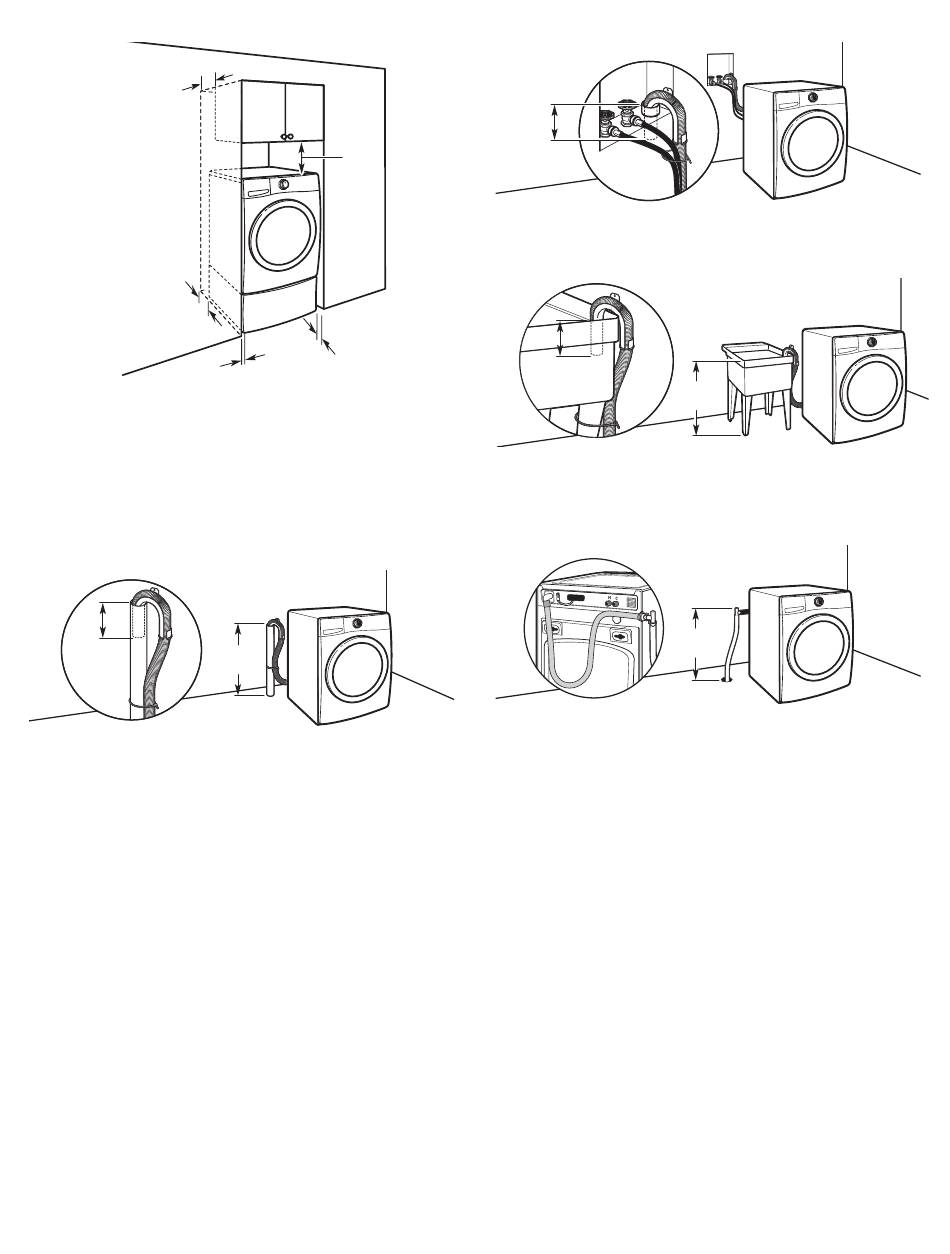

DRAIN SYSTEM

Drain system can be installed using a floor drain, wall standpipe,
floor standpipe, or laundry tub. Select method you need.
IMPORTANT:
To avoid siphoning, only 4
hose should be inside standpipe. Always secure drain hose with
beaded tie strap.
Floor standpipe drain system
4 1 "
/
2
(113 mm)
Minimum diameter for a standpipe drain: 2" (51 mm). Minimum
carry-away capacity: 17 gal. (64 L) per minute. A 1/4" (6 mm)
diameter to 1" (25 mm) diameter Standpipe Adapter Kit is
available (Part Number 3363920). Top of standpipe must be
at least 30" (762 mm) high; install no higher than 96" (2.4 m)
from bottom of washer. If you have an overhead sewer and
need to pump higher than 96 inches, a sump pump and
associated hardware are needed. See "Alternative Parts".
4
9"
(229 mm)
1"
1"
(25 mm)
(25 mm)
/ " (113 mm) of drain
1
2
30"
(762 mm)
Wall standpipe drain system
4 1 "
/
2
(113 mm)
See requirements for floor standpipe drain system.
Laundry tub drain system
4 1 "
/
2
(113 mm)
Minimum capacity: 20 gal. (76 L). Top of laundry tub must
be at least 30" (762 mm) above floor; install no higher than
96" (2.4 m) from bottom of washer.
Floor drain system
Floor drain system requires a Siphon Break Kit (Part Number
285834), 2 Connector Kits (Part Number 285835), and an
Extension Drain Hose (Part Number 285863) that may be
purchased separately. See "Alternative Parts". Minimum siphon
break height: 28" (710 mm) from bottom of washer. (Additional
hoses may be needed.)
30" 30"
(762 mm) (762 mm)
28" 30"
(710 mm) (762 mm)
