Operating Instructions
Please read these operating and safety instructions carefully and
completely. For your own safety, before using this equipment
check that the voltage is correct and that all handles and parts are
firmly secured. If you are uncertain about any aspect of using this
equipment contact your distributor.
Please Keep These Instructions
Model Evo380 Raptor Specifications
Motor (230v or 115v 50/60 Hz) (Watts):
RPM No Load (Speed 1) (min-1):
Recommended Maximum Duty Cycle (Minutes):
Sound Power Level (Under Load) (dB(A)):
Vibration Level (No Load) (ms2)
Weight (Kg):
Max Dimensions (Raised) (mm):
Maximum Box Cut Capacity 90
Square (mm):
Rectangle (mm):
Round (mm):
Wood (mm):
Maximum Box Cut Capacity 45
Square (mm):
Rectangle (mm):
Round (mm):
Wood (mm):
Blade Dimensions
Maximum Diameter (mm):
Bore Diameter (mm):
Thickness (mm):
Standard Equipment Supplied With Unit: 1 Jig Plate, 1 8mm Hex Wrench, 1
Safety Goggles, 1 Operating Instructions.
Ear and Eye protection MUST be worn whilst operating this
equipment. Do NOT touch the blade whilst it is in motion. Always
follow the Personal Protection Equipment (PPE) recommendations
whilst operating this tool.
This machine is designed specifically for cutting steel & other materials
using the appropriate TCT (Tungsten Carbide Tipped) blades. It should
NOT be modified and / or used for any application other than for which it
was intended, including powering other equipment.
Ensure that the total work area can be viewed from the operating position.
Use barriers to keep people away. Do not operate the tool in explosive
environments – power tools create sparks that may ignite flammable
materials or gases. Do not operate the tool in damp or wet conditions or
areas, as electric shocks may result. Always use both hands to operate
the tool. Always ensure that the material you are working on is securely
clamped.
This tool is equipped with an approved cord and plug for its intended
•
Country of use. The green and yellow conductor in the cord is the
earth / ground wire, never connect this to a live terminal.
Remove plug from power supply before replacement of the blade,
•
making adjustments or other maintenance work.
We recommend the use of genuine Evolution brand blades.
•
Inspect the machine and blade before each use and do not use
•
deformed, cracked, worn or otherwise damaged blades.
Ensure the blade is correctly mounted and do not stop by hand.
•
Only use blades rated at 1500rpm or higher.
•
Always keep the power cord away from moving parts of the tool.
•
Important
H 575 W 355 D 600
0
0
2
2200
1450
30
112.4
1.39
23
120 x 120
95 x 180
130
125 x 175
89 x 89
78 x 110
105
125 x 125
380
25.4
2.4

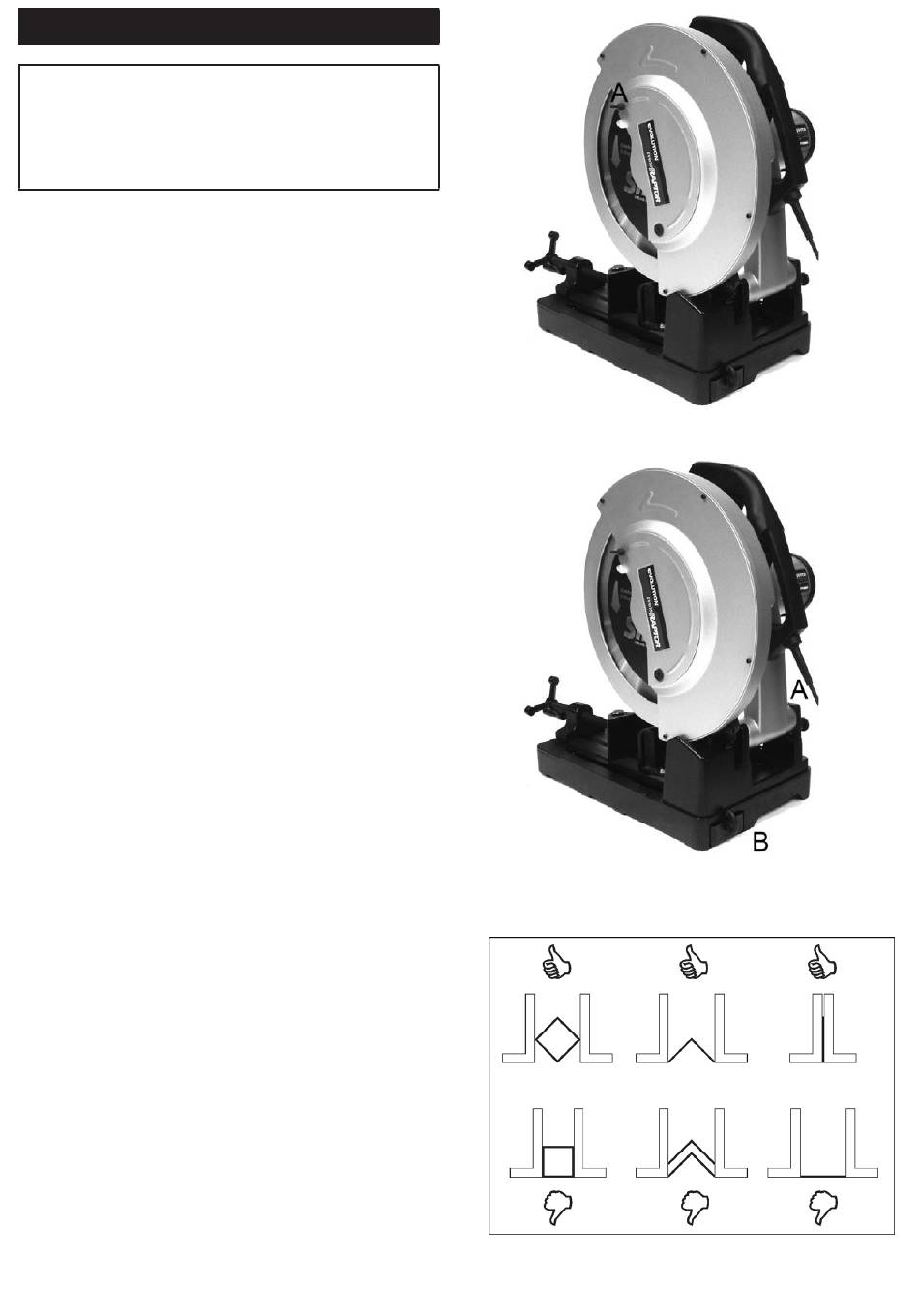

Fig. 1.
Fig. 2.
Fig. 3.
33
