Hella Rallye 3000 Compact Mode D'emploi page 17

GB ENGLISH

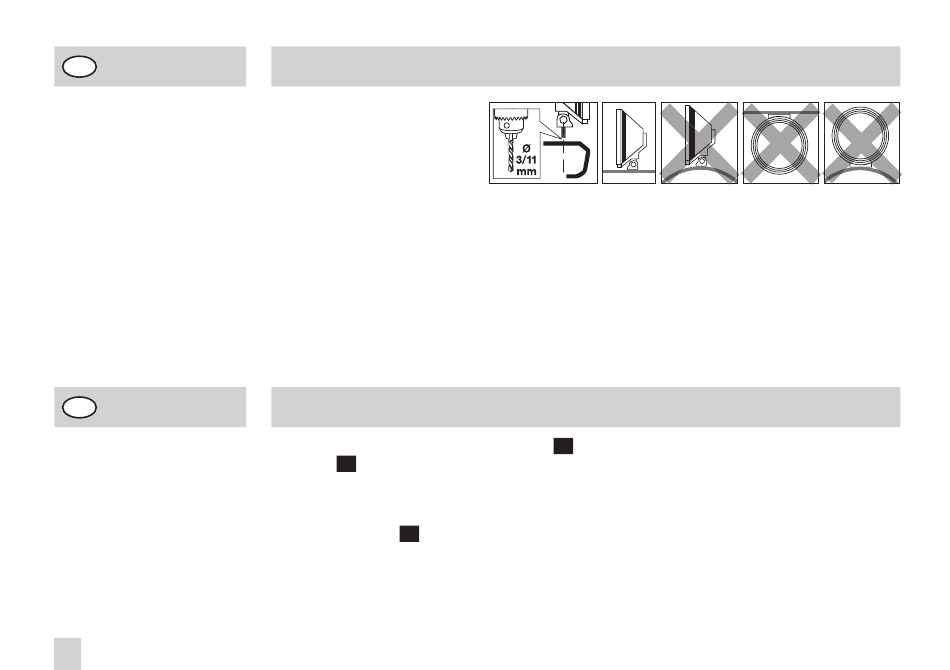

Headlamps must not vibrate
or jut above the bonnet and
must be attached
symmetrically.
Choose a straight surface
for the fitting position and
mark the attachment points.
Pilot-drill with the 3 mm bit
and then drill through using
the 11 mm bit. Seal the
GB ENGLISH
Install the relay with the
connection terminals
facing downwards and
splash-proof. If required
and permitted by legal
regulations, install a
switch on the dashboard.
Route and connect the
cables according to the
circuit diagram. When
17
Fitting: Rallye 3000 Compact, 3000 Compact Celis: Page 4
drilled metal parts with
corrosion protection agent.
Pre-fit the bracket. Open the
housing and insert the bulb.
Do not touch the bulb with
your bare fingers! Use a
tissue or similar.
Put the housing together.
Screw the bracket and
housing together and route
the cables carefully.
Electrical connection:
Rallye 3000 Compact, 3000 Compact Celis: Page 5
wired according to circuit
diagram I the auxiliary
lamps are switched on
together with the existing
driving lamps. According
to circuit diagram II the
auxiliary lamps are switched
in addition to the existing
headlamps via a separate
switch. According to circuit
Screw the headlamps to the
vehicle (using a two-point
bracket if necessary).
diagram III the CELIS®
position lamps are
connected and switched
on together with the
parking light. Test the lighting
system. Fasten the supply
cables securely in place.
Align the headlamps and
tighten all screws.
To guarantee an optimum
beam pattern, make sure
that the "TOP" marking
on the headlamp insert
is always facing the top.
