Appendices

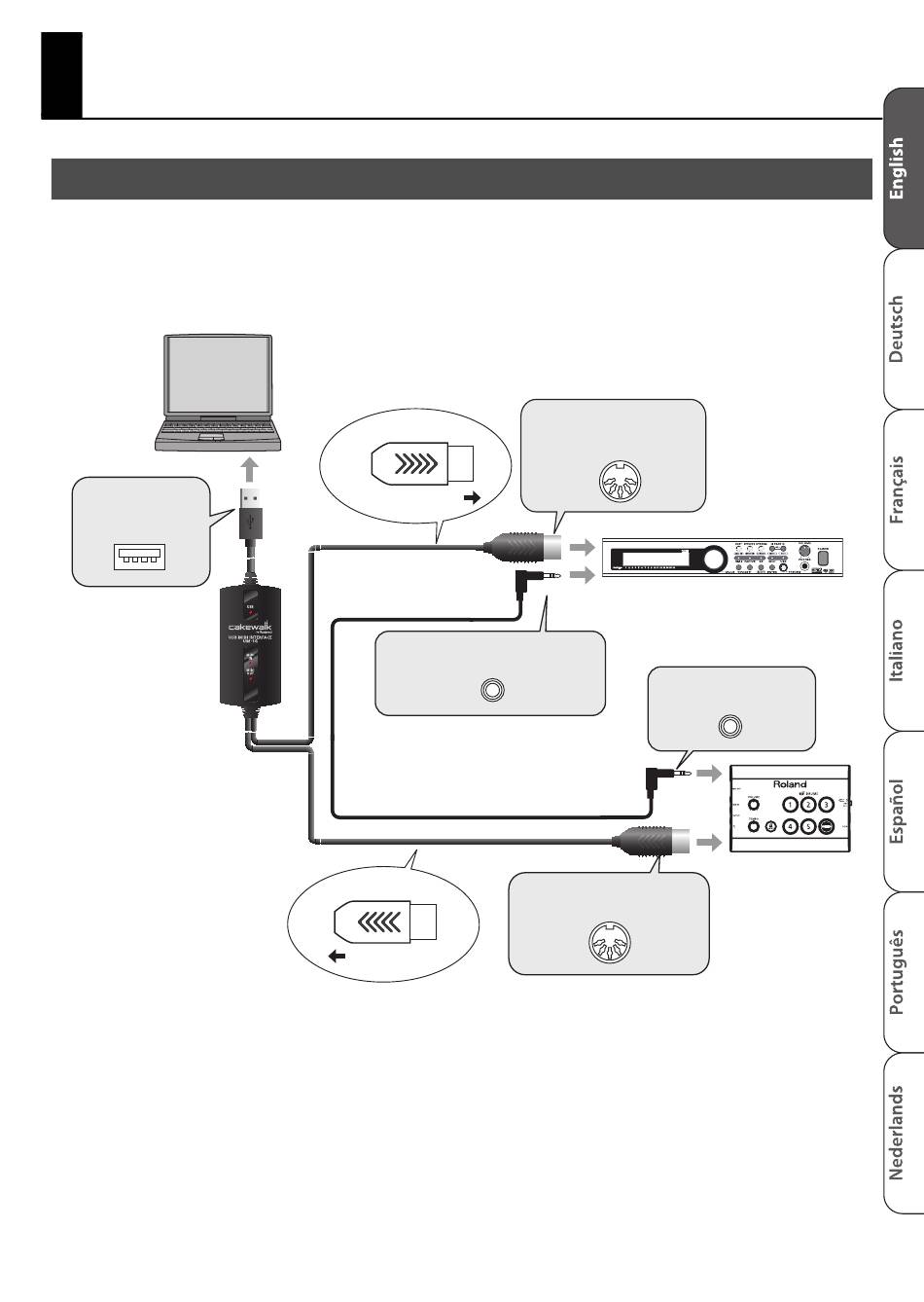

Connection Example with a Separate External MIDI Sound Module

If you connect a GM2 compatible MIDI sound module, you'll be able to listen to the model
performance with higher-quality sound.
* Before making connections to other equipment, you must minimize the volume of all
equipment in order to prevent malfunctions or speaker damage.
fig.connect-iout_60
Connect to
the computer's
USB connector.
UM-1G
MIDI device settings
1.
Start up HD-1Drum Tutor.
2.
Choose the menu item Setup | Set Up Audio/MIDI Devices.
3.
As the Output, choose External MIDI Device.
4.
Click [OK].
MIDI OUT Cable
Message Flow
Connect to the Audio Out
jack of the MIDI sound module.
Audio Cable (included)
MIDI IN Cable
Message Flow
Connect to the MIDI IN
connector of the MIDI
sound module.
Connect to the MIX IN
jack of the HD-1.
Connect to the MIDI OUT
connector of the HD-1.
MIDI Sound Module
HD-1
19
