3.

Mounting

CAUTION
Risk of injury caused by a falling lumi-
naire.
Personal injury and material damage.
X Use only fastening elements of the
manufacturer's.
X Mount luminaire on a suitable
mounting surface.
NOTE for USA and Canada: When mount-
ing a luminaire with mains connection
(NEMA 5-15 connector), the table clamp
included in the delivery must be used.
3.1

Mounting the fastening element

NOTE: When mounting an arm-mounted
luminaire (RFD...) or flexible-tube luminaire
(RFF...) on a vertical surface, a wall mount-
ing bracket must be used. The wall mount-
ing bracket can be found in Waldmann's
range of accessories.
20

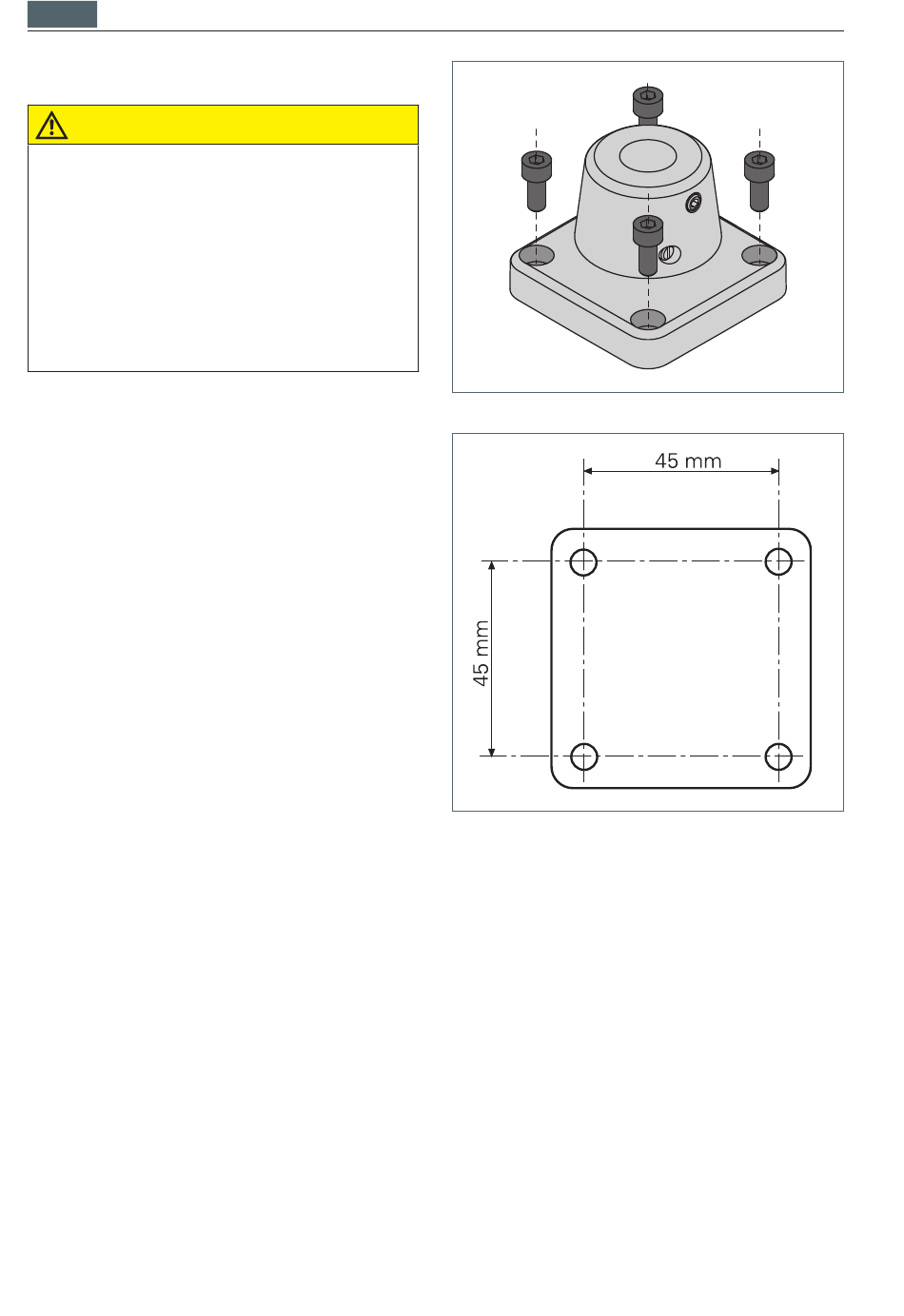

Fig. 1: Fastening element
Fig. 2: Hole pattern.
NOTE: Observe the hole pattern, see Fig. 2.
X Screw the fastening element to the
mounting surface using four suitable
screws, see Fig. 1
Mounting
