Installation Instructions

Ductless Recirculation

Ductless recirculation is intended for applications where an exhaust duct work is not possible to be
installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood.
Fumes and exhaust from cooking are drawn and filtered by a set of optional charcoal filters. The air is
then purified and re-circulated back within the home.
We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new
duct work, if possible. The hood is most effective and efficient as an exhaust hood. Only when the
exhaust option is not possible should you recourse to converting the hood into a recirculating hood.
When converted to be a recirculating hood, a set of charcoal filters are required on top of its standard
grease filter set. Order according to its part number below. The standard mesh filters are intended to
capture residue from cooking, and the optional charcoal filters help to purify fumes exhausted from
cooking for recirculation.
Recirculating Kit Installation (required if no ducting is used)
The recirculating kit is only compatible with CBI-290C and CBI-600A single internal blowers. Kit
includes the charcoal filters and the air diverter plate.
Hood Model
ALU

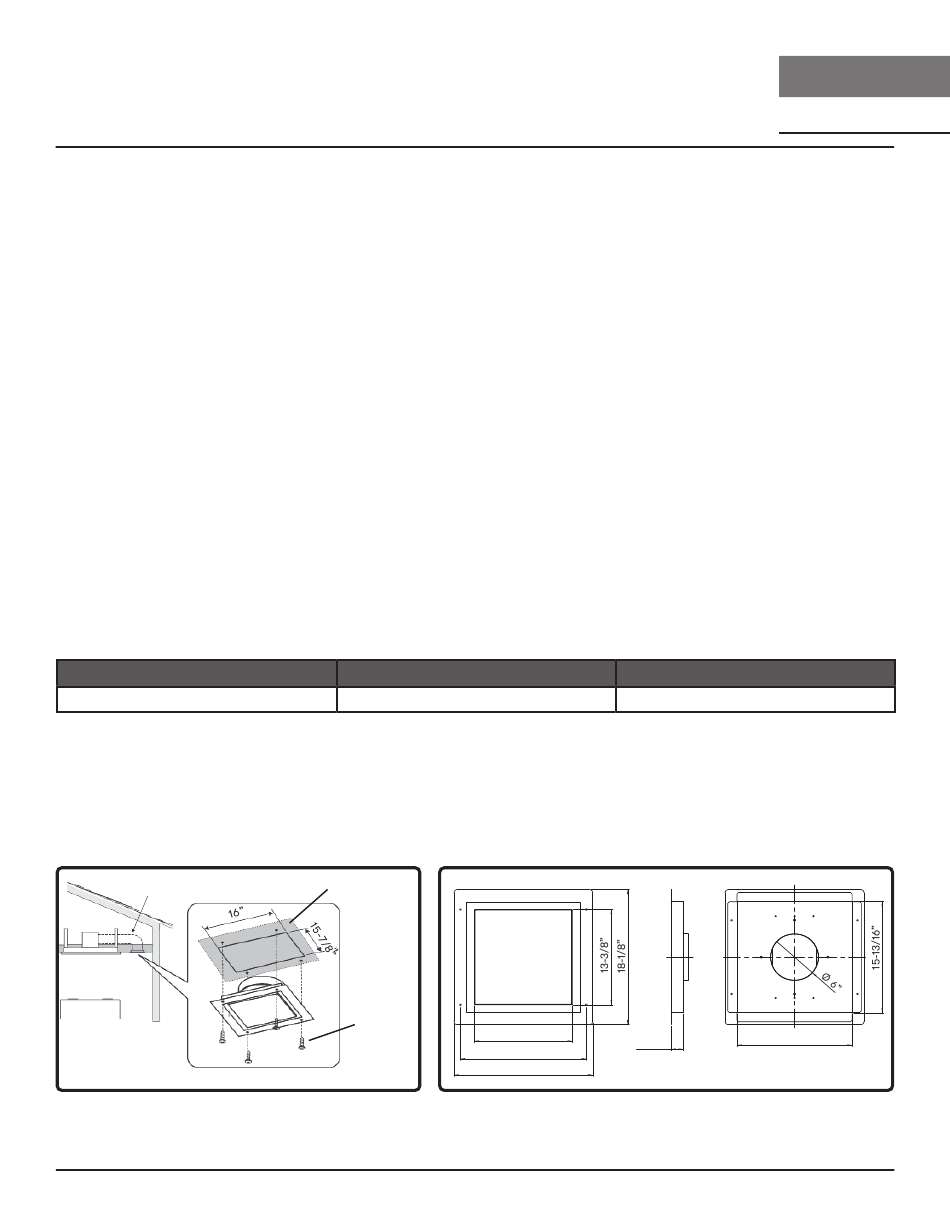

1. Install the air return vent to the ceiling by (4) M4 x 31 screws, FIG. S.
2. Additional ceiling framing may be required around air diverter to hold the weight of the vent. Refer
to FIG. T, if needed.
3. Install charcoal filter behind air diverter plate. Install air diverter plate.
6" Round Ducting
(purchased separately)
Air Return Vent must be a minimum of 6 feet from hood
FIG. S
20
Part Number
ZRC-01LX
CEILING
(4) MOUNTING
SCREWS M4x31
13-3/8"
17-1/16"
18-1/8"
6" Round Ducting
Filters in Package
(purchased separately)
Air Return Vent must be a minimum of 6 feet from hood
1-9/16"
FIG. T
Lux Use, Care, and Installation Guide
D E S I G N E R
L U X
I S L A N D
CEILING
1
(4) MOUNTING
SCREWS M4x31
15-3/4"
