RAC 2200
GB
MAINTENACE AND CHANGE OF SIZE
The extended utilization of the riveting tool can cause the slipping of the clamps on the nail due to the deposited impurities.
For this reason, it is necessary to lubricate the clamps after having cleaned them . However, if clamps are worn out and as a
consequence their working is jeopardized, replace them.

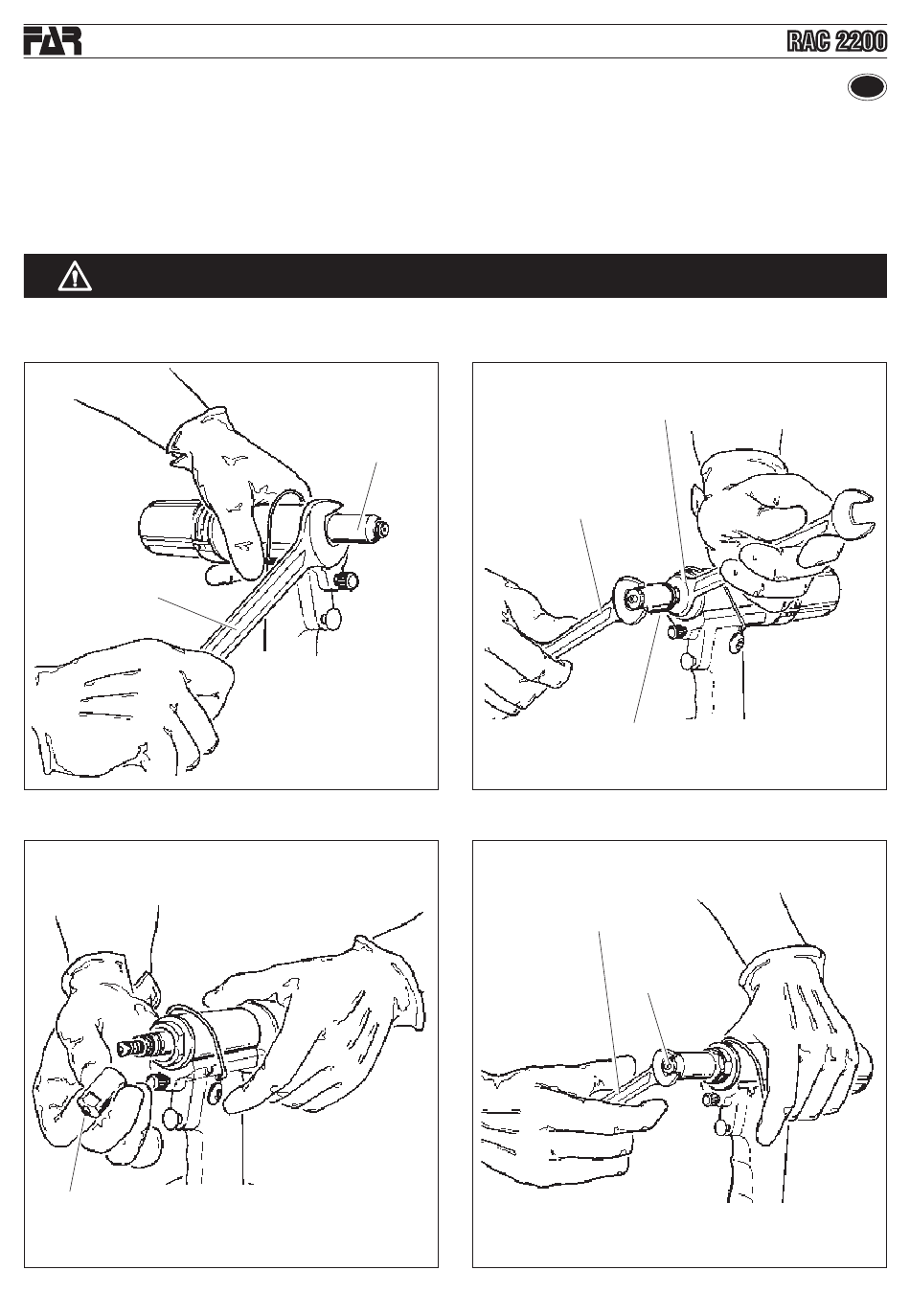

First remove the head which carries the nozzle (A), by means of a standard spanner of 27 mm. Then, by using two standard
spanners of 11 mm and 16 mm, remove the chuck (B) and extract the clamps (C).
When replacing the nozzle (D), we recommend to use a 12 mm standard spanner .
WARNING!!! DESCONNECT AIR FEED WHEN PERFORMING THOSE OPERATIONS
11 mm
A
16 mm
27 mm
B
12 mm
D
C
