English
Observe the minimum water submersion when using level control devices. It is imper-
ative to prevent trapped air in the hydraulics housing and the pipe system and remove
any trapped air using suitable ventilation systems. Protect the submersible pump from
frost.
6.2.

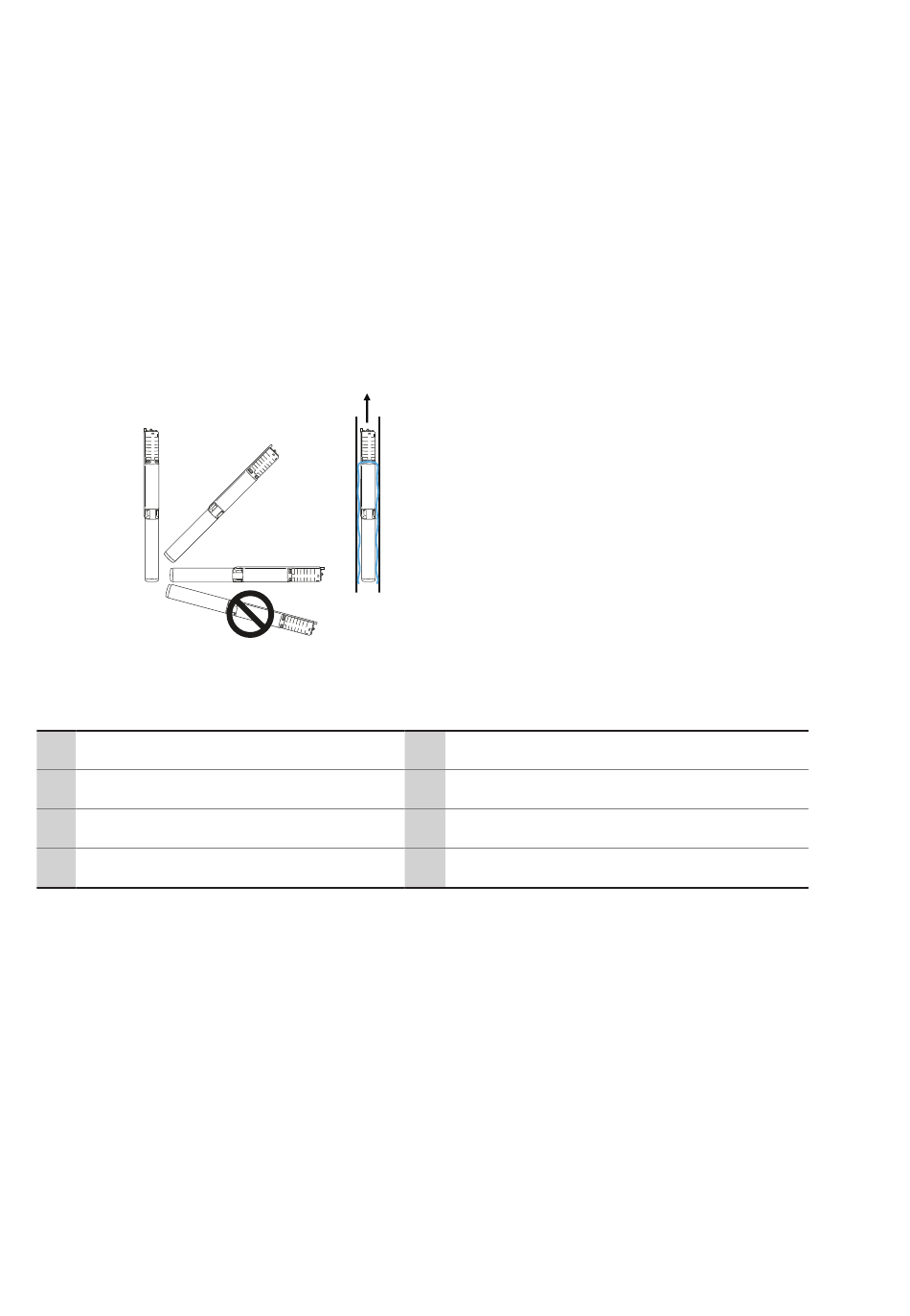

Installation types

• Vertical stationary installation, immersed. If the submersible pump is not installed in a
well, it is necessary to install a cooling shroud.
• Horizontal stationary installation, immersed – only in conjunction with a cooling shroud!
The pressure output of the submersible pump must always be above the
horizontal axle!
Examples of installation with solar power supply (Fig. 2)
Fig. 2: Installation with solar power supply
1 Actun OPTI-MS..
2 Solar panel
3 Connection cable (power supply)
4 Pressure pipe
62
5 Water tank
6 Float switch
7 Signal cable
8 MS Control switchgear (optional accessory)
INSTALLATION
