General Instructions

Nozzle Installation:

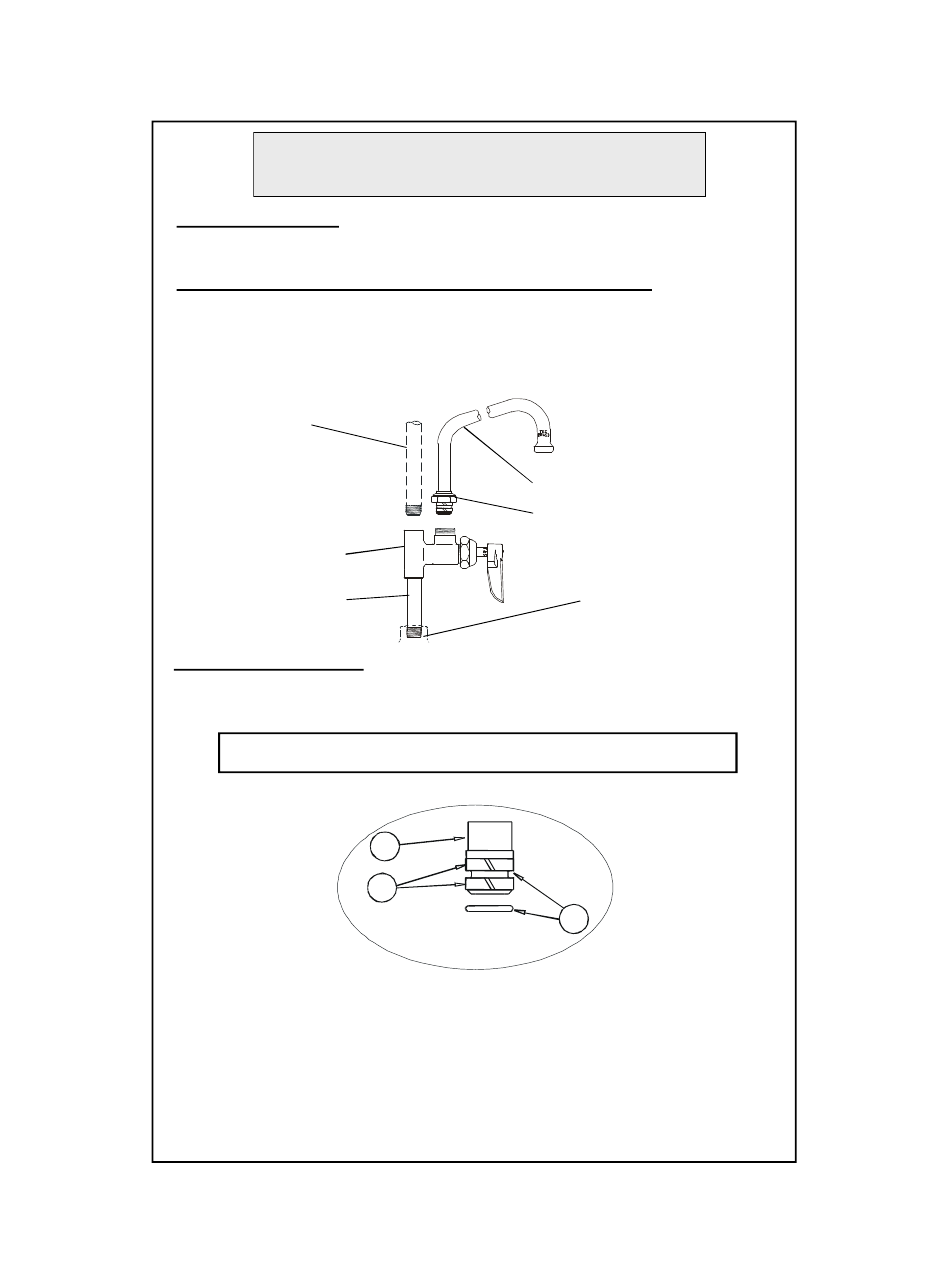

Note: Nozzles should be installed first. See diagram below:
If installing to an existing rigid pre-rinse unit or base faucet
1. Shut off water supply and drain lines. Remove existing riser pipe from base
faucet. Apply teflon tape or pipe joint compound to threaded ends of no.3.
2. Place no.3 into existing base faucet and tighten firmly by hand.
pre-rinse
riser
2
3
To install Swing Nozzle:
3. Insert no.7 into no.2 and rotate to desired position at sink.
Note: See Repair Kit 011643-45 for replacement of no.12 and no.13.
4. Tighten no.8 firmly with a wrench.
5. Apply teflon tape or pipe joint compound to existing pre-rinse riser pipe and
place into no.2 and tighten by hand
6. Turn on water supply and check for leaks.
7
8
10
12
Enlarged View
4
existing base
faucet
13
