Marmitek OBSERVER 25 Mode D'emploi page 5

C1 C2 C3 C4
13
A
B
C
OBSERVER25
17 16 15 14 18
A) B+
D
B) Audio in
C) Audio B+
E
D) Video in
E) Audio out
F) N.C
F

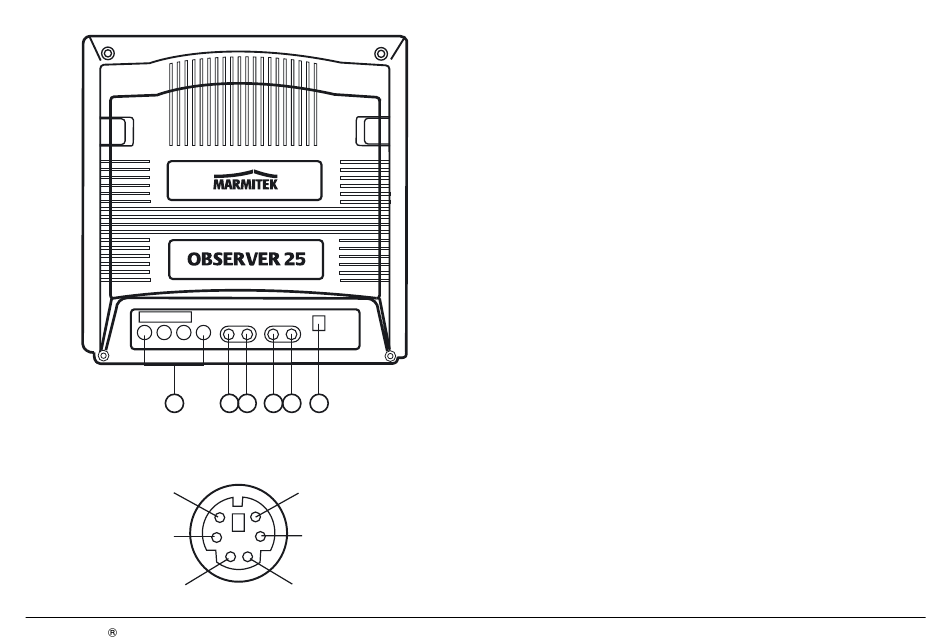

REAR VIEW MONITOR UNIT
13. CAMERA PLUG&PLAY INPUT CONNECTORS
Connect up to 4 cameras by these easy plug and play connectors.
14. VIDEO INPUT
Receives video signal from VCR / time lapse recorder for playback
15. AUDIO INPUT
Receives audio signal from VCR / time lapse recorder for playback
16. AUDIO OUTPUT
Transmits audio signal to VCR / time lapse recorder for recording.
17. VIDEO OUTPUT
Transmits video signal to VCR / time lapse recorder for recording.
Also used to send the camera signals to a second monitor (second
monitor will act as "slave" and will display a copy of the information
as displayed on the main monitor. Switching between camera
images is done on main monitor, slave monitor will follow).
18. AC POWER CORD
5
