Multiplex Roxxy BL-Outrunner Notice D'utilisation page 2


Roxxy BL-Outrunner
®
Modern, 14-pole ROXXY®-BL Outrunner motor for marine model
applications. Due to its design, this motor does not require a gear-
box. Ut is a high-torque, high efficiency motor with a wide perfor-
mance envelope and suitable for direct-drive propeller in marine
applications.
Typical application
Marine models to 600g
Installation advice
- The retaining screws must not be too long: ensure that they can-
not damage the motor's internal components.
- Ensure that the external rotor bell is free to rotate.
- Don't use damaged propellers.
- Take care to avoid dirt, water or metal particles getting inside the
motor case.
- If the motor spins in the wrong direction, swap over any two of the
three wires from the speed controller to the motor.
Recommended LiPo batteries
ROXXY Power LiPo-batteries
®

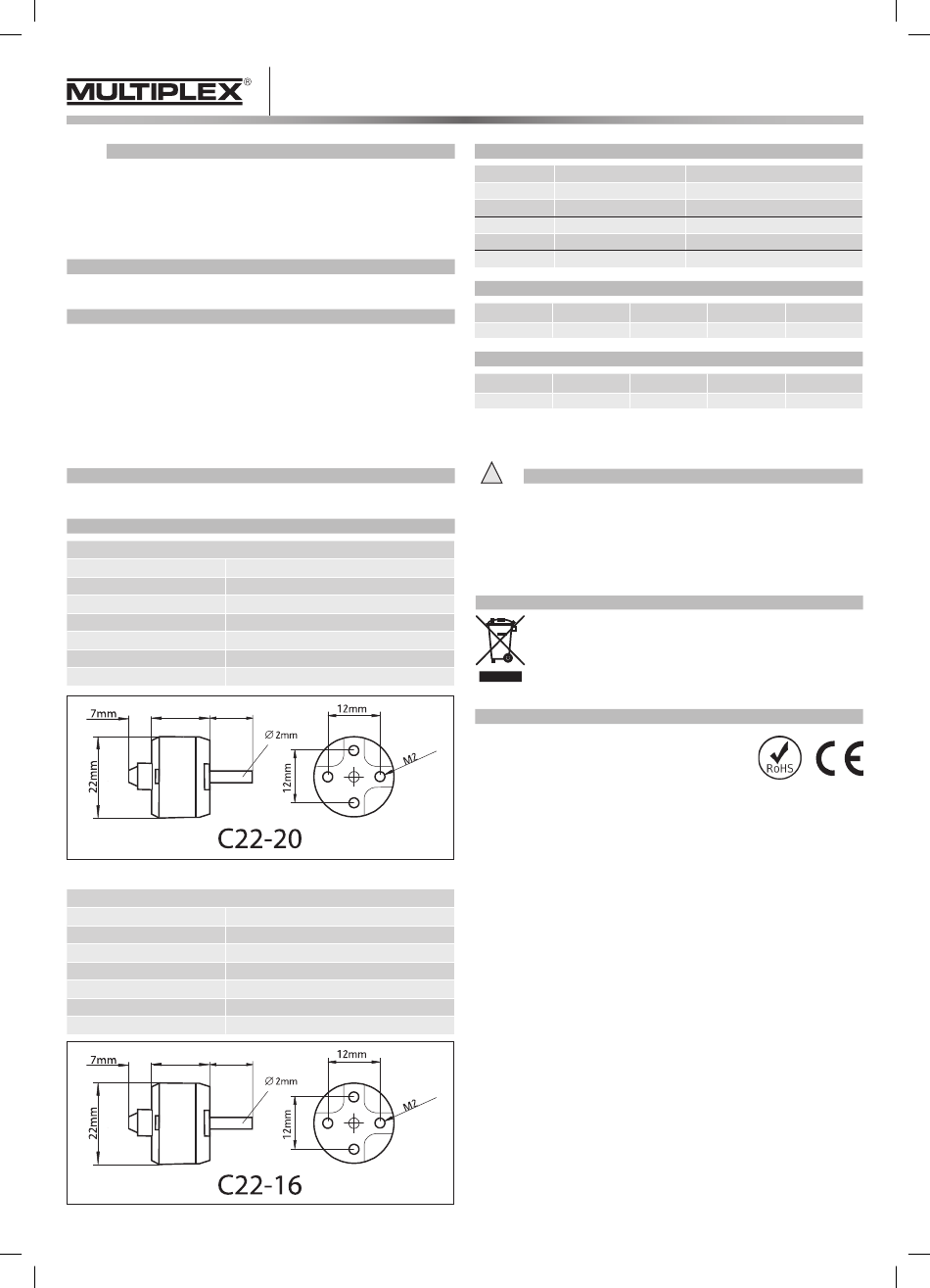

Specification
C22-20-1330kV No. 31 4949
Voltage 7-12 Volt / 2-3 LiPo
Rotational speed 1330 rpm / V
8 A (5 min)
Load current
Max. load current 10 A (60 secs.)
Dimensions Ø 22 x 19,5 mm
Weight approx. 28 g
Shaft diameter 2 mm
19,5mm
10mm
Replacement shaft #31 2220
C22-16-800kV No. 31 4986
Voltage 10-25 Volt / 3-6 LiPo
Rotational speed 800 rpm / V
3 A (5 min)
Load current
Max. load current 5,3 A (60 secs.)
Dimensions Ø 22 x 15,5 mm
Weight approx. 19 g
Shaft diameter 2 mm
15,5mm
10mm
Replacement shaft #31 2216
Roxxy® BL-Outrunner – Bedienungsanleitung,
Operating instructions, Notice d'utilisation –
Suitable Roxxy-BL-controllers
Shippropeller Data No. 31 4949
Shippropeller Data No. 31 4986
- Whenever you are installing or otherwise handling the motor or speed control-
ler, be sure to observe the instructions supplied with those units.
- It is also important to study the instructions provided with the LiPo battery
before using them for the first time.
- Whenever you are working on the model - making adjustments, carrying out
maintenance etc. - keep well clear of the rotational plane of the propeller, as
it constitutes an injury hazard. Do not let anybody stand in front of the model
when the engine is running.
DISPOSAL
CE CONFORMITY DECLARATION
This product is compliant with directive 2011/65/EU - RoHS.
Errors and omissions excepted.
Technical modifications reserved.
Copyright Multiplex Modellsport 2015
Duplication and copying of the text, in whole or in part, is only permitted with the prior written
approval of Multiplex Modellsport GmbH & Co.KG
Multiplex Modellsport GmbH & Co. KG
Westliche Gewerbestr. 1
75015 Bretten
Germany
Multiplex Service: +49 (0) 7252 - 5 80 93 33
www.multiplex-rc.de
No. Type
31 8645 810
31 8646 820
31 8627 908
31 8628 918
31 8630 930-6
Voltage (V) No. of cells Shippropeller
7,4 2S-LiPo 30 mm 3-Blatt
Voltage (V) No. of cells Shippropeller
11,1 3S-LiPo 30 mm 3-Blatt
!
Safety notes for operating the motor
This symbol means that it is essential to dispose of electrical and elec-
tronic equipment separately from the domestic refuse when it reaches the
end of its useful life. Take your unwanted equipment to your local com-
munal collection point or recycling centre. This applies to all countries of
the European Union, and to other European countries with separate waste
collection systems.
No. 31 4949, 31 4986
LiPo cellcount / Load current (A)
3S / 10A
3S / 20A
3S / 8A
3S / 18A
6S / 30A
Load current (A) Static thrust (g)
2,3 230
Load current (A) Static thrust (g)
1,3 190
