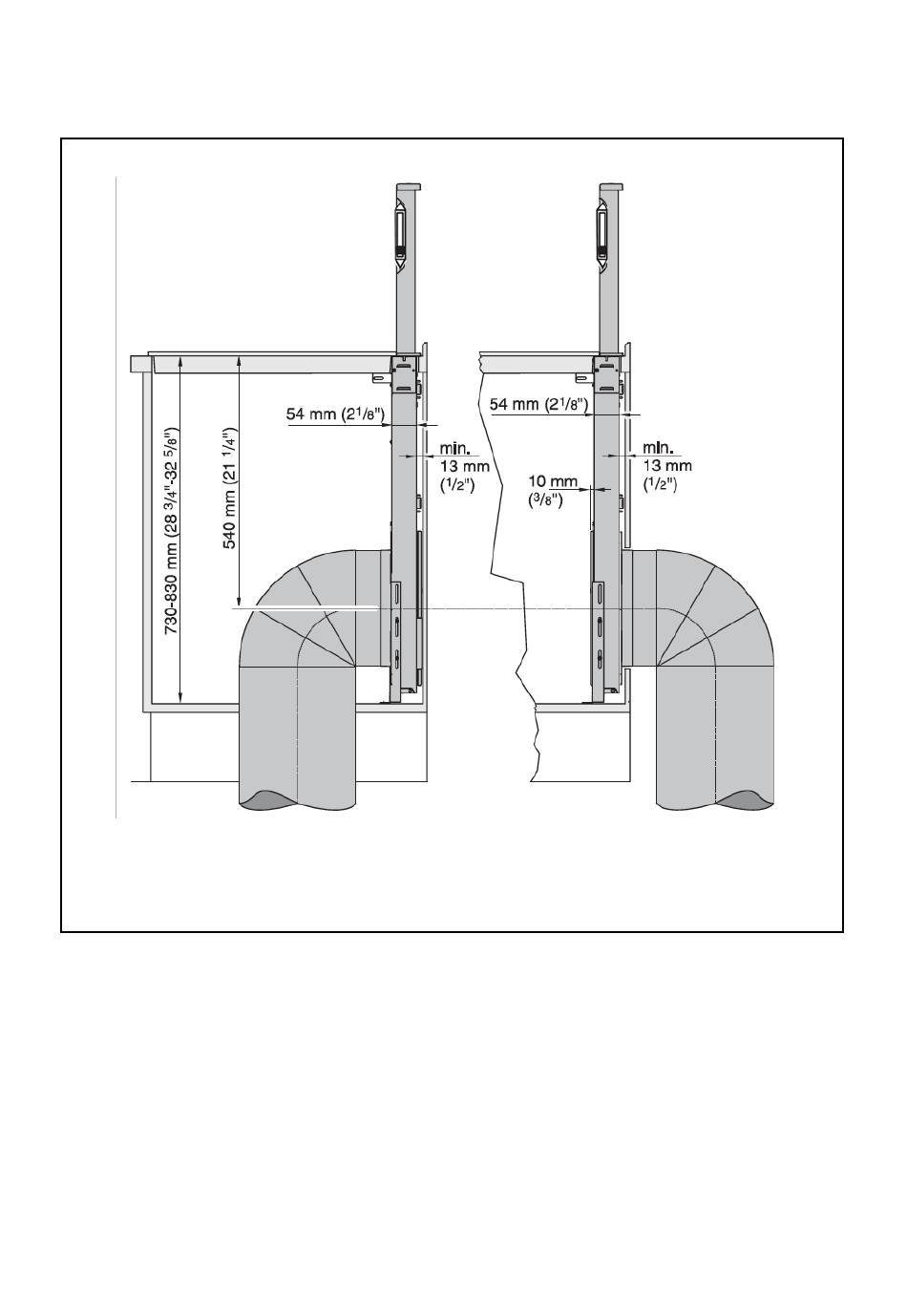

PRODUCT DIMENSIONS
Installation using the remote blower
FIGURE 8
NOTE:
Left side of diagram shows the remote blower ducting
to the outside in front of the Scirocco Plus
Right side of the diagram shows the remote blower
ducting to the rear of the Scirocco Plus. Note that
the back must be accessible to install ductwork.
Note: When using with cooking applainces other
than cook tops which require reversing the
motor box to the back, a 3/4" clearance on front
of the Scirocco is needed to clear a duct plate
and front edge of the down draft body.
Version 3/15 - Page 10
