REMOVING THE OVEN DOOR

The oven door can easily be removed as
follows:
– Open the door to the full extent (fig.
7.12a).
– Open the lever "A" completely on the
left and right hinges (fig. 7.12b).
– Hold the door as shown in fig. 7.12.
– Gently close the door (fig. 7.12) until
left and right hinge levers "A" are
hooked to part "B" of the door (fig.
7.12b)
– Withdraw the hinge hooks from their
location following arrow "C" (fig.
7.12d).
– Rest the door on a soft surface.
– To replace the door, repeat the above
steps in reverse order.
42

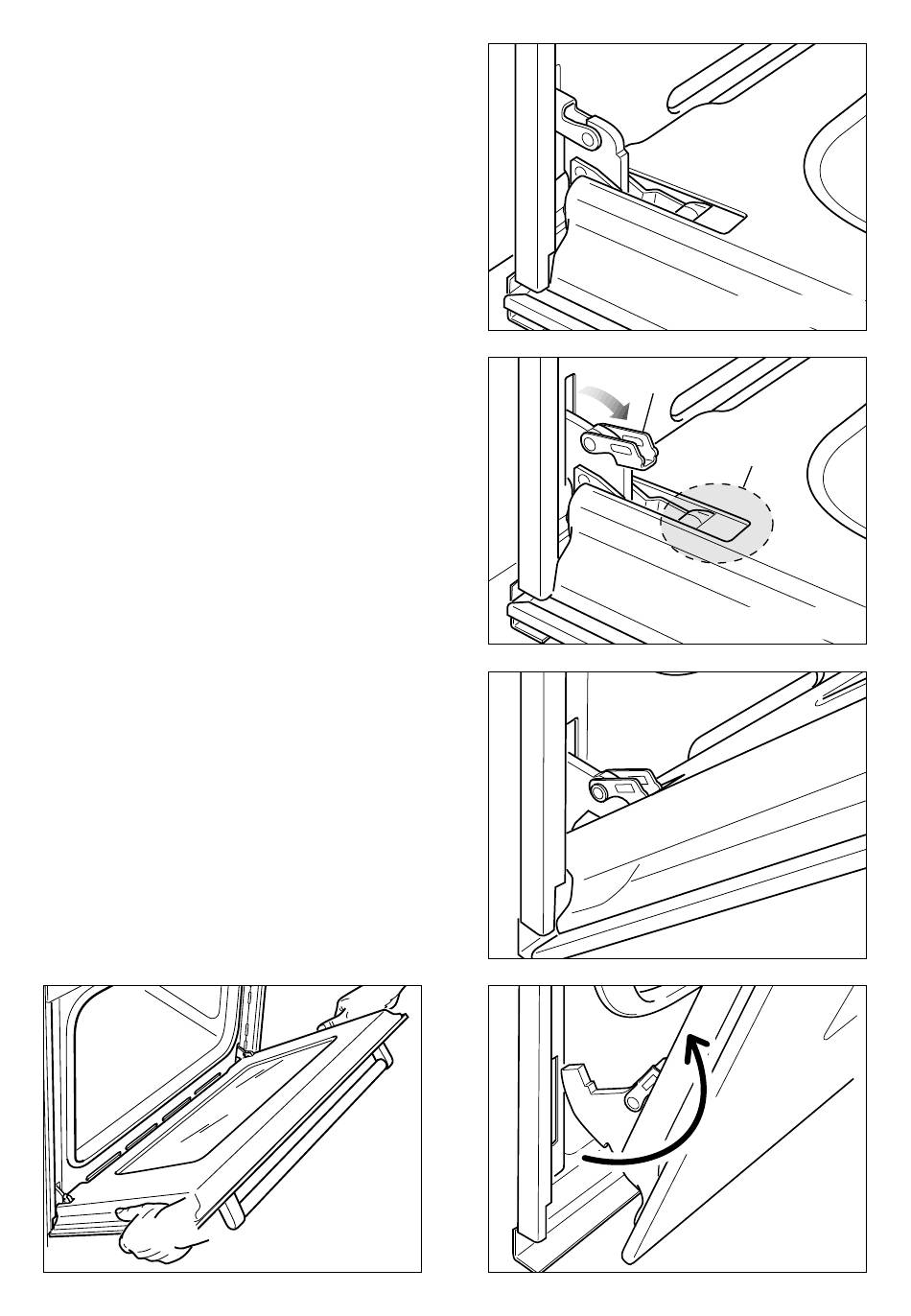

Fig. 7.12
Fig. 7.12a
A
B
Fig. 7.12b
Fig. 7.12c
C
Fig. 7.12d
