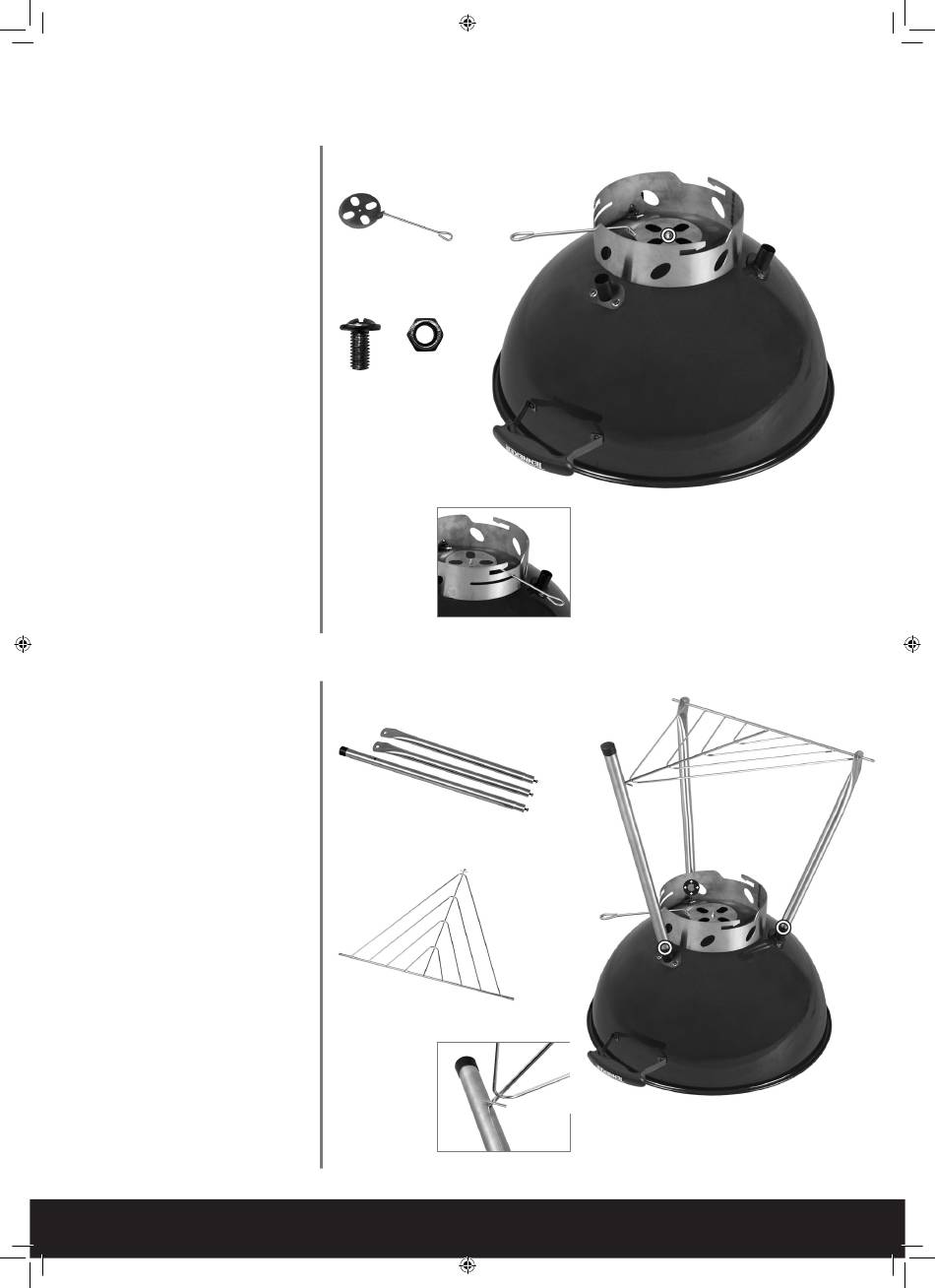

Ventilation Lever 1x
Screw M5x12 1x
Nut M5 1x
Slide the handle of the ventilation
lever through the slot in the ash pan
bracket.
Attach the ventilation lever to the
firebox by use of M5x12 screw and
Leg 3x
Bottom Shelf 1x
Unscrew the screws and washers
from the legs. They are required
again in step 8.
Slide the bottom shelf into the hole
on the longest leg. The tip of the
button shelf must point upwards.
Slide the remaining two legs on the
bottom shelf and attach the 3 legs
to the 3 leg brackets.
The longest leg must be above the
140 | ENGLISH
5
1x
Ventilation Lever
1x
1x
M5x12
Nut
M5 nut.
6
3x
Leg
1x
Bottom Shelf
handle.
