Using the TEAC Global Site

You can download this Owner's Manual and the Reference
Manual necessary for this unit from the TEAC Global Site (http://
teac-global.com/).
Open the TEAC Global Site (http://teac-global.com/).
1.
In the TASCAM Downloads section, click the desired
2.
language to open the Downloads website page for that
language.
NOTE
If the desired language does not appear, click Other
Languages.
Click the product name in the "Search by Model Name"
3.
section to open the Downloads page for that product.
Select and download the Owner's Manual and the Reference
4.
Manual that are needed.

User registration

Customers in the USA, please visit the TASCAM website (http://
tascam.com/) to register as a user online.
6
TASCAM IF-AN16/OUT

Names of parts

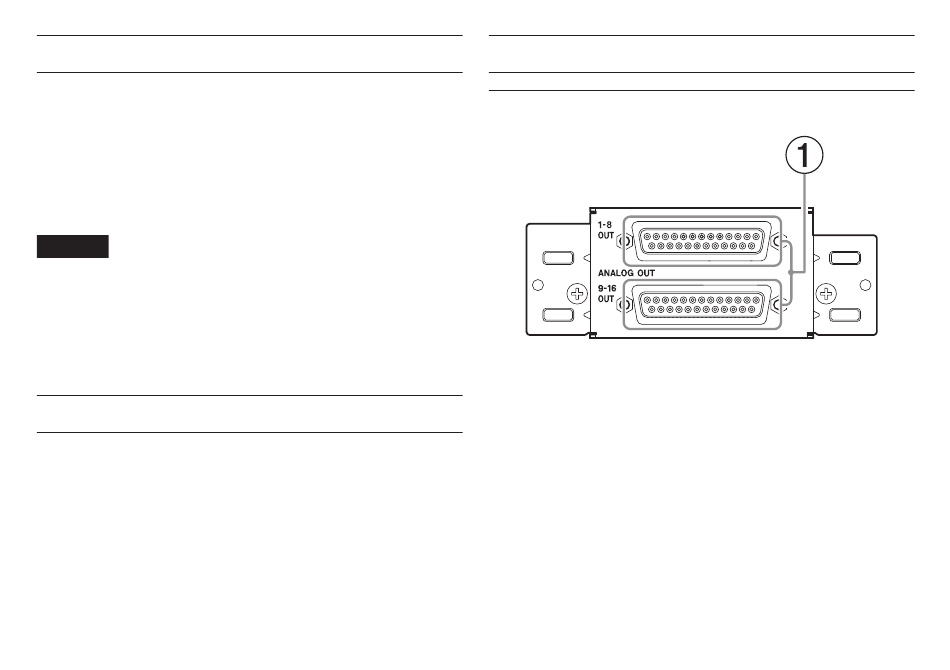

Rear panel

ANALOG 1-8/9-16 OUT connectors
1
These are 25-pin D-Sub balanced analog output connectors.
The standard output level can be set to +4 dBu (default) or
+6 dBu. Use analog output D-Sub multi-cables (1: GND, 2:
HOT, 3: COLD) to connect these to external balanced analog
input devices and transmit channels 1–8/9–16.
The pin assignments* of the OUT connectors are as follows.
(1-8 and 9-16 connectors follow the same pattern)
