Signal mode
The alarms are processed and transmitted by Nav Box to the display based on data read by the NMEA
2000, SAE J1939 and NMEA 0183 networks or the connected analog and digital sensors. The alarms
concern the engines on the network and other navigation parameters.
When an alarm is triggered, the pop-up with the alarm description appears on the display, the buzzer
sounds (if enabled) and the indicator light for the alarm type appears on Nav Control (see "Signals on
Nav Control" below).
All active alarms appear in the ALARMS > Active alarms page.
Note: an alarm configured as disabled is ignored and will not appear in the alarm list. The alarm signal is
inhibited during device configuration.

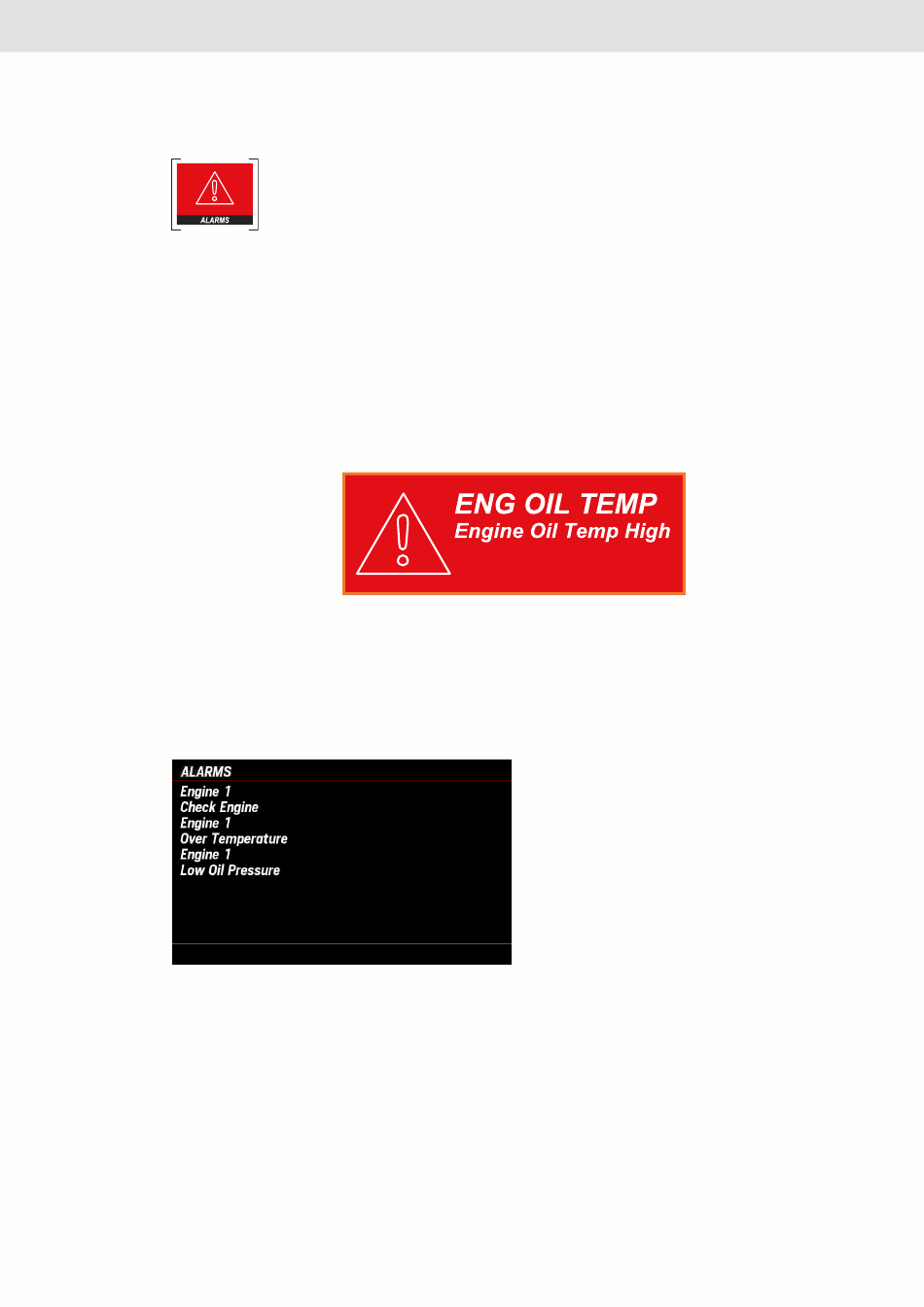

Active alarm page signals
Signals on Nav Control
When an alarm is triggered, the red indicator light appears on the screen of all the Nav Control devices
on the network. The indicator lights identify three types of alarms.
62 7" TFT display | Operating instruction v. 1.0 | © 2018 Continental Automotive Switzerland AG

Alarm management

Alarms are listed from the most to the least
severe.
