3. Product description

The low water level protection system (WMS) consists of a fail-safe, self-monitoring
signaling unit with periodic self-test and a sensor.
The signaling unit and sensor are connected by a two-wire signal cable of up to 10 m in
length.
The product combination detects and reports low water levels (lack of water).
Sensor
The sensor consists of a metallic electrode housing, a fitted plastic case and an electrode
rod that pulls out about 12 to 13 mm for functional testing.
The sensor is available in two versions:
Sensor DN 20:
f
Angled electrode housing with two (DN 20) welded fitting
(Ø i = 20 mm, Ø a = 26.5 mm)

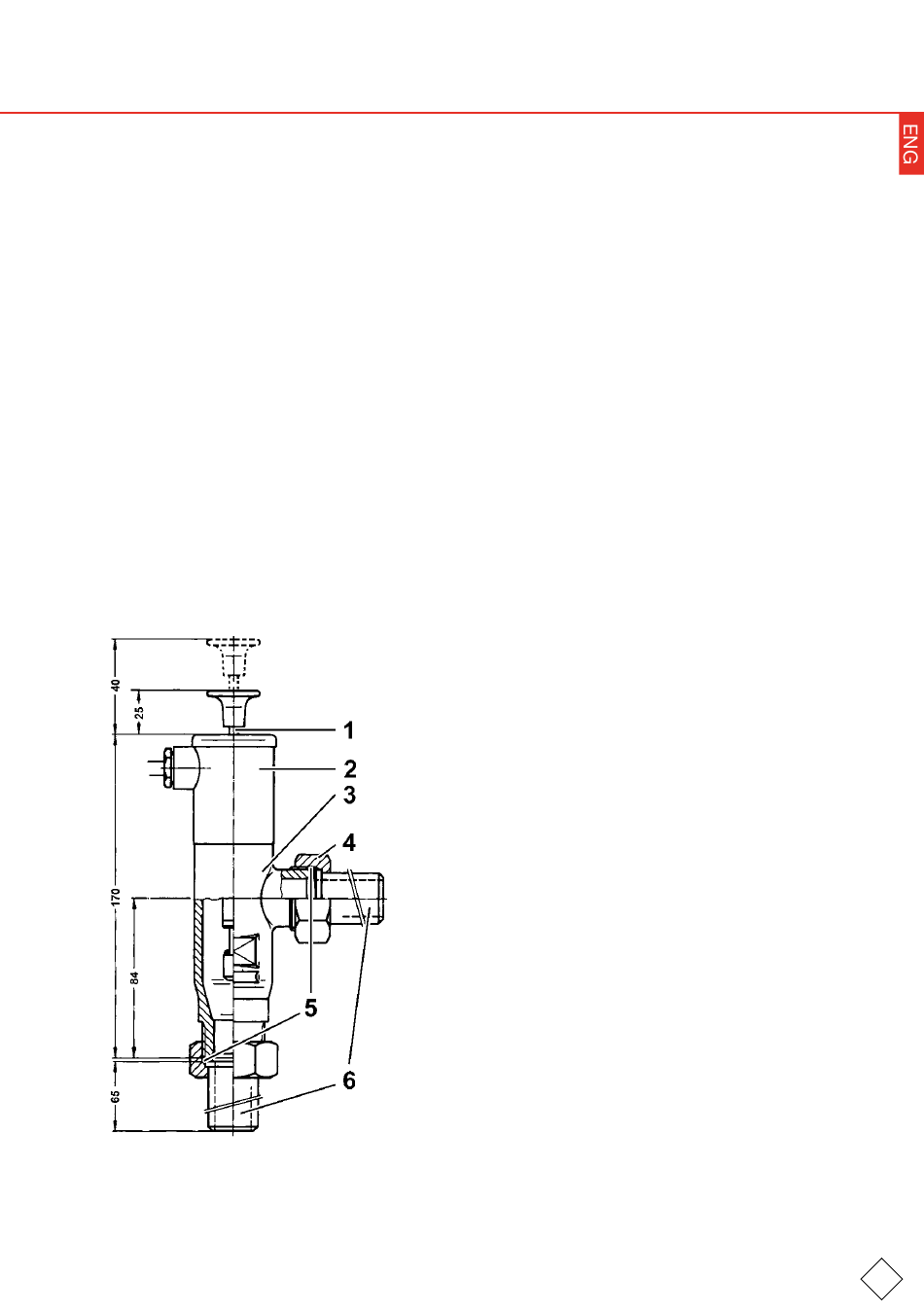

Fig. 1: Sensor DN 20
1 Electrode rod
2
Plastic housing
3 Electrode housing
4 Union nuts G1", size 40
5 Flange seal 30 x 21 x 2
6 Welded fitting Ø 26.5
(DN 20)
5
