This document is a supplement to the Installation and Operating instructions: Flexcon M-K, Doc..- Nr.: MC00019/06-2013/ENG;
Flamcomat, Doc.- Nr.: MC00018/06-2013/ENG and must be used in conjunction with the main document. This means that safety
advice, copyright protection, warranty, limitation of liability, etc., are also valid for this supplementary document.
Further product information can be obtained from the appropriate Flamco branch (see Page 2).
For installation instructions and further documentation in various languages, visit www.flamcogroup.com/manuals.
1. Intended use
Electronic display unit to indicate status of automat operating parameters. Compatible only with a Flamco automat controller and an
application-specific transmission protocol.
2. Product description
2.1 Mode of operation
The data signal transmitted by Flamcomat controller is reconstructed by the easycontact device and transformed into an optical
(LED), digital (relay) output. Different transmission protocols require the viewer (user) to assign the available transmitters (control units)
to the appropriate outputs. LEDs arranged in pairs, red, yellow are assigned to one potential-free output (1-7) each.

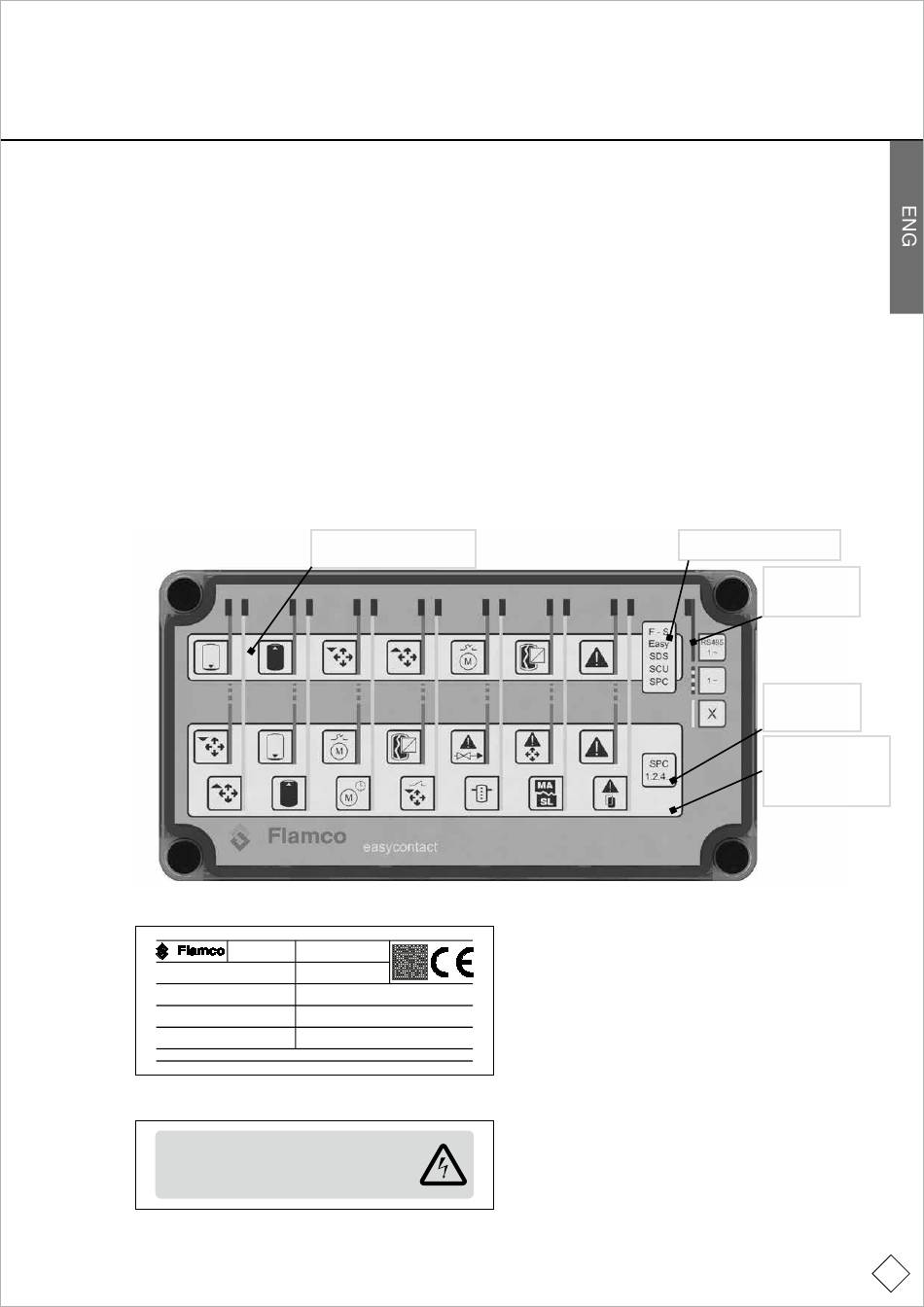

2.2 Marks on housing
2.2.1 Assignment of optical displays (red, yellow, blue)
2.2.2 Name plate
Type : Serial-No.:
easycontact
Typ : Serien-Nr.
: T1196; Frequency:
Drawing number
Dokumentationsnummer : 952-5.3-1 Frequenz
Year of manufacture : Rated operational voltage
2013
:
Herstellungsjahr Bemessungsbetriebsspannung
Number of phases : Rated short-circuit current
1
Phasenzahl : Bemessungskurzschluss-Strom
Degree of protection : Cut-off current
IP54
Schutzart : Volllaststrom :
Flamco STAG GmbH; Berliner Chaussee 29; 39307 Genthin; Germany
2.2.3 Electrical safety
Read the manual.
Attention,
High Voltage! Opening by qualified personnel only.
Disconnect the unit from the power supply before opening it.
Bedienanweisung lesen.
Achtung, gefährliche Spannung! Nur vom Fachpersonal zu öffnen.
Vor dem Öffnen des Gerätes spannungsfrei schalten.
Pictograms for error messages, Field
1 (display red)
EC-050-00076
:
: 50/60Hz
:
230VAC
:
:
0,16A
:
:
0,16A
Transmitter (control unit) Field 1
Operation indicator
coded
(display blue)
Transmitter
(Control unit)
Field 2
Pictogram
error messages
Field 2
(display red, yellow)
