INSTALLATION
The next step is to determine the output of the suction fumes according to the installation
requirements. The air outlet can be to the right or to the left.

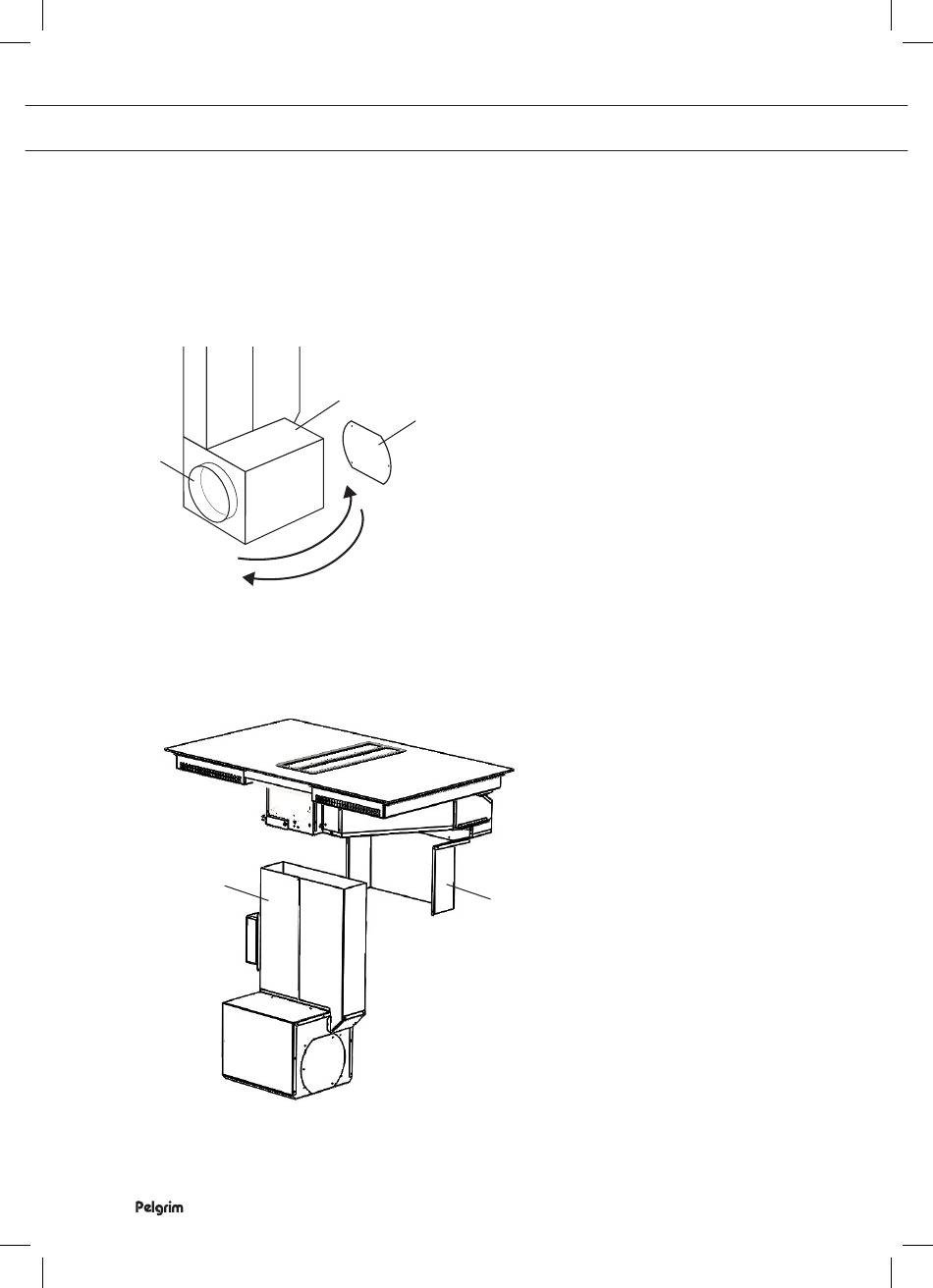

1. Remove the covers (X) en (Y).
2. Release the air outlet (Z) and place it on the opposite site.
3. Proceed with the reverse operations, place the cover (Y) on the opposite side and reinstall
the covering (X).
Z
4. Once the position of the aspiration unit has been defined, proceed to position it in the
hole at the cabinet base previously cut, paying attention to secure the upper part (X) to the
part (Y).
X
EN 12
X
Y
Y
