1.7

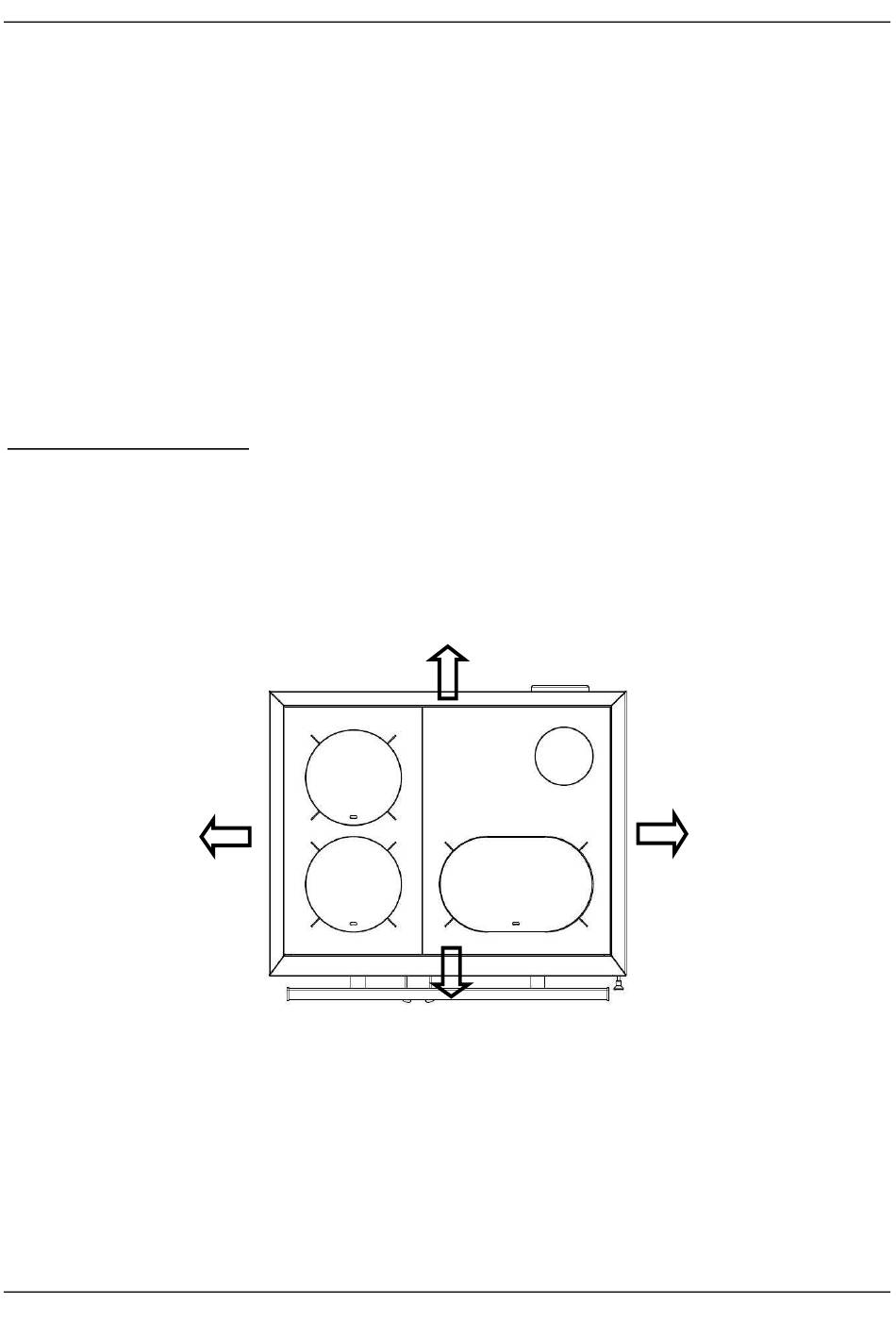

Safe distances

The following distances must be respected as safety margins from flammable objects and
bearing walls made of reinforced concrete and partition walls made from flammable mate-
rials or covered in flammable materials:
Beneath the hob plate (from the top of the stove to the floor)
Above the hob plate (radiation area of the hob plate)
The lateral distance to combustible components (Below the hot plate) can be reduced
when installed (intermediate member) to "0" with an original, factory supplied 50mm dis-
tance connection. The 50mm distance connection has been specially developed for the
flock W1-75 and W1-40 and type-tested.
Any flammable items attached above the stove must kept at a suitable distance. The mini-
mum distance is 700 mm.
Floor in front of the stove
Floors made of flammable substances, such as e.g. carpets, parquet, laminate, plastics or
cork, must be replaced or covered by a non-flammable substance e.g. ceramic, stone,
glass or a steel floor-plate for a distance of 500 mm forwards and 300 mm sideways.
The connection piece must not pass between flammable building materials or furniture. If
connected at the side, the safety gap required by the manufacturer between it and any
flammable materials must be respected.
B
1.8

Chimney attachment

The connection for attaching to the chimney must be able to withstand at least 400°C.
Before connecting the stove the local authority responsible for approving heating
Connection pieces must be firmly connected to the stove and to each other and must not
leak. They must not project into the open diameter of the chimney. The connection piece
between the stove and the chimney must have the same diameter as the pipe socket on
A ≥ 600 mm
A ≥ 600 mm
systems must be consulted!
B ≥ 300 mm
B ≥ 400 mm
C
A
PLEASE NOTE:
36
C ≥ 200 mm
C ≥ 200 mm
B
