MOUNTING DRAWER-SLIDE CABINET MEMBERS
Under-Mount Drawer Slides
Position the Brackets
• Extend only the Lower Slider on each bracket.
• Position Bracket A on the left side of the
cabinet, Bracket B on the right side, with
both Brackets extending into the cabinet.
• Position the Brackets with the top surfaces
of the Upper Sliders flush with the top
surface of the face-frame rail that is under
the drawer opening and the Lower Sliders
against the inside faces of the face-frame
stiles.
• Clamp the Brackets to the face frame.
Fasten the Drawer-Slide Cabinet Members
• Place the cabinet members of the drawer
slides on the Brackets. For overlay
drawer fronts, follow the drawer slide
manufacturer's instructions for the slide
setback distance from the face of the
stile. For inset drawer fronts, add the
thickness of the drawer front.
• Using the vertical mounting slots in the
drawer-slide cabinet members as guides,
drill pilot holes and screw the slides in
place.
• Remove the Brackets from the cabinet.
ATTENTION
Where the inside edges of the face-frame stiles are flush with the inside faces of the cabinet sides, do
not extend the Lower Sliders. Clamp the Brackets to the cabinet sides. Make sure the clamp pad bears on the Bracket
ribs, not the webbing between the ribs, including the web area with the Kreg logo. Clamping with the clamp pad on the
webbing could crack the Bracket.
FACE-FRAME CABINETS

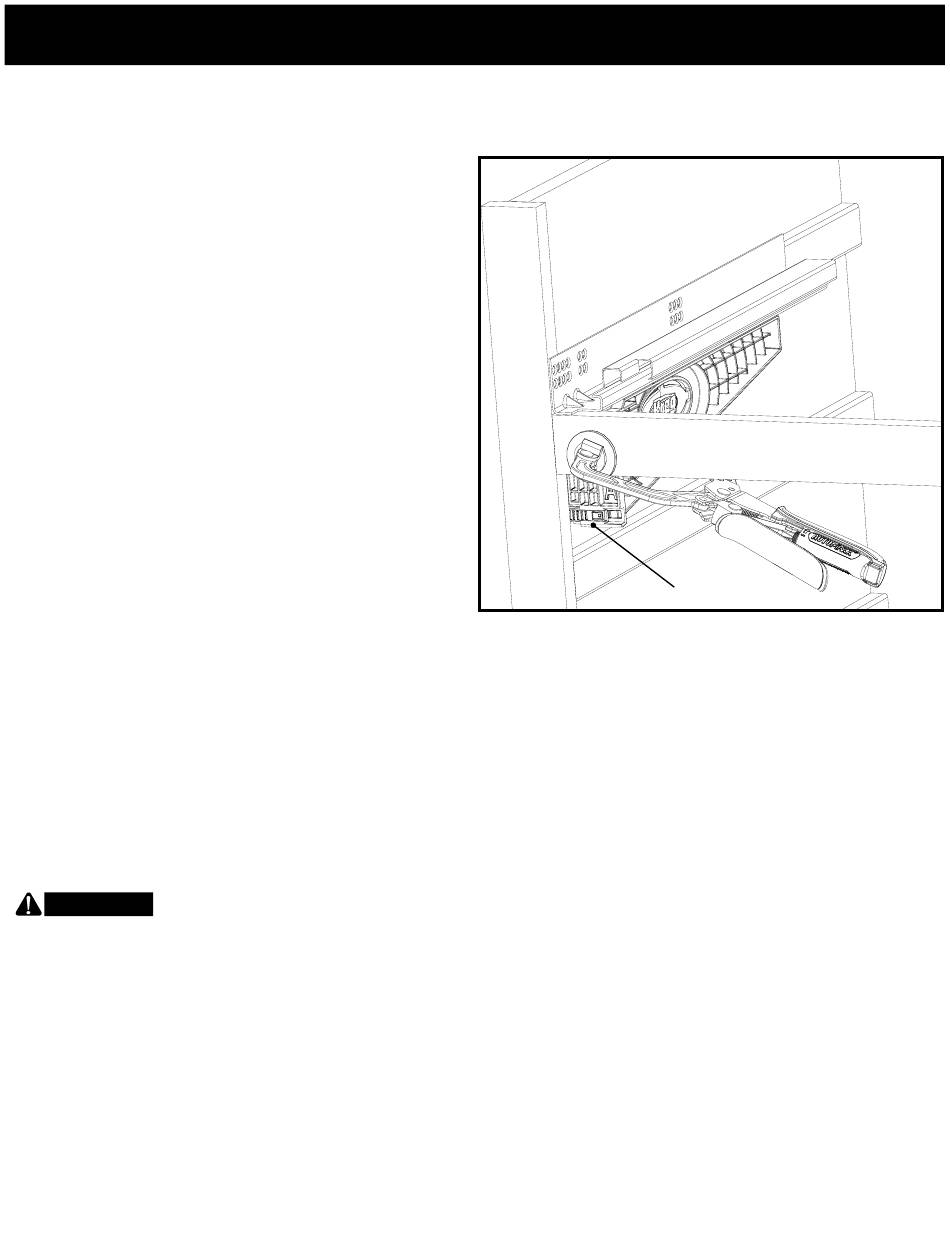

Lower slider extended
