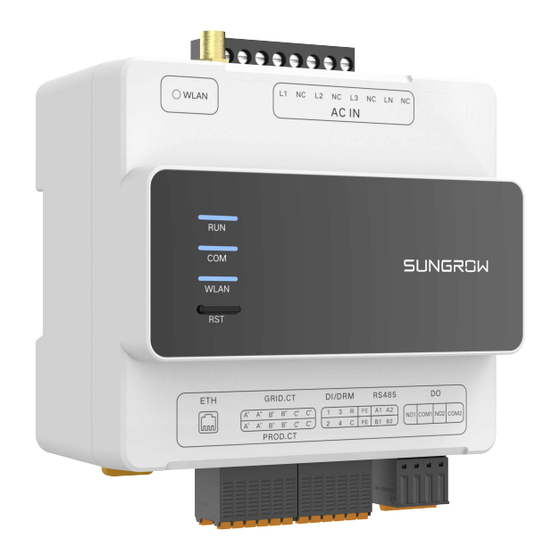

- Page 1 Quick Installation Guide Home Energy Manager iHomeManager iHomeManager-QIMUL-Ver11-202405...
- Page 2 4. Before installation, check that the contents of the package are intact and complete against the packing ● list. Contact SUNGROW or the distributor in case of any damages or missing items. 5. The cables must be intact and well insulated. Operation personnel must wear proper personal protective ●...
- Page 3 ● 4. Vergewissern Sie sich vor der Installation anhand der Versandliste, dass der Paketinhalt intakt und vollständig ist. Wenden Sie sich an SUNGROW oder den Händler, falls etwas fehlt oder beschädigt ist. ● 5. Die Kabel müssen intakt und gut isoliert sein. Das Bedienpersonal muss stets geeignete Schutzausrüstung tragen.
- Page 4 ● La directive sur les équipements radioélectriques 2014/53/UE (RED) SUNGROW confirme par la présente que les produits décrits dans ce document sont conformes aux exigences fondamentales et aux autres dispositions pertinentes des directives susmentionnées. Pour consulter l'intégralité de la déclaration UE de conformité, rendez-vous sur support.sungrowpower.com.
- Page 5 4. Controleer vóór de installatie of de inhoud van het pakket intact is en Voltooien voldoet aan de paklijst. ● Neem contact op met SUNGROW of de distributeur in geval van schade of ontbrekende items. 5. De kabels moeten intact en goed geïsoleerd zijn. Het bedieningspersoneel moet altijd de juiste ●...
- Page 6 4. Antes de la instalación, compruebe que el contenido del paquete esté intacto y completo según el ● albarán. Póngase en contacto con SUNGROW o el distribuidor en caso de daños o si falta algún artículo. 5. Los cables deben estar intactos y bien aislados. Los operarios deben usar equipos de protección ●...
- Page 7 ● Direttiva sulle apparecchiature radio 2014/53/EU (RED) Con la presente dichiarazione SUNGROW conferma che i prodotti descritti in questo documento sono conformi ai requisiti fondamentali e alle altre disposizioni pertinenti delle direttive sopra menzionate. L'intera Dichiarazione di conformità UE è disponibile su support.sungrowpower.com.
- Page 8 1. Typical Application / Typische Anwendung / Application type / Typische toepassing / Aplicación típica / Applicazione tipica 1.1 Residential PV-ESS-EV charging system (WiNet) Inverter 1 Grid · · SBR/SBH · CT signal line Heat Pump iHomeManager Home Load WLAN Inverter n EV Charger n ≤ 5 SBR/SBH Router iSolarCloud user Inverter...
- Page 9 1.3Retrofitsystemwiththird-partyinverter(WiNet) Third-party inverter GRID.CT PROD.CT Grid CT signal line iHomeManager Heat Pump Home Load WLAN Inverter 1 EV Charger · SBR/SBH · · Router iSolarCloud user Inverter n n ≤ 5 SBR/SBH Inverter Battery RACK EV Charger SH5.0~10RT-20 SBR096-256 AC11E-01...
- Page 10 1.5RetrofitsystemwithSUNGROWinverter(WiNet) GRID.CT Inverter 1 Grid · · · CT signal line iHomeManager Heat Pump Home Load WLAN EV Charger · · · SBR/SBH Router iSolarCloud user Inverter n n ≤ 5 SBR/SBH Inverter Battery RACK EV Charger SH5.0~10RT-20 SBR096-256 SH5~25T...
- Page 11 219nn 76nn :6nn 3. Scope of Delivery / Lieferumfang / Contenu de l'emballage / Omvang van de levering / Pack de entrega / Capitolato di fornitura iHomeManager Documents 100A CT x 3 Nylon cable tie x 6 Guide rail End bracket x 2...
- Page 12 4 . I n s t a l l a t i o n t o o l s / We r k z e u g e z u r I n s t a l l a t i o n / O u t i l s d ' i n s t a l l a t i o n / Montagegereedschap / Herramientas de instalación / Strumenti di installazione Goggles Dust mask...
- Page 13 A:5mm Dpodsfuf!xbmmt ST4.8 1.8-2.4(N·m) A:5mm Nfubm!xbmmt 1.8-2.4(N·m) 5.2 Mounted on a Guide Rail...
- Page 14 5.3 Antenna Installation Metal enclosure Metal enclosure 6. Electrical Connection / Elektrische Anschlüsse / Raccordement électrique / Elektrische aansluiting / Conexión eléctrica / Cablaggio elettrico 6.1 Terminal Overview...
- Page 15 Terminals Terminal Definition Description Single phase: 240Vac (L-N) Split phase: 102–120Vac (L-N) AC IN AC power supply Three-phase three-wire: 415Vac (L-L) Three-phase four-wire: 415Vac (L-L), 230Vac (L-N) Connected to the router for data communication Ethernet port Used for detecting the current on the grid-connection side GRID.CT Current detection Used for detecting the current of the third-party inverter...
- Page 16 Press and hold for 3-10s Reset to factory settings Press and hold for over 30s 6.2 AC and GRID.CT connection A: 80...90mm B: 12mm Thecolorsofthecablewiresinthefigureareforreferenceonly.Pleaseselectcablesandcablewiresprop- erly according to the relevant local standards. Grid Load 6.3 Connection to SUNGROW Inverters shielding layer...
- Page 17 SH5-25T COM2 COM2 34 35 34 35 2: 31 2: 31 32 33 32 33 26 27 26 27 : 21 : 21 SH5.0-10RT-20 A1B1 A1B1...
- Page 18 SG5.0-20RT SG5.0-20RT-P2 B3A3 B3A3 6.4 (Optional) PROD.CT Connection Inverter Load...
- Page 19 6.5 Connection to Heat Pump 6.6 (Optional) Connection to Router 6.7 DI connection Ripple Control Emergency Stop Function Emergency Stop Device External device...
- Page 20 High Technology Industrial Development Zone,HeFei City, Anhui Province,P.R.China Sungrow Power Supply Co.,Ltd. www.sungrowpower.com Made in China Manufacturer : Sungrow Power Supply Co., Ltd. No 1699. Xiyou Road,Hefei 230088.P.R.China For EU only EU/EEA Importer: Sungrow Deutschland GmbH Balanstraße 59, 81541 München, Germany Parameter...
- Page 21 9. Commissioning / Inbetriebnahme / Mise en service / Inbedrijfstelling / Puesta en marcha / Messa in servizio Download iSolarCloud App SG-A123456789 SG-A123456789 9.1 Local Access...
- Page 22 *It is recommended to go to the application store to update iSolarCloud App to the latest version. 9.2NetworkConfiguration ****** 9.3 Device Management and Settings...
- Page 23 For detailed parameter setting instructions, see “7.4.3 Parameter Settings” in the iHomeManager user manu- al. You can scan the QR code below for the manual. 9.4 System Check and Plant Creation...
- Page 24 More information in the QR code or at http://support.sungrowpower.com/ Sungrow Power Supply Co., Ltd. www.sungrowpower.com...
