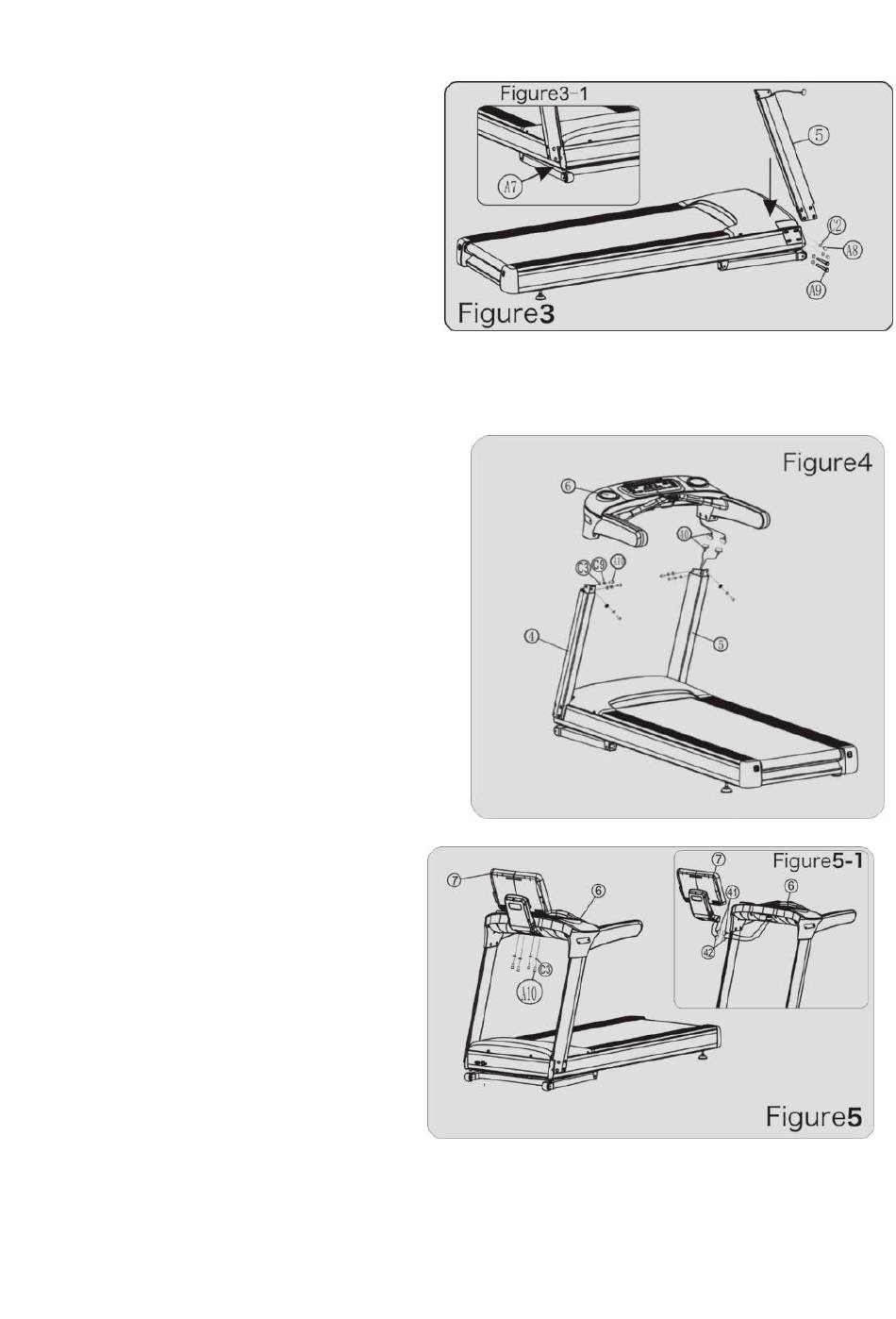

Installation of right upright tube
1Connect the Signal wire from right upright tube
to corresponding socket from frame.
2 Install the Right upright tube (5) to base frame
(1) using two sets of bolt M8X20 (A8),bolt
M8X65 (A9) and four pcs of flat washer φ8 (C2)
by side. (Attention: to align screw hole with the
upper surface). Make sure the bolts to connect
right upright tube and base frame.
the bolts until all the bolts are assembled.
Figure 3)
3. In upper outer side, using Bolt M10X160 (A7)
that was assembled on frame to
tighten.(Attention: bolt head position is the front
underside. See Figure 3-1)
Installation of handlebar and controlling panel
1 Connect the Signal wire from right upright tube to
corresponding socket from Handlebar.
2 Install handlebar and controlling panel set(6) to the
left/right upright tube (4/5).
3 Connect handlebar and controlling panel (6) to the
left/right upright tube (4/5) from inner and front sides
by six sets of half round bolt M10X25(A10), spring
washerφ10 (C9), and flat washer φ10(C3).
(Attention: To align screw hole)(See Figure 4)
Installation of display screen
1 Connect the socket from display screen to
corresponding wire from controlling panel.
Crowding the extra wire into the panel.
2 Connect the display screen (7) to handlebar
and controlling panel (6) by four sets of half-
round bolt M10X25(A10), flat washers
φ10(C3). (Attention: To align screw hole) (See
Figure 5)
Do not tighten
(See
