Installation

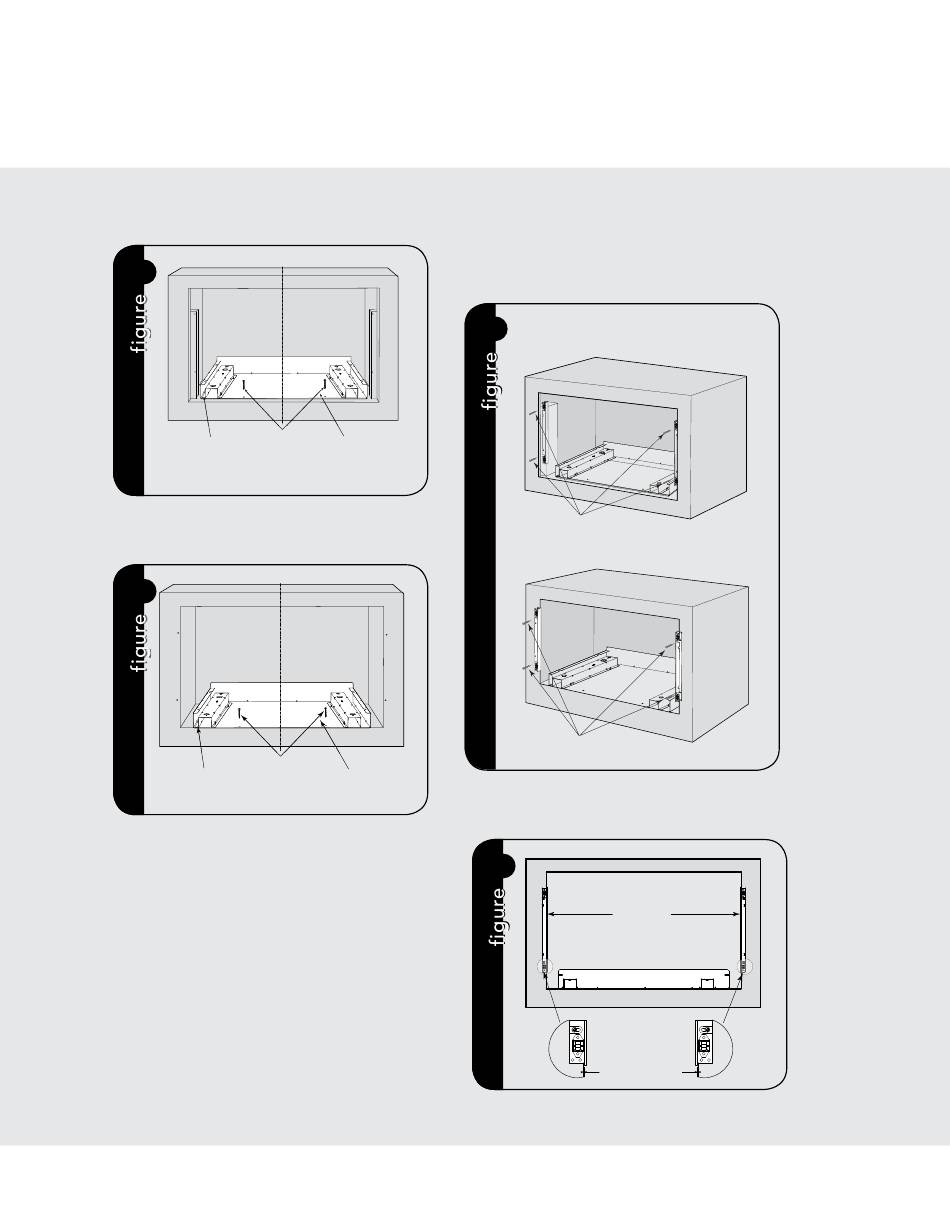

Illustration 6 - for Flush Mount
Bottom Duct Assembly
4
MAKE BOTTOM FlANGE
FlUSh WITh BOTTOM
SPACER
Illustration 7 - for Surface Mount
Place the Bottom Duct in the cabinet opening. For FLUSH
MOUNT, it will rest on the bottom spacer centered with
the cabinet. See figure 4.
5
MAKE BOTTOM FlANGE
FlUSh WITh CABINET
For SURFACE MOUNT, the Bottom Duct will rest on the
floor of the opening. See figure 5.
Align the Bottom Duct to the center of the
opening with the bottom flange securely flush
with the bottom spacer (for FLUSH MOUNT) or
the cabinet (for SURFACE MOUNT).
Secure the Bottom Duct Assembly with the two (2)
SCREWS A. See figures 4 and 5 respectively.
E
CENTER THE
BOTTOM DUCT
SCREW A
BOTTOM DUCT
CENTER THE
BOTTOM DUCT
SCREW A
BOTTOM DUCT
Mounting Bracket Assembly
Position the mounting brackets to align with the
predrilled holes that were drilled with the mounting
template.
6
A
FluSh MounT BRACKET
SCREW B
SuRFACE MounT BRACKET
B
SCREW B
The enclosed ends of the mounting brackets should face
inwards. Check that they are vertical and then secure loosely
with four (4) Screws B. See figure 6.
7
EQ.
6
27-1/2"
(698.5mm)
EQ.
