Installation
Mounting Template
Determine which mounting method to use
based on the required configuration. See figure
2A for FLUSH MOUNT and 2B for SURFACE
MOUNT.
Align the template corresponding to the required
mounting method to the center of the cabinet.
Make sure that the template is level with the
floor. Tape it into place. Cut the cabinet opening
along the lines specified on the template. Leave

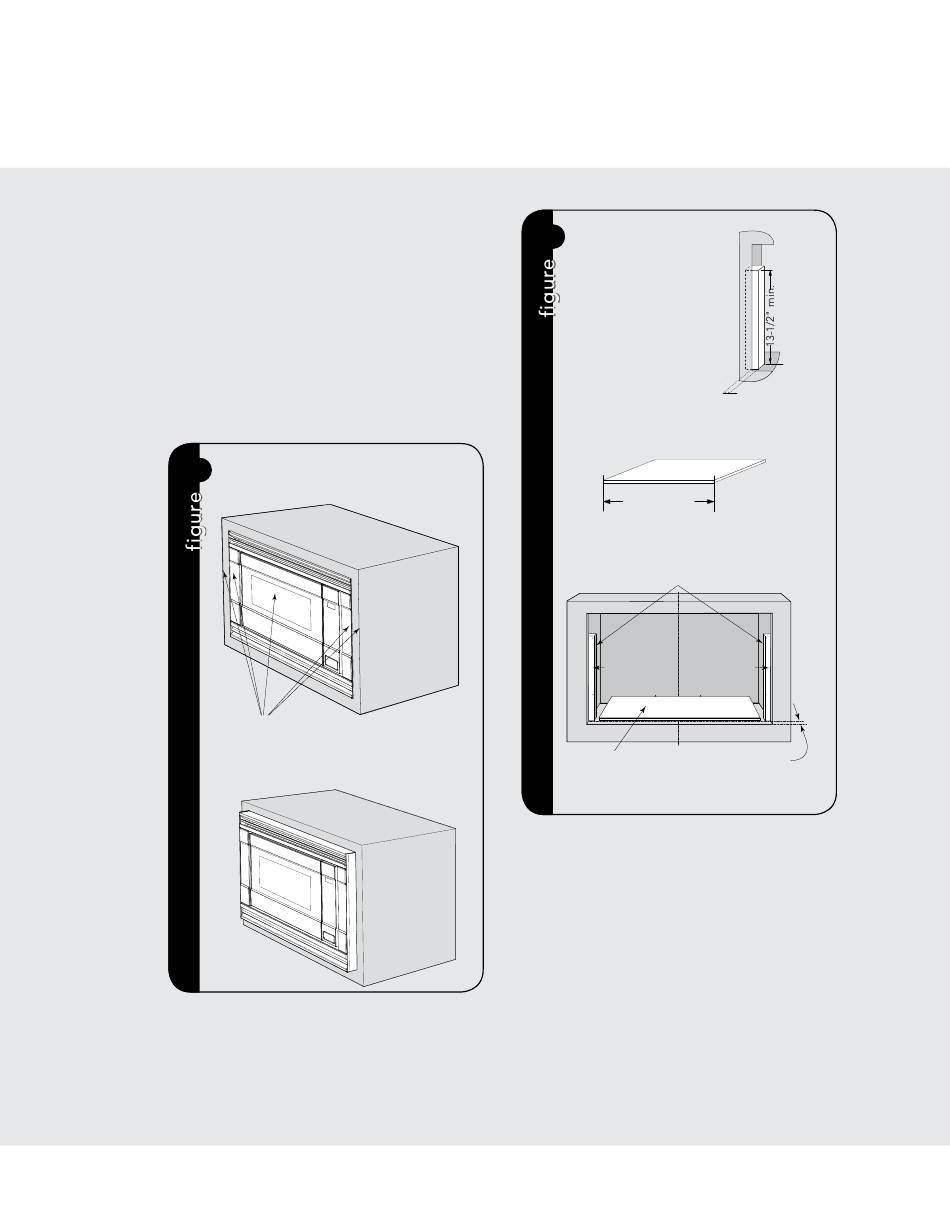

Illustration 2
template taped in place.
a.
Flush Mount Configuration -
Microwave Oven and Frame Assembly
2
FluSh MounT ConFIguRATIon
A
glass are flush with the cabinet
Microwave Oven and Frame Assembly glass
are flush with the cabinet.
Indicated surfaces are flush.
b.
Surface Mount Configuration -
Microwave Oven and Frame Assembly
SuRFACE MounT ConFIguRATIon
B
protrude from the surface of the cabinet.
—Microwave Oven and Frame Assembly
protrude from the surface of the cabinet.
For SURFACE MOUNT, predrill 4 holes marked "A" with a
1/16" drill bit. Remove template from the cabinet. Go to
Bottom Duct Assembly.
3
SIDE SPACER
A
REQUIRED. Must
protrude from edge of
cabinet cutout towards
center as shown.
BoTToM SPACER
B
REQUIRED. 1/4" plywood.
—
24" min. width
27-7/8" max. width
C
Side Spacer (L)
BOTTOM SPACER
CENTERED with
CABINET CUTOUT
For FLUSH MOUNT, two (2) side spacers and one (1) bottom
spacer are required. Spacers are not included in the kit and
must be fabricated by installer. See figures 3A and B for
spacer requirements. Make sure that all three spacers are
offset from the front of the cabinet by 1-9/16".
Cut out the Side Spacer Templates (R and L)
from the Flush Mounting Template. Align the
indicated edges to the corresponding right and
left side spacers as shown in figure 3. Make sure
to align the bottom edges of the side spacer
templates to the floor of the cabinet opening.
Predrill two (2) holes marked "A" on Side Spacer
Template – R and two (2) holes marked "B" on
Side Spacer Template – L with 1/16" drill bit.
Remove templates from the cabinet.
5
—2
13/16" min.
15/16" max.
—1
EDGES TO ALIGN SIDE SPACER
TEMPLATES (R and L)
Side Spacer (R)
1-9/16" (39.7 mm)
BOTTOM and SIDE
SPACER (R and L) offset
E
