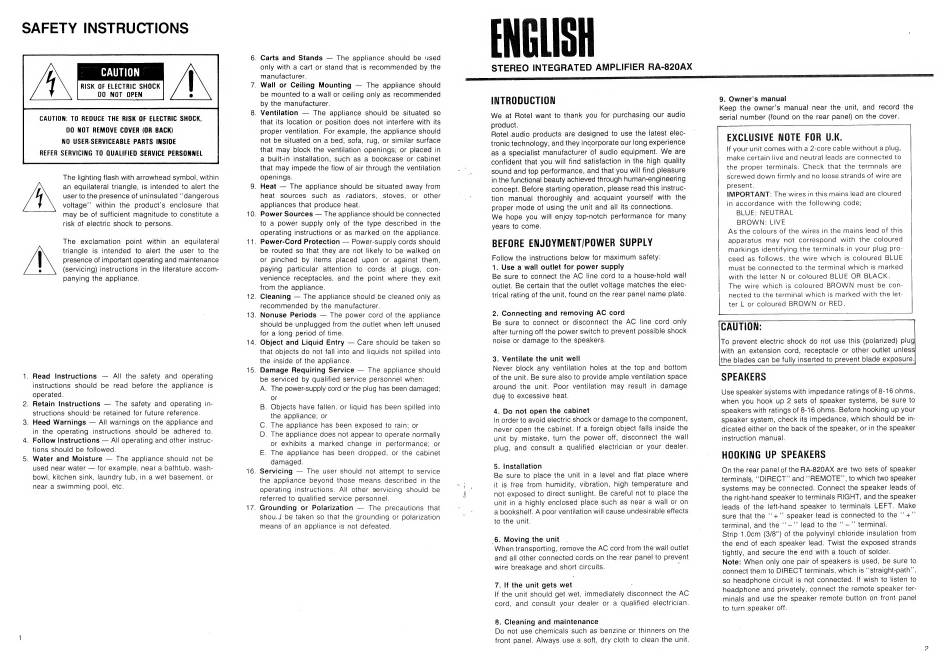

SAFETY INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
The lighting flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the
user to the presence of uninsulated ''dangerous
voltage" within the product's enclosure that
may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature accom-
panying the appliance.
1. Read Instructions — All the safety and operating
instructions should be read before the appliance is
operated.
2. Retain Instructions — The safety and operating in-
structions should: be retained for future reference.
3. Heed Warnings — All warnings on the appliance and
in the operating instructions should be adhered to.
4. Follow Instructions — All operating and other instruc-
tions should be followed.
5. Water and Moisture — The appliance should not be
used near water — for example, near a bathtub, wash-
bowl, kitchen sink, laundry tub, in a wet basement, or
near a swimming pool, etc.
10.
11.
16.
WA
. Carts and Stands — The appliance should be used
only with a cart or stand that is recommended by the
manufacturer.
Wall or Ceiling Mounting — The appliance should
be mounted to a wall or ceiling only as recommended
by the manufacturer.
Ventilation — The appliance should be situated so
that its location or position does not interfere with its
proper ventilation. For example, the appliance should
not be situated on a bed, sofa, rug, or similar surface
that may block the ventilation openings; or placed in
a built-in installation, such as a bookcase or cabinet
that may impede the flow of air through the ventilation
openings.
. Heat — The appliance should be situated away from
heat sources such as radiators, stoves, or other
appliances that produce heat.
Power Sources — The appliance should be connected
to a power supply only of the type described in the
operating instructions or as marked on the appliance.
Power-Cord Protection — Power-supply cords should
be routed so that they are not likely to be walked on
or pinched by items placed upon or against them,
paying particular attention to cords at plugs, con-
venience receptacles, and the point where they exit
from the appliance.
. Cleaning — The appliance should be cleaned only as
recommended by the manufacturer.
. Nonuse Periods — The power cord of the appliance
should be unplugged from the outlet when left unused
for a long period of time.
. Object and Liquid Entry — Care should be taken so
that objects do not fall into and liquids not spilled into
the inside of the appliance.
. Damage Requiring Service — The appliance should
be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged;
or
B. Objects have fallen, or liquid has been spilled into
the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally
or exhibits a marked change in performance; or
E. The appliance has been dropped, or the cabinet
damaged.
Servicing — The user should not attempt to service
the appliance beyond those means described in the
operating instructions. All other servicing should be
referred to qualified service personnel.
Grounding or Polarization — The precautions that
shou.J be taken so that the grounding or polarization
means of an appliance is not defeated.
ENGLISH
STEREO INTEGRATED AMPLIFIER RA-820AX
INTRODUCTION
We at Rotel want to thank you for purchasing our audio
product.
Rotel audio products are designed to use the latest elec-
tronic technology, and they incorporate our long experience
as a specialist manufacturer of audio equipment. We are
confident that you will find satisfaction in the high quality
sound and top performance, and that you will find pleasure
in the functional beauty achieved through human-engineering
concept. Before starting operation, please read this instruc-
tion manual thoroughly and acquaint yourself with the
proper mode of using the unit and all its connections.
We hope you will enjoy top-notch performance for many
years to come.
BEFORE ENJOYMENT/POWER SUPPLY
Follow the instructions below for maximum safety:
1. Use a wall outlet for power supply
Be sure to connect the AC line cord to a house-hold wall
outlet. Be certain that the outlet voltage matches the elec-
trical rating of the unit, found on the rear panel name plate.
2. Connecting and removing AC cord
Be sure to connect or disconnect the AC line cord only
after turning off the power switch to prevent possible shock
noise or damage to the speakers.
3. Ventilate the unit well
Never block any ventilation holes at the top and bottom
of the unit. Be sure also to provide ample ventilation space
around the unit. Poor ventilation may result in damage
due to excessive heat.
4. Do not open the cabinet
5. installation
Be sure to place the unit in a level and flat place where
it is free from humidity, vibration, high temperature and
not exposed to direct sunlight. Be careful not to place the
unit in a highly enclosed place such as near a wall or on
a bookshelf. A poor ventilation will cause undesirable effects
to the unit.
6. Moving the unit . :
When transporting, remove the AC cord from the wall outlet
and all other connected cords on the rear panel ta prevent
wire breakage and short circuits. `
7. If the unit gets wet E
If the unit should get wet, immediately disconnect the AC
cord, and consult your dealer or a qualified electrician.
8. Cleaning and maintenance
Do not use chemicals such as benzine or thinners on the
front panel. Always use a soft, dry cloth to clean the unit.
EXCLUSIVE NOTE FOR U.K.
9. Owner's manual
Keep the owner's manual near the unit, and record the
serial number (found on the rear panel) on the cover.
7
If your unit comes with a 2-core cable without a plug,
make certain live and neutral leads are connected to
the proper terminals. Check that the termnals are
screwed down firmly and no loose strands of wire are
present.
IMPORTANT: The wires in this mains lead are cloured
in accordance with the following code;
BLUE: NEUTRAL
BROWN: LIVE
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured
markings identifying the terminals in your plug pro-
ceed as follows. the wire which is coloured BLUE
must be connected to the terminal which is marked
with the letter N or coloured BLUE OR BLACK. |
The wire which is coloured BROWN must be con-
nected to the terminal which is marked with the let-
ter L or coloured BROWN or RED.
CAUTION:
To prevent electric shock do not use this (polarized) plug
with an extension cord, receptacle or other outlet unles
the blades can be fully inserted to prevent blade exposure.
SPEAKERS
Use speaker systems with impedance ratings of 8-16 ohms,
when you hook up 2 sets of speaker systems, be sure to
speakers with ratings of 8-16 ohms. Before hooking up your
speaker system, check its impedance, which should be in-
dicated either on the back of the speaker, or in the speaker
instruction manual.
HOOKING UP SPEAKERS
On the rear panel of the RA-820AX are two sets of speaker
terminals, "DIRECT" and "REMOTE", to which two speaker
systems may be connected. Connect the speaker leads of
the right-hand speaker to terminals RIGHT, and the speaker
leads of the left-hand speaker to terminals LEFT. Make
sure that the ''+'' speaker lead is connected to the "+"
terminal, and the ''—" lead to the '- " terminal.
Strip 1.0cm (3/8") of the polyvinyl chloride insulation from
the end of each speaker lead. Twist the exposed strands
tightly, and secure the end with a touch of solder.
Note: When only one pair of speakers is used, be sure to
connect them to DIRECT terminals, which is ''straight-path"',
so headphone circuit is not connected. If wish to listen to
headphone and privately, connect the remote speaker ter-
minals and use the speaker remote button on front panel
to turn speaker off.
