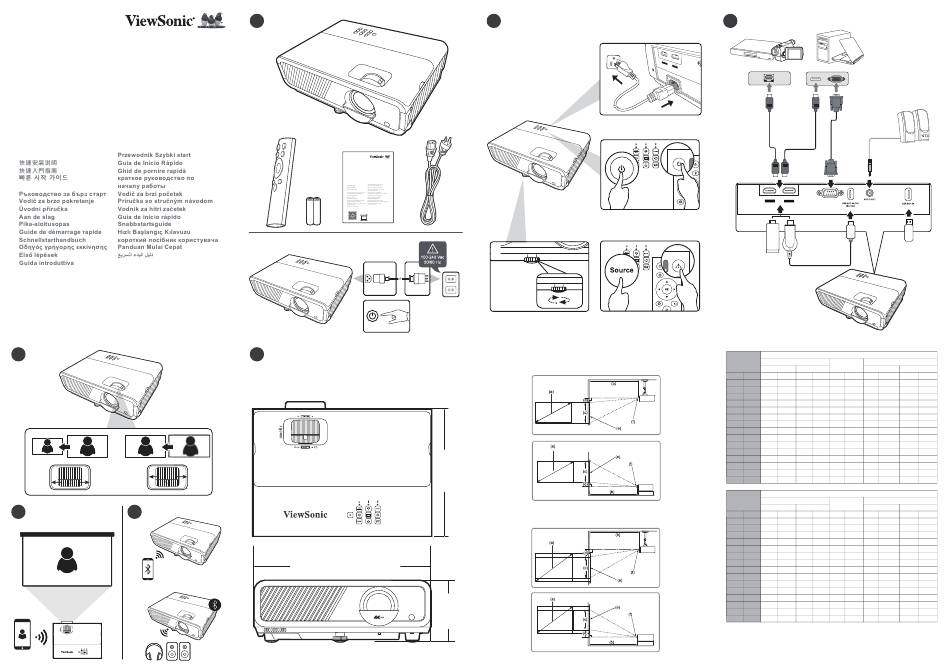

ViewSonic PX710-4KS Guide De Démarrage Rapide

PX710-4KS
Home Projector
Quick Start Guide
クイックスタートガイド
4
5 6
iOS / Android
1
PX710-4KS
Home Projector
Quick Start Guide
クイックスタートガイド
http://vsweb.us
Download Link
http://vsweb.us/q/dn.php
ViewSonic Projector
7
Screws: M4 x 8 (Max. L = 8 mm)
Unit: mm
6-1
312 mm
6-2
2
1
2
4
3
• 16:9 image on a 16:9 screen
222 mm
• 16:9 image on a 4:3 screen
108 mm
3
HDMI 1 HDMI 2
HDCP2.2 HDCP2.2
ENU
EXIT
SO E
(a) Screen Size (b) Projection distance
m i . n
inch mm inch mm inch
60 1524 78.6 1995.8 86.4
70 1778 91.7 2328.4 100.8
80 2032 104.8 2661.1 115.2
90 2286 117.9 2993.7 129.6
100 2540 131.0 3326.3 144.1
110 2794 144.1 3658.9 158.5
120 3048 157.1 3991.6 172.9
130 3302 170.2 4324.2 187.3
140 3556 183.3 4656.8 201.7
150 3810 196.4 4989.5 216.1
160 4064
209.5 5322.1 230.5
170 4318 222.6 5654.7 244.9
180 4572 235.7 5987.4 259.3
190 4826 248.8 6320.0 273.7
200 5080 261.9 6652.6 288.1
(a) Screen Size (b) Projection distance
m i . n
inch mm inch mm inch
60 1524 72 1831.9 79
70 1778 84 2137.2 93
80 2032 96 2442.5 106
90 2286 108 2747.8 119
100 2540 120 3053.2 132
110 2794 132 3358.5 145
120 3048 144 3663.8
159
130 3302 156 3969.1 172
140 3556 168 4274.4 185
150 3810 180 4579.7 198
160 4064 192 4885.0 212
170 4318 204 5190.4 225
180 4572 216 5495.7 238
190 4826 228 5801.0 251
200 5080 240 6106.3 264
There is 3% tolerance among these numbers due to optical component variations. It is
recommended that if you intend to permanently install the projector, you should
physically test the projection size and distance using the actual projector in situ before
you permanently install it, so as to make allowance for this projector's optical
characteristics. This will help you determine the exact mounting position so that it best
suits your installation location.
RS-232
16:9 image on a 16:9 Screen
(d) Vertical offset
(c) Image
height
m a . x m i . n m a . x
mm inch mm inch mm inch mm
2195.4 29.4 747.2 2.9 74.7 2.9 74.7
2561.3 34.3 871.7 3.4 87.2 3.4 87.2
2927.2 39.2 996.2 3.9 99.6 3.9 99.6
3293.1 44.1 1120.7 4.4 112.1 4.4 112.1
3658.9 49.0 1245.3 4.9 124.5 4.9 124.5
4024.8 53.9 1369.8 5.4 137.0 5.4 137.0
4390.7 58.8 1494.3 5.9 149.4 5.9 149.4
4756.6 63.7 1618.8 6.4 161.9 6.4 161.9
5122.5 68.6 1743.4 6.9 174.3 6.9 174.3
5488.4 73.5 1867.9 7.4 186.8 7.4 186.8
5854.3 78.4 1992.4 7.8 199.2 7.8 199.2
6220.2 83.3 2116.9 8.3 211.7 8.3 211.7
6586.1 88.2 2241.5
8.8 224.1 8.8 224.1
6952.0 93.1 2366.0 9.3 236.6 9.3 236.6
7317.9 98.1 2490.5 9.8 249.1 9.8 249.1
16:9 image on a 4:3 Screen
(d) Vertical offset
(c) Image
height
m a . x m i . n m a . x
mm inch mm inch mm inch mm
2015.1 27.0 685.8 2.7 68.6 2.7 68.6
2350.9 31.5 800.1 3.2 80.0 3.2 80.0
2686.8 36.0 914.4 3.6 91.4 3.6 91.4
3022.6 40.5 1028.7 4.1 102.9 4.1 102.9
3358.5 45.0 1143.0 4.5 114.3 4.5 114.3
3694.3 49.5 1257.3 5.0 125.7 5.0 125.7
4030.2 54.0 1371.6 5.4 137.2 5.4 137.2
4366.0 58.5
1485.9 5.9 148.6 5.9 148.6
4701.9 63.0 1600.2 6.3 160.0 6.3
160.0
5037.7 67.5 1714.5 6.8 171.5 6.8 171.5
5373.5 72.0 1828.8 7.2 182.9 7.2 182.9
5709.4 76.5 1943.1 7.7 194.3 7.7 194.3
6045.2 81.0 2057.4 8.1 205.7 8.1 205.7
6381.1 85.5 2171.7 8.6 217.2 8.6 217.2
6716.9 90.0 2286.0 9.0 228.6 9.0 228.6
