USER'S MANUAL
LOW SPEED TROUBLE SHOOTING
PROBLEM
1. No or low air pressure.
2. Air line improperly sealed.
3. Inferior oil; too much or excess more
Handpiece won't run
4. Broken drive head. Note new handpieces
time" this can be up to 20 hours of use
LOW SPEED HANDPIECE - 4:1 STRAIGHT NOSE CONE
PROBLEM
1. Plastic drive shaft broken off internally in
Cant fit R&R prophy
2. Improper lubrication.
angle
Only fit plastic iM3 R&R prophy angles Code
L7465.
CARTRIDGE TOGGLE
Toggle switches become floppy
All iM3 dental units use a unique cartridge system for
the toggle switches. The toggles are used to pressurise
the water/CLS bottles. When the O-rings become worn
you simply push the cartridge in and turn a 1/4 turn anti
clockwise. The cartridge can then be removed from the
valve casing.
To install a new toggle, locate the desired position, push
and rotate a 1/4 turn clockwise. New toggles can be
ordered from iM3 and installed by the user. Toggles can be
installed in the 12, 3, 6 and 9 o'clock positions. If the toggle
is in the wrong position simply remove and reposition.
The Dental unit should be turned off and depressurised
before replacement.
GS DELUXE / (LED) VETERINARY DENTAL UNIT
CAUSE
commonly too little oil or water in the
turbine.
require a "Run in time" this can be up to
20 hours of use
NOTE: new handpieces require a "Run in
CAUSE
Chuck housing
SOLUTION
1. Check the air line to be sure the air is
turned on and the line is unobstructed.
2. Reconnect air line to handpiece making
sure the gasket is fully contracted.
3. See lubrication instructions on page 26.
4. Contact your local iM3 official Service
Centre.
If the motor stops spinning place a fine
screw driver down the nose and rotate
shaft.
SOLUTION
1. Contact your local official iM3 Service
Centre.
2. See lubrication instructions, on page 26.

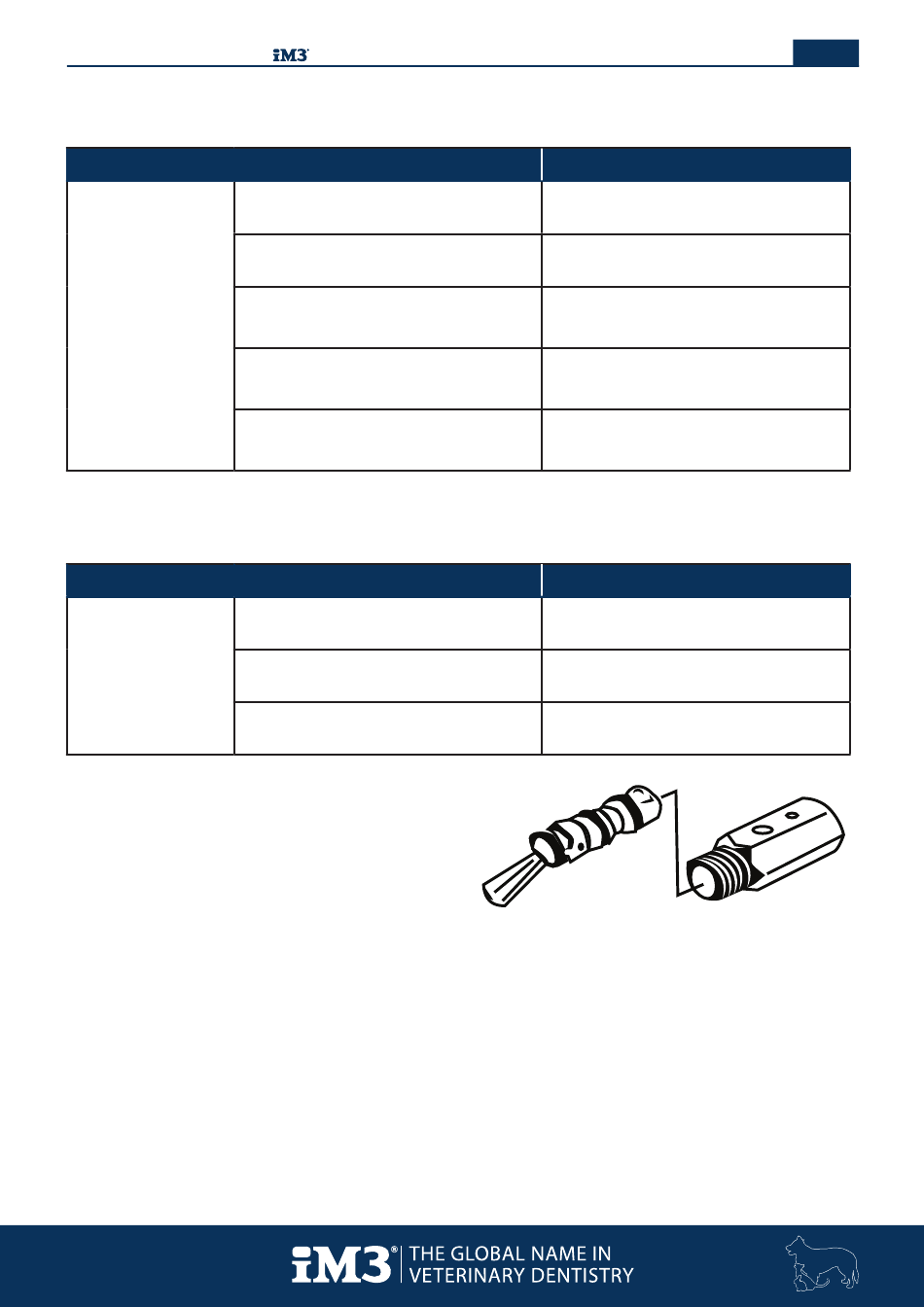

Fig.35- Toggle switch for Water and CLS
