USER'S MANUAL

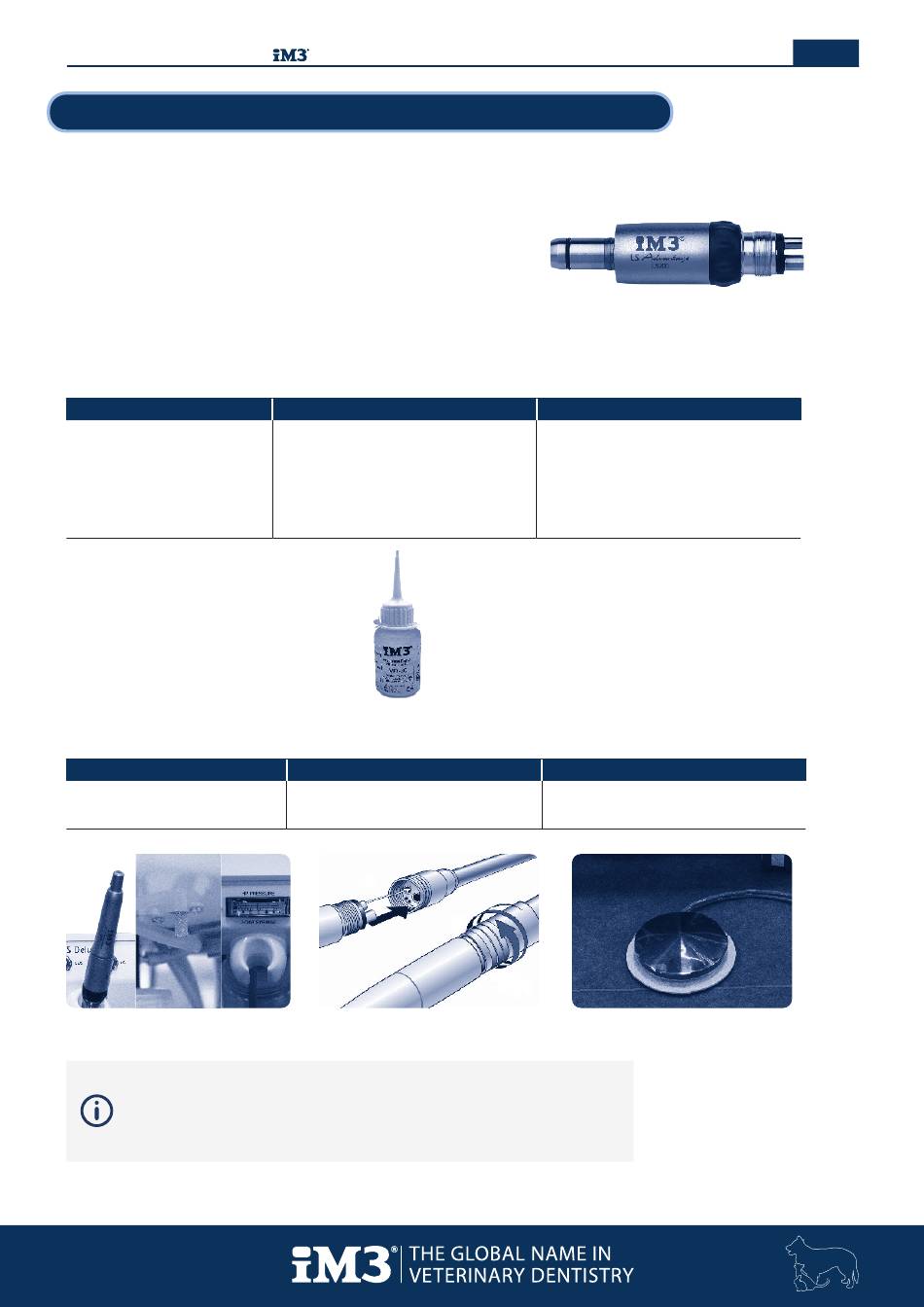

7. i M 3 A D VA N TAG E LO W S P E E D H A N D P I E C E
The low speed handpiece features include a light weight
balanced profile and smooth swivel action. Its vane type
power system is quiet and vibration free. The motor
accommodates both doriot or ISO heads and its powerful
torque is suitable for all low speed procedures. The Low
Speed Motor operates at 20,000 RPM with delivery pressure
of 35 psi.
OPERATING RECOMMENDATIONS
AIR PRESSURE
The dental unit air pressure
should be adjusted to be
35 psi (See page 27)
INSTALLATION INSTRUCTIONS
STEP 1
Preset the air pressure to 35 psi
NOTE: Polishing should be carried out at 5,000 rpm or less. This can be
accomplished by running the motor at full revs (20,000 rpm) and use
a 4:1 reduction head, to achieve 5,000 revs, maintaining torque.
GS DELUXE / (LED) VETERINARY DENTAL UNIT
LUBRICATION
To assure optimal performance
and life the handpiece should be
lubricated daily with MD-30 oil
lubricant. Instructions for lubrication
are found on (See page 26)
Fig. 11 -
STEP 2
Connect the low speed handpiece to
the grey handpiece line
Fig.10 - iM3 Advantage Low Speed Motor
SKU EU/AU/US:
AIR SUPPLY
Air supply moist or dirty air from the
compressor can cause damage. Check
the regulator filter regularly. If dirt
or moisture is present, replace the
regulator filter and bleed the system,
to remove water or oil.
iM3 MD 30 Advantage
Handpiece Oil - 30ml
SKU EU/AU/US: MD-30
STEP 3
Depress the foot control fully to
operate the low speed handpiece
21 � EN
