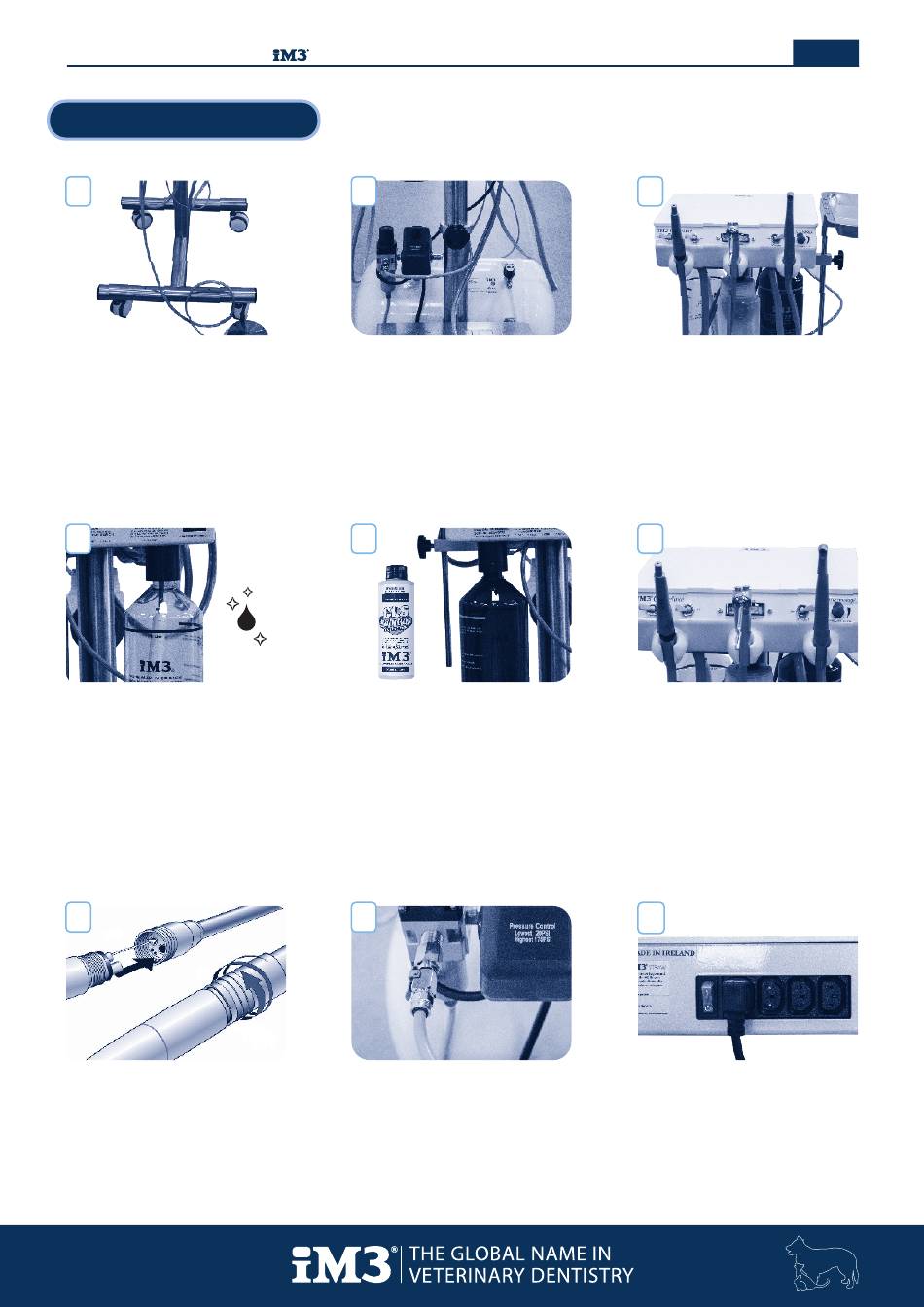

3. I N S TA L L AT I O N
1
Attach all four castor wheels to
the stainless steel base.
4
1 1 1
Fill the clear plastic water bottle
at the back of the machine with
distilled water and screw into the
holder with the blue tubing,
DO NOT over tighten.
1 1 1 7
Connect the handpieces by
screwing them to the grey
handpiece line and place in
correct handpiece holder labeled
on the dental system
GS DELUXE / (LED) VETERINARY DENTAL UNIT
2
Loosen the stand height
adjustment knob and lift the
dental control box to working
height. Tighten the stand height
adjustment knob to secure.
5
Fill the amber plastic bottle with
the CLS Concentrate Solution
(8.5oz or 250 ml) and dilute with
distilled water (25.4oz or 750ml)
to make a 33.82 oz or 1 litre
solution. Screw the bottle into
the holder with the green tubing.
DO NOT over tighten.
8
Check the main dental
machine air line (grey in
colour) is connected to the
quick disconnect fitting on the
compressor outlet tap (on/off)
16 � EN
3
Screw on the high speed
handpiece and low speed waste
collection container under the
control panel, located behind
the 3 way syringe grey cabling.
(picture P.26)
6
Place the 3 way air/water syringe
in its handpiece holder—center
position. Place the handpieces
into their correct holder on
either side of the 3 way air/water
syringe (as pictured)
9
Plug the unit into an electrical
outlet with power cord supplied
and turn power board ON.
