IP35

IP35-E

Motherboard

Socket 775

User's Manual

About this Manual:

This user's manual contains all the information you may

need for setting up this motherboard. To read the user's

manual of PDF format (readable by

the "Driver & Utility CD" into the CD-ROM drive in your

system. The auto-run screen will appear, click the

"Manual" tab to enter its submenu. If not, browse the

root directory of the CD-ROM via the File Manager, and

double click the "AUTORUN" file.

Adobe

Reader), place

Intel P35 / ICH9R (IP35)

Intel P35 / ICH9 (IP35-E)

FSB 1333 MHz

Dual Channel DDR2 800

Gigabit LAN

SATA 3Gb/s with RAID (IP35)

USB 2.0 / IEEE 1394 (IP35)

7.1-Channel HD Audio

abit SoftMenu™ Tech.

abit Silent OTES™ Tech. (IP35)

Vista Premium HW Ready

Sommaire des Matières pour Abit IP35-E

Page 1 IP35 IP35-E Motherboard Socket 775 User’s Manual Intel P35 / ICH9R (IP35) Intel P35 / ICH9 (IP35-E) FSB 1333 MHz Dual Channel DDR2 800 Gigabit LAN SATA 3Gb/s with RAID (IP35) USB 2.0 / IEEE 1394 (IP35) 7.1-Channel HD Audio About this Manual: This user’s manual contains all the information you may...
Page 2 IP35/IP35-E User’s Manual English + Multilingual QIG P/N: 4310-0000-78 Rev. 1.00, April 2007 Copyright and Warranty Notice The information in this document is subject to change without notice and does not represent a commitment on part of the vendor, who assumes no liability or responsibility for any errors that may appear in this manual.
Page 3 1. Hardware Setup ............... 1-1 1.1 Specifications................1-1 1.2 Motherboard Layout ..............1-2 1.2.1 IP35 ................... 1-2 1.2.2 IP35-E ................1-3 1.3 Choosing a Computer Chassis ............1-4 1.4 Installing Motherboard ..............1-4 1.5 Checking Jumper Settings............. 1-5 1.5.1 CMOS Memory Clearing Header and Backup Battery ....1-5 1.6 Connecting Chassis Components ...........
Page 4 4.19.2 快速安裝略說..............4-20 4.20 简体中文................. 4-21 4.20.1 规格 ................4-21 4.20.2 快速安装略说..............4-22 5. Appendix ................5-1 5.1 Troubleshooting (How to Get Technical Support?)......5-1 5.1.1 Q & A ................. 5-1 5.1.2 Technical Support Form............5-4 5.1.3 Contact Information............. 5-5 IP35/IP35-E...
Page 5 • 1x Ultra ATA 133 IDE Connector Chipset (For IP35 • 6x SATA 3Gb/s Connectors • IP35: Intel P35 / Intel ICH9R only) • IP35-E: Intel P35 / Intel ICH9 (For IP35-E • 4x SATA 3Gb/s Connectors only) Memory • 4x USB 2.0 Headers •...

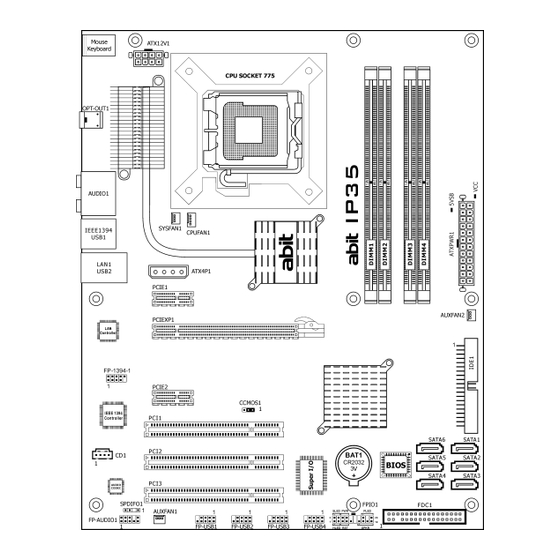

Page 6 1.2 Motherboard Layout 1.2.1 IP35 IP35/IP35-E...
Page 7 1.2.2 IP35-E The motherboard and its component layouts illustrated in the following ※ chapters of this manual were mainly based on model “IP35” but suitable for both “IP35” and “IP35-E”, unless specifically stated. IP35/IP35-E...
Page 8 Install the motherboard with screws and have them tightened. To prevent shorting the PCB circuit, ※ please REMOVE the metal studs or spacers if they are already fastened on the chassis base and are without mounting-holes on the motherboard to align with. IP35/IP35-E...
Page 9 For incorrect CPU ratio/clock settings in the BIOS, press <Del> key to enter the BIOS setup menu right after powering on system. Set the CPU operating speed back to its default or an appropriate value. Save and exit the BIOS setup menu. IP35/IP35-E...
Page 10 Enter the BIOS setup menu. Reconfigure the setup parameters if necessary. CAUTION: Danger of explosion may arise if the battery is incorrectly renewed. ※ Renew only with the same or equivalent type recommended by the battery ※ manufacturer. Dispose of used batteries according to the battery manufacturer’s instructions. ※ IP35/IP35-E...
Page 11 EPS12V power source to meet the 240VA Plugged from a 4-pin Plugged from an 8-pin protection limits. ATX12V power. EPS12V power. [ATX4P1]: Auxiliary 12V power connector This connector provides an auxiliary power source for devices added on PCI Express slots. IP35/IP35-E...
Page 12 Please refer to the BIOS setup route: “PC Health Status” “ABIT FanEQ Control” “CPU FAN Type” to select the one of your own. These fan connectors are not jumpers. DO NOT place jumper caps on these ※ connectors. IP35/IP35-E...
Page 13 2. Use your right-thumb to raise the load plate. Lift it up to fully open position. 4. Visually inspect if the CPU is seated well into the socket. The alignment key must be located in the notch of package. IP35/IP35-E...
Page 14 7. Secure the lever with the hook under retention tab. A higher fan speed will be helpful for better airflow and heat-dissipation. ※ Nevertheless, stay alert to not touch any heatsink since a high temperature generated by the working system is still possible. 1-10 IP35/IP35-E...
Page 15 DIMM module. Static electricity can damage the electronic components of the computer or ※ optional boards. Before starting these procedures, ensure that you are discharged of static electricity by touching a grounded metal object briefly. IP35/IP35-E 1-11...
Page 16 Make sure to configure the “Master” and “Slave” relation before connecting ※ two drives by one single ribbon cable. The red line on the ribbon cable must be aligned with pin-1 on both the IDE port and the hard-drive connector. 1-12 IP35/IP35-E...
Page 17 SATA device and connect the other end from the power supply. The motherboard in this photo is served for DEMO only, and may not be the ※ same type or model as the one described in this user’s manual. IP35/IP35-E 1-13...
Page 18 I/O panel or the front-mounted IEEE 1394 port of your chassis. Pin Assignment Pin Assignment TPA0 + TPA0 - Ground Ground TPB0 + TPB0 - +12V +12V Ground Make sure the connecting cable bears the same pin assignment. ※ 1-14 IP35/IP35-E...
Page 19 Pin 4 “AVCC” of this header. Pin Assignment Pin Assignment (HD AUDIO) (AC’97 AUDIO) MIC2 L MIC In AGND MIC2 R MIC Power AVCC FRO-R Line Out (R) MIC2_JD F_IO_SEN FRO-L Line Out (L) LINE2_JD IP35/IP35-E 1-15...
Page 20 The audio driver is originally configured to support HD Audio. For AC’97 audio connection, you may: Right-click the “Realtek HD Audio Manager” icon system tray. Click “Audio I/O” tab, and then click “Connector Settings”. Click “Disabled front panel jack detection”, and then click “OK” to confirm. 1-16 IP35/IP35-E...
Page 21 S/PDIF Out Ground 1.8.8 PCI and PCI Express X16, X1 Slots Install PCI Express X16 graphics card into slot “PCIEXP1”. Install PCI Express X1 cards into slots “PCIE1” and/or “PCIE2”. Install PCI cards into slots “PCI1”, “PCI2”, and/or “PCI3”. IP35/IP35-E 1-17...
Page 22 1.9 Onboard Indicators • 5VSB: This LED lights up when the power supply is connected with power source. • VCC: This LED lights up when the system power is on. 1-18 IP35/IP35-E...
Page 23 1.10 Connecting Rear Panel I/O Devices The rear I/O part of this motherboard provides the following I/O ports: IP35 IP35-E • Mouse: Connects to PS/2 mouse. • Keyboard: Connects to PS/2 keyboard. • OPT-OUT1: This connector provides an S/PDIF-Out connection through optical fiber to digital multimedia devices.
Page 24 1-20 IP35/IP35-E...
Page 25 In order to increase system stability and performance, our engineering staff is ※ constantly improving the BIOS menu. The BIOS setup screens and descriptions illustrated in this manual are for your reference only, and may not completely match with what you see on your screen. IP35/IP35-E...
Page 26 External Clock This item selects the external clock frequency. Due to the specification limit of the CPU you installed, the speed you set over its standard bus speed is supported, but not guaranteed. IP35/IP35-E...
Page 27 ICH 1.50V Voltage This item selects the voltage for ICH (SB). MCH 1.25V Voltage This item selects the voltage for MCH (NB). CPU GTLREF Voltage This item selects the percentage ratio of CPU VTT voltage for the CPU GTL reference voltage. IP35/IP35-E...
Page 28 SATA Channel 1 Auto-Detection Press Enter Item Help SATA Channel 1 Auto Access Mode Auto Capacity 0 MB Cylinder Head Precomp Landing Zone Sector :Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults IP35/IP35-E...
Page 29 A, B, or both. Leave this item at its default [Disabled] setting if you are not using this Japanese standard floppy drive. Halt On This item determines whether the system stops if an error is detected during system boot-up. IP35/IP35-E...
Page 30 Quick Power On Self Test When set to [Enabled], this item speeds up the Power On Self Test (POST) after powering on the system. The BIOS shorten or skip some check during the POST. IP35/IP35-E...
Page 31 This option enables or disables the additional hardware capabilities provided by Virtualization Technology. Frequency Unlimit This option enables or disables to unlock the multiplier factor for the processor you installed. This item appears only with certain unlocked processors. ※ IP35/IP35-E...
Page 32 This item specifies which version of MPS (Multi-Processor Specification) this motherboard will use. Leave this item at its default setting. Report No FDD For OS When set to [Yes], this item allows you to run some older operating system without floppy disk drive. Leave this item at its default setting. IP35/IP35-E...
Page 33 SPD (Serial Presence Detect) device. The EEPROM on the memory module stores critical parameter information about the module, such as memory type, size, speed, voltage interface, and module banks. The following items will be available to make adjustments by selecting option [Manual]. IP35/IP35-E...
Page 34 This item selects the mode for PCI Express add-on card. Back to Advanced Chipset Features Setup Menu Init Display First This item allows you to choose the primary display card. PEG Force X1 When set to [Enabled], this item forces the PEG port down to x1 mode. 2-10 IP35/IP35-E...
Page 35 OnChip SATA Controller This item enables or disables the onchip SATA controller. (For model “IP35” only) OnChip SATA Mode This item selects the mode for devices connected through SATA ports. [IDE]: The on-chip Serial ATA served as IDE mode. IP35/IP35-E 2-11...
Page 36 - USB Keyboard Support Via - USB Mouse Support Via - USB Storage Function Enabled *** USB Mass Storage Device Boot Setting *** :Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults 2-12 IP35/IP35-E...
Page 37 :Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults (For model “IP35” only) IEEE 1394 Controller This option enables or disables the IEEE 1394 controller. IDE Controller This option enables or disables the function over IDE connector. IP35/IP35-E 2-13...
Page 38 Phoenix – AwardBIOS CMOS Setup Utility Super-IO Device Floppy Disk Controller Enabled Item Help :Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults Floppy Disk Controller This option enables or disables the floppy disk controller. 2-14 IP35/IP35-E...
Page 39 When set to [Enabled], access through the onboard LAN port can remotely wake up the system that was in Soft-Off condition. Wake Up by Alarm When set to [Enabled], you can set the date and time you would like the Soft-Off PC to IP35/IP35-E 2-15...
Page 40 [Power Off]: When power returns after an AC power failure, the system’s power remains off. You must press the Power button to power-on the system. [Power On]: When power returns after an AC power failure, the system’s power will be powered on automatically. 2-16 IP35/IP35-E...
Page 41 This item sets each system interrupt to either [PCI Device] or [Reserved]. PCI/VGA Palette Snoop This item determines whether the MPEG ISA/VESA VGA cards can work with PCI/VGA or not. [Enabled]: MPEG ISA/VESA VGA cards work with PCI/VGA. [Disabled]: MPEG ISA/VESA VGA cards do not work with PCI/VGA. IP35/IP35-E 2-17...
Page 42 2.8 PC Health Status Phoenix – AwardBIOS CMOS Setup Utility PC Health Status ► ABIT FanEQ Control Press Enter Item Help FAN Fail Alarm Selectable CPU FAN Shutdown When FAN Fail Disabled CPU Shutdown Temperature 90 ° C/194 ° F CPU Warning Temperature 80 °...
Page 43 This item sets the lowest speed ratio for the CPU fan connected to “SYSFAN1” fan power header to run at when the CPU temperature detected is lower than the value of item “FanEQ Target Temp.” plus the value of item “FanEQ Temp. Tolerance”. IP35/IP35-E 2-19...
Page 44 This option protects the BIOS configuration or restricts access to the computer itself. 2.12 Save & Exit Setup This option saves your selections and exits the BIOS setup menu. 2.13 Exit Without Saving This option exits the BIOS setup menu without saving any changes. 2-20 IP35/IP35-E...
Page 45 • [Utility]: Click to enter the utilities installation menu. • [abit Utility]: Click to enter the installation menu of utilities exclusively developed by abit. • Browse CD]: Click to browse the contents of this “Driver-&-Utility CD”. • Close]: Click to exit this installation menu.
Page 46 Both SATA3 and SATA4 connectors are available for IP35 only. ※ To install this program: Click on the [Drivers] tab in the installation menu screen. Click the [Intel Matrix Storage Technology Driver] item. The installation screen appears. Follow the prompts on the screen to complete installation. IP35/IP35-E...
Page 47 Sound Manager icon located at the desktop shortcut. Click item “Sound Manager”. The Realtek HD Audio Manager appears. Click the [Audio I/O] tab. Click the pull down menu to select the channel configuration. Click [OK] button to apply the Audio I/O settings and exit. IP35/IP35-E...
Page 48 Follow the prompts on the screen to complete installation. 3.6 USB 2.0 Driver There is no need to install this driver for Windows 2000 with Service Pack 4, ※ Windows XP with Service Pack 1, or their later version. IP35/IP35-E...
Page 49 The abitEQ is a self-diagnostic system that protects PC Hardware by monitoring critical items of Power Supply Voltage, CPU & System Fans Speed, and CPU & System Temperature. To install this utility: Click on the [abit Utility] tab in the installation menu screen. Click the [abitEQ] item. The following screen appears.
Page 50 3.8 FlashMenu (BIOS Update Utility) The FlashMenu is a utility to flash the BIOS in a more easily and quickly way. To install this utility: Click on the [abit Utility] tab in the installation menu screen. Click the [FlashMenu] item. The following screen appears.
Page 51 Save this selection and exit BIOS setup menu by accessing the BIOS menu “Save & Exit Setup”. Restart the system. The system will now boot from CD, and enter the ABIT Boot Manager, the following options appear (0) Boot From First HDD...
Page 52 IP35/IP35-E...
Page 53 • [SLED]: Connecte au câble de la DEL de veille. l’installation de votre carte mère abit. Pour des opérations plus • [PWR]: Connecte au câble de l’interrupteur de l’alimentation avancées, vous devez vous reporter à la version complète.
Page 54 Diese “Kurze Installationsanleitung” enthält nur die Anschlüsse auf der Vorderseite: [FPIO1] grundlegenden Hardwareinformationen, die Sie zur [HLED]: Kabelanschluss für Festplattenzugriffsanzeige. • Installation Ihres abit-Motherboards benötigen. Details [RST]: Kabelanschluss für Rücksetzschalter. • finden Sie im ausführlichen Handbuch. [SPKR]: Kabelanschluss für Kabelanschluss für •...
Page 55 • [PLED]: collega al cavo LED alimentazione. le informazioni di base sull’hardware necessarie all’installazione della scheda madre abit. Fare riferimento Collettore porta USB aggiuntiva: [FP-USB1], [FP-USB2] alla versione completa della guida per eseguire le Collettore porta IEEE 1394 aggiuntiva: [FP-1394-1], [FP-1394-2] operazioni avanzate.
Page 56 [PWR]: Conecte el cable del interruptor de encendido. • durante la instalación de la placa base abit. Para conocer el [PLED]: Conecte el cable del LED de encendido. • funcionamiento avanzado, es necesario consultar la Terminal de puerto USB adicional: [FP-USB1], [FP-USB2] versión completa.
Page 57 à • [PWR]: Faz a ligação ao cabo do botão de alimentação. instalação da sua placa principal abit. Para mais • [PLED]: Faz a ligação ao cabo do LED do botão de alimentação.
Page 58 основная информация о техническом обеспечении, которая • [PLED]: Соединяется с кабелем индикатора питания. вам может понадобиться при установке материнской платы abit. Описание дополнительных операций вы найдете в Дополнительная насадка порта USB: [FP-USB1], [FP-USB2] полной версии руководства. Дополнительная насадка порта IEEE 1394: [FP-1394-1], [FP-1394-2] Предостережения...
Page 59 4.7 Eesti//Kiirpaigaldusjuhend Käesolev “Kiirpaigaldusjuhend” sisaldab ainult [SLED]: Ühendage peatusindikaatori (Suspend LED) • abit-emaplaadi paigaldamiseks vajalikku riistvaraalast kaabliga. põhiteavet. Edasijõudnud kasutamiseks tuleb teil ikkagi [PWR]: Ühendage toitelüliti kaabliga. • pöörduda täisversiooni poole. [PLED]: Ühendage toiteindikaatori (Power LED) kaabliga. • Täiendav USB-pordi päis: [FP-USB1], [FP-USB2] Ettevaatusabinõud riistvara paigaldamisel...
Page 60 4.8 Latviski//Ātrās instalēšanas instrukcija Šī “Ātrās instalēšanas instrukcija” ietver tikai pamata [RST]: Pievieno atiestates slēdža kabeli. • norādes iekārtai, kas nepieciešamas, instalējot abit [SPKR]: Pievieno sistēmas skaļruņa kabeli. • mātesplati. Pilnīgākai darbībai nepieciešams iegūt [SLED]: Pievieno LED pārtraukšanas kabeli. •...
Page 61 [SLED]: Sujunkite su darbo pristabdymo indikatoriaus • informacija apie techninę įrangą, kurios jums gali prireikti kabeliu. instaliuojant pagrindinę plokštę abit. Papildomų operacijų [PWR]: Sujunkite su maitinimo tinklo jungiklio kabeliu. • aprašymą rasite pilnoje vadovo versijoje. [PLED]: Sujunkite su maitinimo indikatoriaus kabeliu.
Page 62 [SLED]: Podłączenie kabla diody LED wstrzymania pracy. • podstawowe informacje dotyczące sprzętu, wymagane [PWR]: Podłączenie kabla przełącznika zasilania. • podczas instalacji płyty głównej abit. Przy [PLED]: Podłączenie kabla diody LED zasilania. • zaawansowanych operacjach, niezbędne będzie skorzystanie z kompletnej wersji instrukcji.
Page 63 4.11 Magyar//Gyorstelepítési útmutató Ez a “Gyorstelepítési útmutató” csak azt az alapvető [PWR]: Csatlakoztassa a tápkapcsoló kábelhez. • hardver információt tartalmazza, amely az abit alaplap [PLED]: Csatlakoztasson a táp LED kábelhez • telepítéséhez szükséges. Az előrehaladott üzemeltetéshez, Kiegészítő USB port fejrész: [FP-USB1], [FP-USB2] továbbra is a teljes útmutatót kell használnia.
Page 64 4.12 Türkçe//Hızlı Kurulum Kılavuzu Bu “Hızlı Kurulum Kılavuzu”, abit anakartınızı takmanızda Ön Panel Konnektörleri: [FPIO1] gerekebilecek sadece temel donanım bilgisini içermektedir. [HLED]: Sabit Disk Sürücü LED kablosuna bağlayın. • İleri işlemler için daha geniş olan tam versiyonuna [RST]: Sıfırlama Anahtarı kablosuna bağlayın.
Page 65 ‫دﻟﻴﻞ اﻟﺘﺮآﻴﺐ اﻟﺴﺮﻳﻊ‬ ‫اﻟﻠﻐﺔ اﻟﻌﺮﺑﻴﺔ‬ 4.13 IP35/IP35-E 4-13...
Page 66 ‫راهﻨﻤﺎﯼ ﻧﺼﺐ ﺳﺮﻳﻊ‬ ‫ﻓﺎرﺳﯽ‬ 4.14 4-14 IP35/IP35-E...
Page 67 4.15 日本語//クイックインストールガイド • この「クイックインストールガイド」には、abit マ [SPKR]: システムスピーカーケーブルに接続 • [SLED]: サスペンド LED ケーブルに接続ザーボードを取り付けるときに必要となるハードウ • [PWR]: 電源スイッチケーブルに接続ェアの基本情報のみが含まれています。詳細な操作 • [PLED]: 電源 LED ケーブルに接続については、その完全版を参照してください。ハードウェアのセットアップに関する注意事項追加 USB ポートヘッダ: [FP-USB1]、[FP-USB2] • ボードを取り付けたり設定を変更するときは、事前に追加 IEEE 1394 ポートヘッダ: [FP-1394-1]、[FP-1394-2] 電源装置をオフにし、AC コンセントからプラグを必ず抜いてください。前面パネルオーディオ接続ヘッダ: [FP-AUDIO1] •...
Page 68 4.16 한국어//빠른 설치 가이드 본 “빠른 설치 가이드”는 빅빔 abit 메인보드 • [SPKR]: 시스템 스피커 케이블에 연결하세요. [SLED]: 유휴(Suspend) LED 케이블에 연결하세요. • 설치에 필요한 중요한 하드웨어 정보만을 • [PWR]: 전원 스위치 케이블에 연결하세요. 포함하고 있습니다. 보다 상세한 정보 및 과정은...
Page 69 • maklumat perkakasan asas yang anda mungkin perlu [SPKR]: Sambungkan ke kabel Sistem Pembesar Suara. • semasa memasang papan induk abit anda. Untuk [SLED]: Sambungkan ke kabel Gantung LED. • pengendalian lanjutan, anda perlu rujuk ke versi [PWR]: Sambungkan ke kabel Suis Kuasa.
Page 70 เป็ น เพี ย งข้ อ มู ล พื ้ น ฐานที ่ จ ำเป็ น ใน [SPKR]:ต่ อ เข้ า กั บ สายลำโพงของระบบ • การติ ด ตั ้ ง แผงวงจรหลั ก abit ของคุ ณ เท่ า นั ้ น กรุ ณ า [SLED]:ต่ อ เข้ า กั บ สาย LED •...
Page 71 • 6 個 SATA 3Gb/s 接頭 • IP35: Intel P35 / Intel ICH9R （只用於 IP35-E） • 4 個 SATA 3Gb/s 接頭 • IP35-E: Intel P35 / Intel ICH9 • 4 個 USB 2.0 接頭記憶體（只用於 IP35） • 1 個 IEEE 1394 接頭...
Page 72 4.19.2 快速安裝略說本「快速安裝略說」僅包含安裝 abit 主機板時所需的附加的 USB 連接埠接頭：[FP-USB1]、[FP-USB2] 基本硬體資訊。詳細的操作方式，仍請參閱其完整的除了位於 I/O 面板上的內建 USB 接頭外，您可透過帶有手冊版本。支架的延長線，連接這些各有兩個附加 USB 連接埠的接頭。硬體安裝注意事項附加的 IEEE 1394 連接埠接頭：[FP-1394-1]、[FP-1394-2] • 安裝機板或變換任何設定之前，請先關閉電源並拔除了位於 I/O 面板上的內建 IEEE 1394 接頭外，您可透掉電源插頭。過帶有支架的延長線，連接這些各有一個附加 IEEE • 從抗靜電袋中取出機板前，請先戴上靜電安全手 1394 連接埠的接頭。...
Page 73 • 6 个 SATA 3Gb/s 接头 • IP35: Intel P35 / Intel ICH9R （只用于 IP35-E） • 4 个 SATA 3Gb/s 接头 • IP35-E: Intel P35 / Intel ICH9 • 4 个 USB 2.0 接头内存（只用于 IP35） • 1 个 IEEE 1394 接头...
Page 74 4.20.2 快速安装略说 [PLED]：连接电源 LED 电缆。本“快速安装略说”仅包含基本的硬件信息，供您在 • 安装 abit 主板时进行参考。如需了解高级操作，仍请附加的 USB 端口接头：[FP-USB1]、[FP-USB2] 参阅其完整的手册版本。除了位于 I/O 面板上的板载 USB 连接器外，这些接头可以通过带线卡的延长电缆分别提供两个附加的 USB 端硬件设置注意事项口连接。 • 在安装主板或更改任何设置前，务必关闭电源并从附加的 IEEE 1394 端口接头：[FP-1394-1]、[FP-1394-2] 交流插座上拔掉电源线。除了位于 I/O 面板上的板载 IEEE 1394 连接器外，这些 •...
Page 75 If the situation remains the same, try Step 3. Step 3. The same procedure as Step 2, but while discharging the CMOS data, pull out the ATX power connectors from motherboard and remove the button battery during CMOS discharge. IP35/IP35-E...
Page 76 Example: Intel 650 3.4GHz (OC FSB=220MHz) • Memory brand: Type in the brand and model name of your memory module. Example: Memory brand: Kingston (KVR533D2N4/1G) • Memory size: Type in the size of your memory module. Example: 512M* 4PCS IP35/IP35-E...
Page 77 See the next page for a blank Technical Support Form, or visit our website to fill in the form on line (http://www.abit.com.tw/page/en/contact/technical.php). Q. Is the motherboard dead? Do I need to return it to where I bought from or go...
Page 78 5.1.2 Technical Support Form Region: E-mail: First name: Last Name: Subject: Motherboard: BIOS Version: CPU: Memory brand: Memory size: Memory configuration: Graphics card: Graphics driver version: Power supply maker: Power supply wattage: Storage devices: Optical devices: Other devices: Operating system: Problem description: IP35/IP35-E...
Page 79 Universal ABIT (USA) Corporation 2901 Bayview Drive, Shanghai Fremont, CA 94538, U.S.A. Tel: 1-510-623-0500 Universal ABIT (Shanghai) Co. Ltd. Fax: 1-510-623-1092 FL 19 Xuhui Yuan BLOG NO.1089 Website: http://www.abit-usa.com ZhongShan s 2 RD, ShangHai 200030 The People's Republic of China Latin America: r aymond@abit-usa.com...
Page 80 P/N: 4310-0000-78 Rev. 1.00...
