ASSEMBLY INSTRUCTIONS

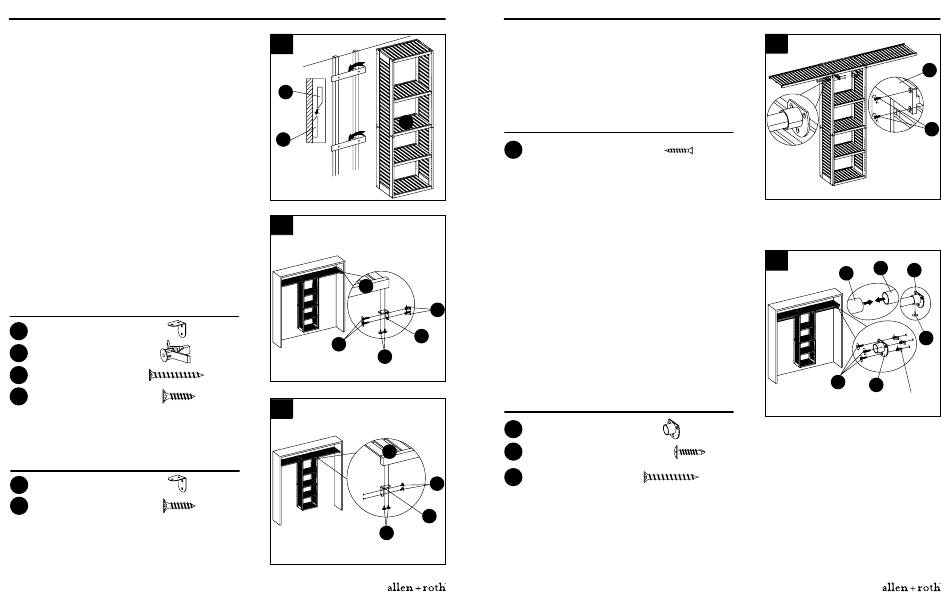

7. With the help from another person, carefully
hang the unit from mounting cleats (H) & middle
fixed Shelf (G) onto wall hanging cleats (I).
Long Shelf Installation
Note: If long shelf (K) needs cut to fit inside your
closet space, cut only one side of the shelf and do
not use a hacksaw. It is recommended you hire an
insured remodeler for this type of installation.
8. With a pencil, draw a level line at the desired
mounting location for long shelf (K). Using
L-brackets (LL) as a guide, mark the screw hole
locations with a pencil. Drill 3/8 in. diameter pilot holes
at least 2-1/2 in. deep at marked locations, then insert
wall anchors (NN) into the holes until they are flush
with the wall. Attach L-brackets (LL) to the wall using
M4 x 38 mm screws (QQ) and to the long shelf (K)
using M4 x 14 mm wood screws (TT).
Hardware Used
LL
L-Bracket
NN
Wall Anchor
QQ
M4 x 38 mm Screw
TT
M4 x 14 mm Wood Screw
9. Attach long shelves (K) to left side panel (A) and
right side panel (B) with L-brackets (LL), securing
with M4 x 14 mm wood screws (TT).
Hardware Used
LL
L-Bracket
TT
M4 x 14 mm Wood Screw
7
H
I
8
K
x 4
QQ
x 8
TT
x 8
x 8
9
K
x 4
x 16
TT
Lowes.com/allenandroth
8
ASSEMBLY INSTRUCTIONS
10. If you intend to install the Expandable Pole,
attach wood supports (J) on the inside of upper left
side panel (A) and/ or upper right side panel (B)
using wood screws (FF).
Note: The expandable pole should be installed to the
middle of wood support (J).
G
Hardware Used
FF
M3.5 x 12 mm Wood Screw
Pole Installation
18. Insert 22 mm metal poles (X) into 25 mm metal
poles (Y). Using closed pole holders (ZZ) as a guide,
mark screw hole locations with a pencil. Drill 3/8 in.
diameter pilot holes at least 2-1/2 in. deep at marked
locations, then insert drywall anchors (not included)
NN
into the holes. Attach closed pole holders (ZZ) with
M4 x 38 mm zinc screws (KK). Insert 25 mm metal
LL
poles (Y) into closed pole holders (ZZ), securing with
M4 x 15 mm self-tapping screws (AB).
Note: Drywall anchors are not required if installing
into a stud.
Hardware Used
ZZ
Closed Pole Holder
AB
M4 x 15 mm Self-tapping Screw
KK
M4 x 38 mm Zinc Screw
TT
LL
10
x 8
11
Y
X
KK
ZZ
Drywall Anchor
x 2
x 2
x 6
Lowes.com/allenandroth
9
J
FF
ZZ
AB
