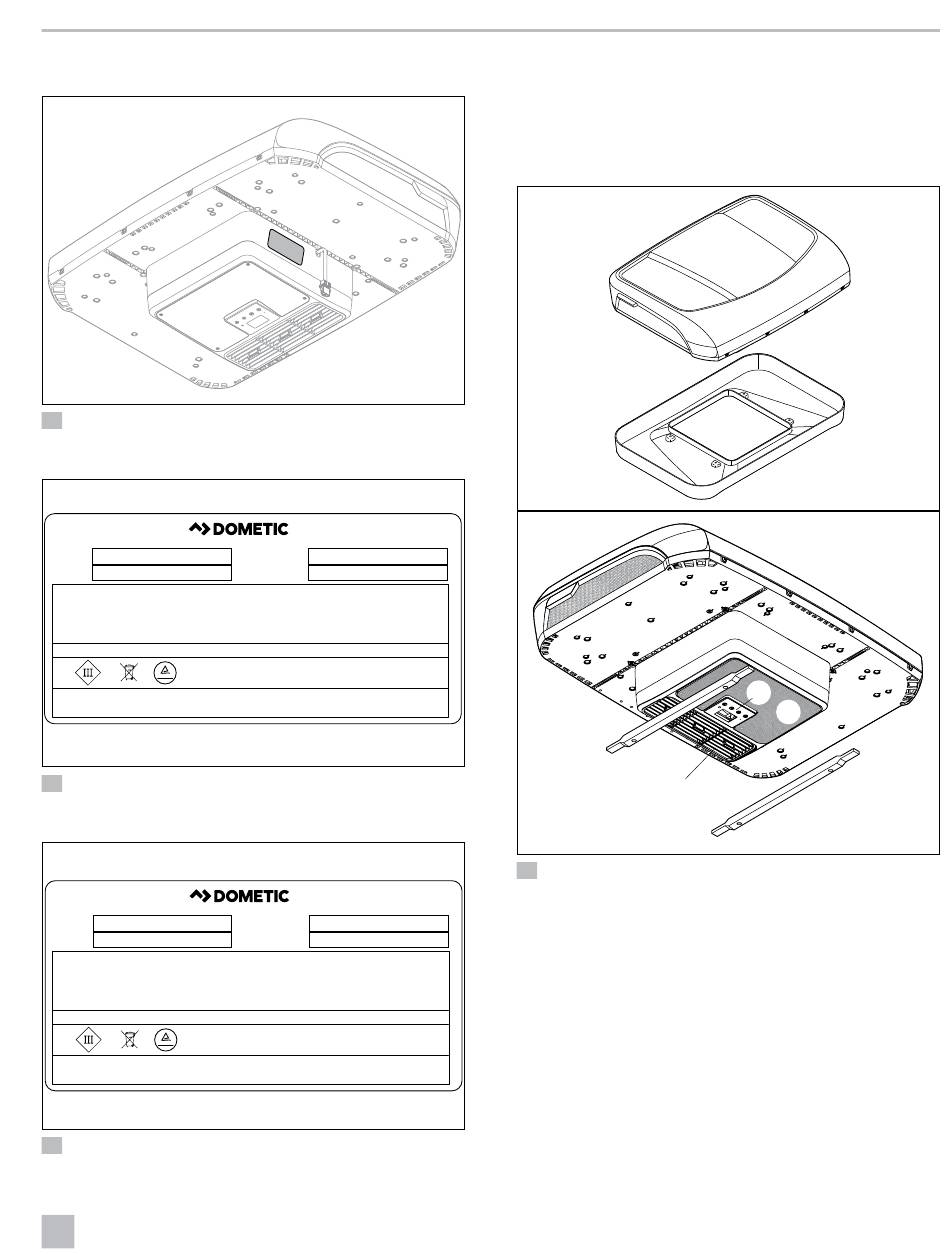

3 .2 Identification du modèle
1 Emplacement de la plaque signalétique
Model RTX1000
SKU 9600028489
Truck Parking Cooler
g
Rated Voltage: 12VDC
Refrigerant: R 34a/0.350kg, GWP=1430
C0 -Equivalent: 0.500t
2
Contains fluorinated greenhouse gases. Hermetically sealed equpiment.
©
US
Manufactured by Dometic (Zhuhai) Technology Co., Ltd.
Building A1 to A8, B1 to B6, No. 18, Jinhu Road, Sanzao Town, Jinwan District, Zhuhai City, Guangdong Province 519041, P. R. China
Made in China
2 Plaque signalétique RTX 1000
Model RTX2000
SKU 9600028490
Truck Parking Cooler
g
Rated Voltage: 12VDC
Refrigerant: R 34a/0.850kg, GWP=1430
C0 -Equivalent: 1.215t
2
Contains fluorinated greenhouse gases. Hermetically sealed equpiment.
©
US
Manufactured by Dometic (Zhuhai) Technology Co., Ltd.
Building A1 to A8, B1 to B6, No. 18, Jinhu Road, Sanzao Town, Jinwan District, Zhuhai City, Guangdong Province 519041, P. R. China
Made in China
3 Plaque signalétique RTX 2000
FR
PNC 936003520
Serial 02520001
Fuse: 80A
Rated power input: 570W
Max Pressure: LP 11bar/HP 25bar
Protection: IPX6K (For outside)
dometic.com
PNC 936003521
Serial 02520555
Fuse: 80A
Rated power input: 650W
Max Pressure: LP 11bar/HP 25bar
Protection: IPX6K (For outside)
dometic.com
3 .3 Emplacements des
composants
Cette section identifie les composants principaux de
l'appareil.
r
4 Emplacement des composants du RTX
Couvercle extérieur
q
Cadre de couvercle
w
Grille d'admission
e
Informations générales
q
w
t
e
y
Buse de soufflerie
r
Panneau de
t
commande
Support de fixation
y
