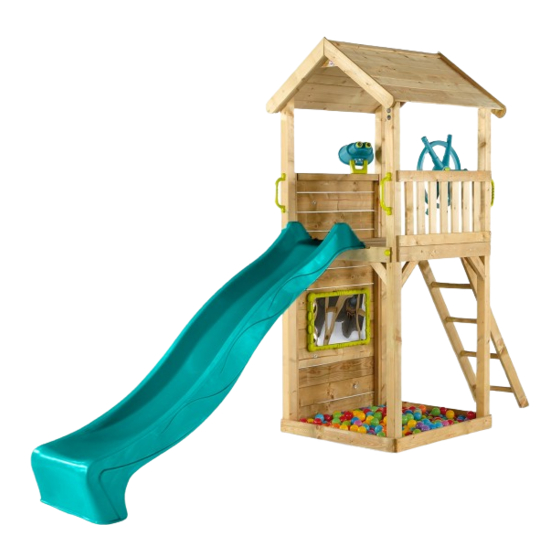

Lookout Tower
Assembly Instructions
Tour d'observation
Instructions de montage
Torre de vigía
Instrucciones de montaje
Torre di avvistamento
Istruzioni di montaggio
Aussichtsturm
Montageanleitung
25501AE69
5:00
x5
1
01047_Lookout Tower_IM_25501AE69.indd 1
26/10/2019 16:03:37
Publicité
Manuels Connexes pour Plum PLAY Lookout Tower
Sommaire des Matières pour Plum PLAY Lookout Tower
- Page 1 Lookout Tower Assembly Instructions Tour d’observation Instructions de montage Torre de vigía Instrucciones de montaje Torre di avvistamento Istruzioni di montaggio Aussichtsturm Montageanleitung 25501AE69 5:00 01047_Lookout Tower_IM_25501AE69.indd 1 26/10/2019 16:03:37...
- Page 2 EN Thank you for purchasing from Plum barnen frihet och låter föräldrarna slippa oro. IS Þakka þér fyrir að versla við Plum ® ® Plum are the playtime specialists providing Plum eru leikjasérfræðingar sem útvega elds- ® ® NL Bedankt dat u een product van Plum ®...
- Page 3 EN Advisory Section WARNING! To ensure the safety of you, the installer and your children, Minimum user age 3+ years • Adult assembly required • Adult it is important that these instructions are read fully before supervision required at all times • Maximum user weight 50kg commencing the positioning and installation of this product.
- Page 4 D1735 D2692 D2693 D2693 D2694 D1663 D2696 D1658 D2008 D2690 D1937 D1937 D1652 D1973 D1974 D1652 x3 18 x 88 x 944mm D1671 x12 12 x 88 x 1035mm D1973 x1 28 x 88 x 1374mm D1658 x1 18 x 88 x 900mm D1735 x1 38 x 74 x 1035mm D1974 x1...
- Page 5 D2685 x1 D2685 D2684 x1 D1652 x 1 D1658 x 1 D1930 x 1 M8 x 100 D2684 D1930 100mm M8 x 50 50mm D1658 D1930 M8 (25mm) D1658 M5 x 50 50mm D1652 D2684 x1 D2684 D2686 x1 D1652 x 1 D1660 x 1 D1930 x 1 M8 x 100...
- Page 6 M5 x 50 50mm D1661 x 1 M5 x 50 50mm D1652 x 1 01047_Lookout Tower_IM_25501AE69.indd 6 26/10/2019 16:03:41...
- Page 7 27mm 27mm 27mm 27mm 27mm 27mm 27mm D2696 D2695 D2008 D2696 x1 D2008 x1 D1663 x6 M5 x 40 D2695 x1 40mm 994mm 994mm 01047_Lookout Tower_IM_25501AE69.indd 7 26/10/2019 16:03:43...
- Page 8 M5 x 60 D1733 x2 M5 x 40 40mm M5 x 60 60mm M5 x 60 D1662 x4 M5 x 40 40mm M5 x 60 60mm 01047_Lookout Tower_IM_25501AE69.indd 8 26/10/2019 16:03:44...
- Page 9 M5 x 60 60mm D1937 x2 M5 x 60 60mm D1936 x2 01047_Lookout Tower_IM_25501AE69.indd 9 26/10/2019 16:03:46...
- Page 10 30mm D2688 x6 T-NUT D2689 D2688 D2687 M5 x 40 40mm D2687 x7 D2689 x1 01047_Lookout Tower_IM_25501AE69.indd 10 26/10/2019 16:03:48...
- Page 11 M5 x 40 40mm D1938 x1 M4 x 60 M4 x 60 60mm H112 x1 M4 x 16 16mm D1939 x1 01047_Lookout Tower_IM_25501AE69.indd 11 26/10/2019 16:03:49...
- Page 12 M4 x 25 25mm M5 x 40 40mm D1666 x2 01047_Lookout Tower_IM_25501AE69.indd 12 26/10/2019 16:03:51...
- Page 13 M4 x 30 30mm D2694 x1 D2007 x7 M5 x 40 40mm D1670 x2 D1940 x4 01047_Lookout Tower_IM_25501AE69.indd 13 26/10/2019 16:03:53...
- Page 14 D2693 D2693 M5 x 40 40mm D2693 x2 D2692 x10 01047_Lookout Tower_IM_25501AE69.indd 14 26/10/2019 16:03:55...
- Page 15 M5 x 90 90mm M5 x 40 40mm D1941 x4 01047_Lookout Tower_IM_25501AE69.indd 15 26/10/2019 16:03:57...
- Page 16 D1735 x1 M2 x 25 25mm M5 x 40 40mm D1675 x4 D1974 x1 D1973 x1 01047_Lookout Tower_IM_25501AE69.indd 16 26/10/2019 16:03:58...
- Page 17 16mm M8 x 100 100mm 16mm H126 x 1 M8 x 50 50mm 01047_Lookout Tower_IM_25501AE69.indd 17 26/10/2019 16:03:59...
- Page 18 H121 x 1 H123 x 1 23316 x1 M5 x 60 60mm 01047_Lookout Tower_IM_25501AE69.indd 18 26/10/2019 16:04:02...
- Page 19 H171 x 2 D1828 x 1 30cm 15cm 15cm Concrete Béton 25mm M6 x 40 40mm 01047_Lookout Tower_IM_25501AE69.indd 19 26/10/2019 16:04:04...
- Page 20 FR Consignes de sécurité Este producto se ha fabricado con madera de alta calidad. Hemos cuida- do en detalle la selección, el tratamiento y la mecanización de la madera antes de ofrecérsela. La madera es un producto natural y, como tal, Pour garantir votre sécurité...
- Page 21 zeug geeignet ist. - Variazioni nella forma. Ogni cambiamento di forma è da considerarsi minimo e non influisce in alcun modo sulla sicurezza di questo pro- Verordnung (EU) Nr. 528/2012 zu Biozidprodukten dotto; Mit Wolmanit Cx-10 behandeltes Holz ist ein behandeltes Produkt, das die folgenden Biozidprodukte enthält: Kupferhydroxidcarbonat/II/ - Scolorimento.
- Page 22 يراعى ضرورة الكشف الدوري على األجزاء الملحقة مثل المزالج of elektrische draden • Nesmí se instalovat nad betonovým, asfal- tovým nebo jakýmkoliv jiným tvrdým povrchem • Het anker dient و البكرات واألحبال وغير ذلك الحتماالت وجود ما يثبت تلفها وقم aangebracht te worden om te voorkomen dat het frame tijdens باستبدال...
- Page 23 beton, asfalt eller andre hårde overflader • Ankeret skal fastgøres, så άλλη σκληρή επιφάνεια • Ο γάντζος πρέπει να τοποθετείται, ώστε det undgås, at rammen løfter sig under brug • Det anbefales at tjekke να αποτρέπεται η ανύψωση του πλαισίου κατά τη διάρκεια της regelmæssigt (f.eks.
- Page 24 Eftirlit af hálfu fullorðinna áskilið öllum stundum • Hámarksþyngd notanda påse at sklien ikke er rettet direkte mot solen for å forhindre at overflaten blir ubehagelig varm • Du må ikke utføre endringer på produktet, da 50 kg • Aðeins til notkunar innanhúss • Aðeins til notkunar utanhúss • Hentar ekki börnum yngri en 36 mánaða - litlir hlutir, köfnunarhætta dette kan føre til skade eller fare •...
