4.3 Hydraulic circuit
278
114
10
8 DHW outlet - Ø 1/2"
9 DHW inlet - Ø 1/2"
10 System flow - Ø 3/4"
11 System return - Ø 3/4"
14 Safety valve
27 Exchanger
32 Heating circulating pump
36 Automatic air vent
37 Cold water inlet filter
42 DHW temperature sensor
56 Expansion vessel
74 System filling faucet
95 Diverter valve
114 Water pressure switch
136 Flowmeter
194 DHW exchanger
241 Automatic bypass
278 Double sensor (Safety + heating)
54
27
194
136
42
14
8

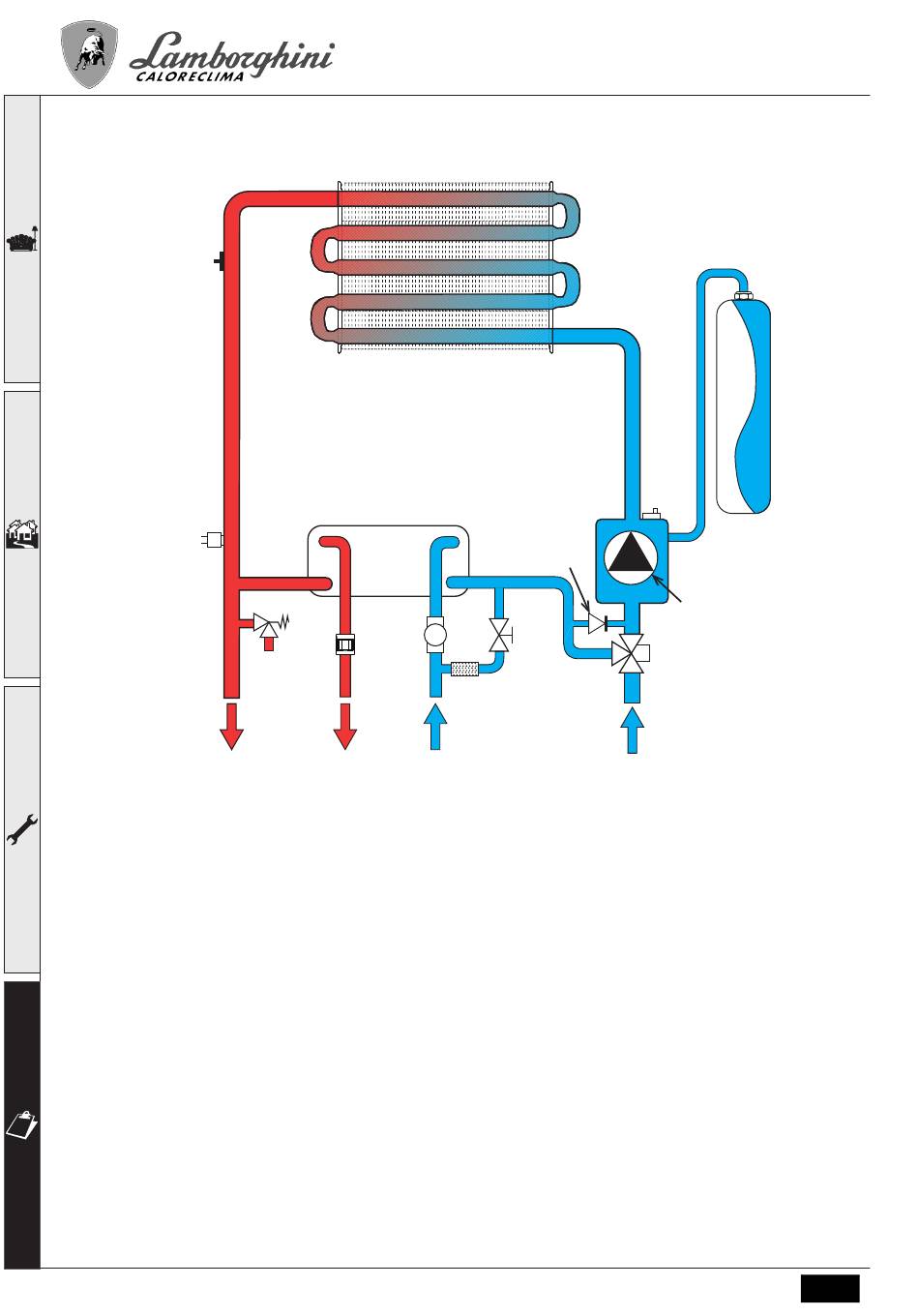

fig. 18- Heating circuit
cod. 3542B950 - Rev 01 - 04/2023
241
74
37
9
EASY TECH D C24
36
56
32
95
11
