EASY TECH D C24
4.2 General view and main components
7
Gas inlet - Ø 3/4"
8
DHW outlet - Ø 1/2"
9
DHW inlet - Ø 1/2"
10
System flow - Ø 3/4"
11
System return - Ø 3/4"
14
Safety valve
22
Burner
27
Exchanger
28
Fume manifold
32
Heating circulating pump
36
Automatic air vent
37
Cold water inlet filter
42
DHW temperature sensor
126
278
81
22
95
194
114
42
EN
10
8
7
44
74

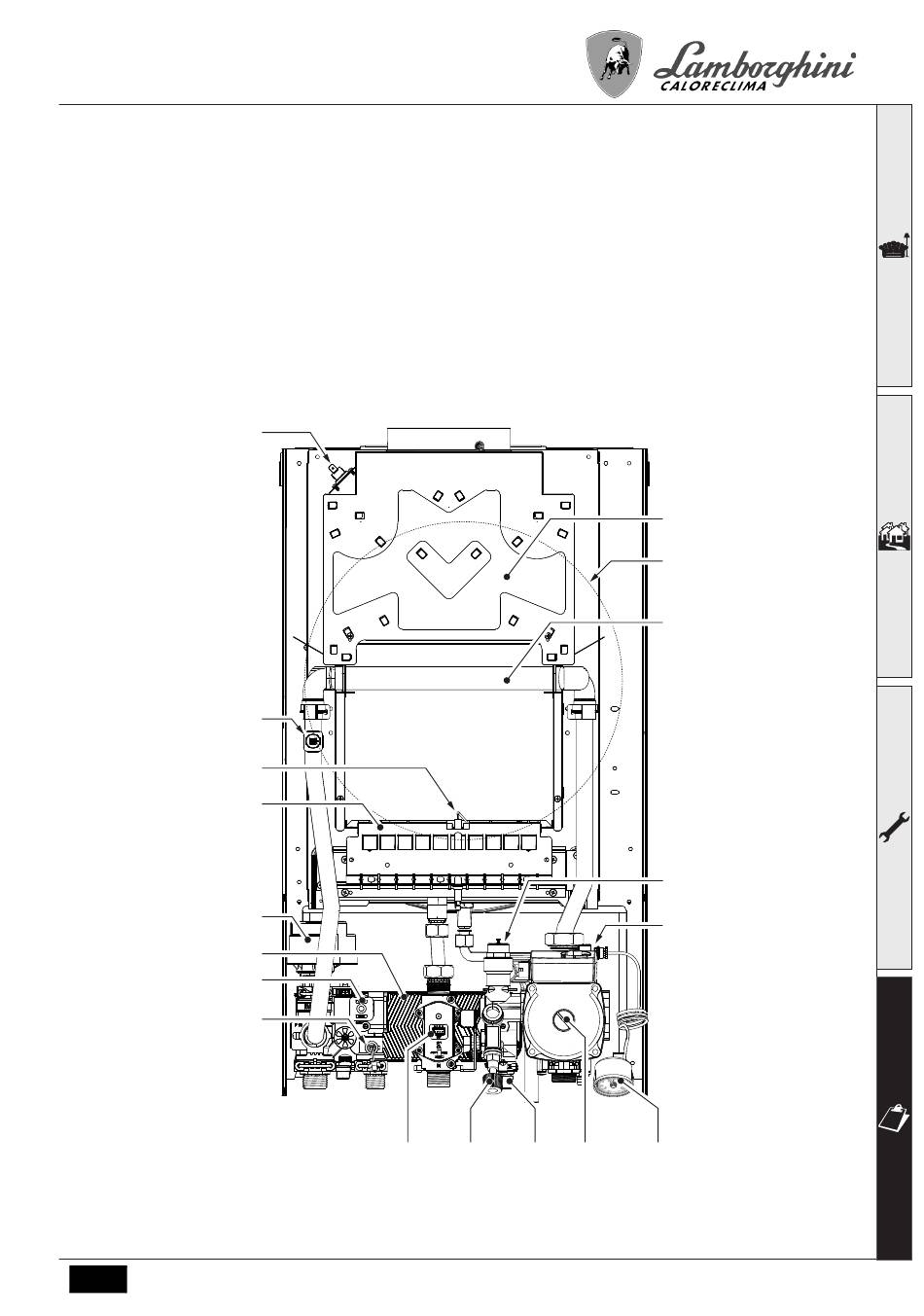

fig. 17- General view - EASY TECH D C24
cod. 3542B950 - Rev 01 - 04/2023
44
Gas valve
56
Expansion vessel
74
System filling faucet
78
Anti-backflow device
81
Ignition and detection electrode
95
Diverter valve
114 Water pressure switch
126 Fume thermostat
136 Flowmeter
145 Pressure gauge
194 DHW exchanger
278 Double sensor (Safety + heating)
78
56
27
14
36
9
11
37
32
145
