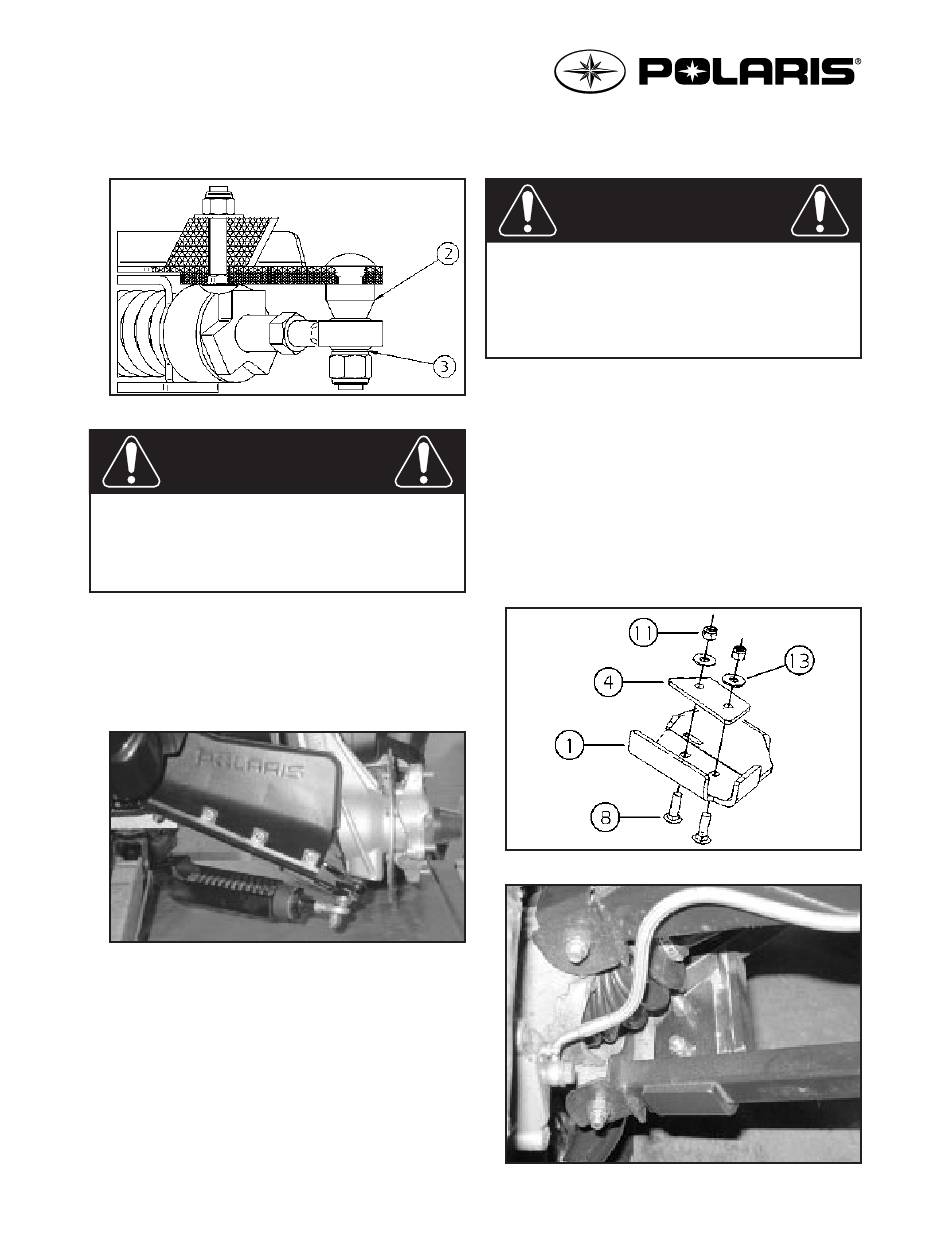

FRONT AND REAR SUB-TABLE KIT
KIT PN 2876904
Figure 7b - Orientation of the ball joint spacers
WARNING
If the bolts are not sufficiently tightened, there is a
risk of them becoming loose, of parts detaching and
risk of loss of control over the vehicle, as well as risk
of personal injury.
6.6. Rotate the anti-rotation assembly towards the
center of the ATV to prevent it from interfering
with the installation of the Track Kit.
6.6. Refer to the Track Kit manual to complete the
installation and adjustment.
Figure 8 - Front anti-rotation installation (step 6.6)
Rear Sub-table Installation
(see Figure 2 - Table 2 (page 4) for the rear sub-
table exploded view and the parts list)
1. Raise the rear of the ATV off the ground and remove
the rear wheels.
2510271
A-2510271 Rév. B
WARNING
When the ATV is raised, make sure that it is properly
secured/supported to prevent it from accidentally
falling during the installation of the tracks. If not
properly secured/supported, serious physical injury
could occur.
2. Install the sub-tables on the rear a-arm following
these steps :
2.1. Position the sub-table (#1) below the lower rear
a-arm.
2.2. Install the tightening plate (#4) over the rear
lower a-arm and fasten it to the sub-tables (#1)
using
(2) 3/8" nc X 1-1/4"
flat washers (#13), and
3/8" dia
nuts (#11).
2.3. Tighten all the bolts. Torque to 25 ft-lbs.
Figure 9a - Rear sub-table installation (steps 2.1 to 2.3)
Figure 9b - Rear sub-table assembly
- 7 -
carriage bolts (#8),
(2)
nylock
(2) 3/8" nc
