Safety and operating instructions
A
B

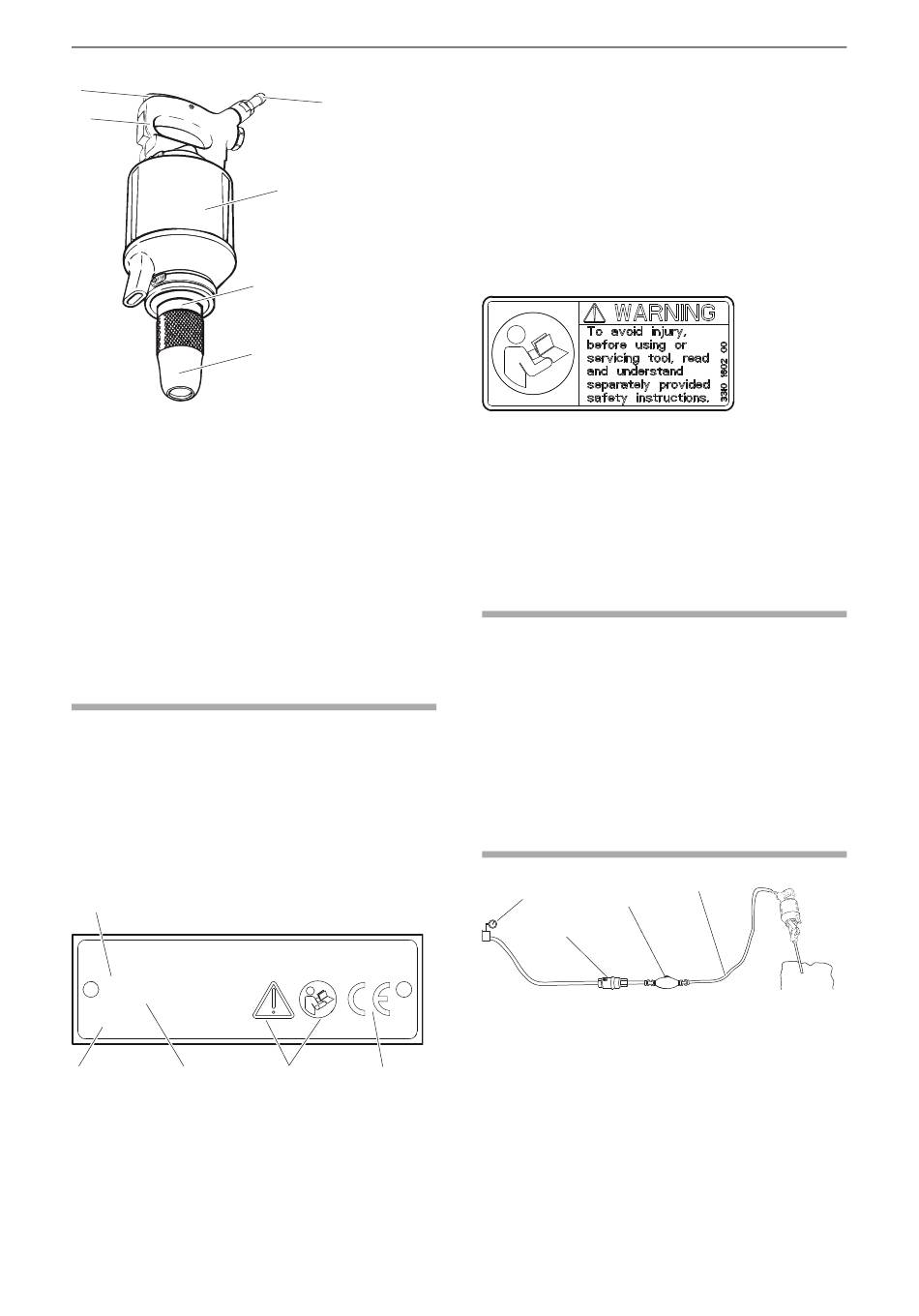

BBD 12DCS
Trigger
A.
D-handle
B.
C. Drill steel retainer
Air inlet nipple
D.
E. Silencer (optional)
F. Front head
Handle
G.
Labels
The machine is fitted with labels containing important
information about personal safety and machine
maintenance. The labels must be in such condition
that they are easy to read. New labels can be ordered
from the spare parts list.
Data plate
A
Construction Tools PC AB
Type
Ser. No.
Del. wt.
p max
B C
A. Machine type
Maximum hydraulic pressure
B.
Serial number
C.
14
D
E
F
C
xxxx
Made in
Production year
D E
The warning symbol together with the book
D.
symbol means that the user must read the
safety and operating instructions before the
machine is used for the first time.
E. The CE symbol means that the machine is
EC-approved. See the EC Declaration of
Conformity which is delivered with the machine
for more information.
Safety label
To avoid injury, before using or servicing tool, read
and understand separately provided safety
instructions.
Installation
Unpacking the rock drill
Plastic guards
Before the rock drill is first used remove all the plastic
guards in the hose nipples, venting holes and rotation
chuck.
Lubricate
After unpacking and installing the tool, pour a liberal
amount of lubrication oil in the air connection.
Hoses and connections
A
C
B
Compressed air source
A.
B. Water separator (optional)
Lubricator (optional)
C.
Max. 3 m (10 ft) compressed air hose between
D.
the lubricator and the machine.
© 2015 Construction Tools PC AB | No. 9800 0713 90d | 2015-10-07
BBD 12D, 12DS, 12DCS
D
Original instructions
