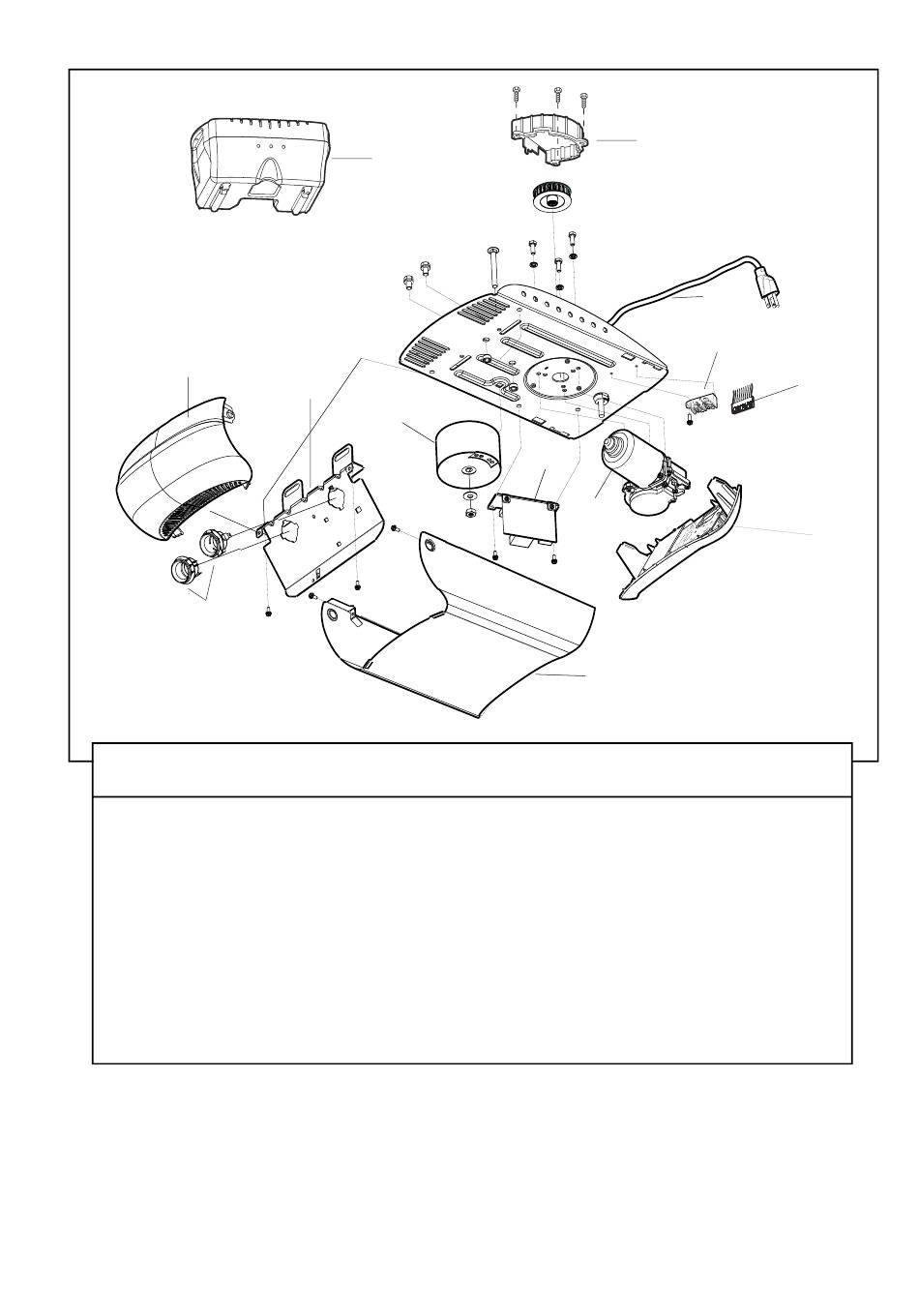

Motor Unit Assembly Parts

12
11
KEY PART
NO. NO.
1 41C76
2 41B4245
3 41B4375-2
4 41C5317
41C5839
41C5806
41C5418
5 41D605-1
6 41DB001-6
All manuals and user guides at all-guides.com
13
9
8
DESCRIPTION
Belt cap and sprocket
Line cord
Terminal block w/screws
Wire harness (logic)
High voltage wire harness
DC motor wire harness
Light socket wire harness
Motor 80kg/100kg
Receiver logic board assembly
with end panel
7
5
10
KEY PART
NO. NO. DESCRIPTION
7 41B5351-7 Power supply
8 41C168 Transformer and harness
9 41D630 Bracket: light socket, limit switch
10 41A5490-17 Cover
11 175C147 Light socket
12 108D78 Light lens
13 41A5893-1 BBU housing ONLY
NOT SHOWN
41B591 Battery replacement for BBU
41A5726 BBU circuit board
72A35 Fuse
