English–7
Indications and Settings of the on-board
computer
Energy supply of the on-board computer
If the on-board computer is in the holder 4, a sufficiently
charged battery pack is inserted into the eBike and the
eBike system is turned on, then the on-board computer is
powered by the eBike battery pack.
If the on-board computer is removed from the holder 4, the
energy is supplied via an internal battery pack. If the inter-
nal battery pack is weak when the on-board computer is
switched on, "Attach to bike" will appear in text indication
d for 3 s. The on-board computer will then turn off again.
To charge the internal battery pack, put the on-board com-
puter back in the holder 4 (when a battery pack is inserted
in the eBike). Switch the eBike battery pack on by its
On/Off button (see battery pack operating instructions).
You can also charge the on-board computer via the USB
port. Open the protective cap 8. Connect the USB port 7 of
the on-board computer via a suitable USB cable to a stan-
dard USB charger or the USB port of a computer (5 V charg-
ing voltage, max. 500 mA charging current). "USB con-
nected" will appear in the text indication d of the on-board
computer.
h
g
f
e
Switching the on-board computer On/Off
To switch on the on-board computer, briefly press the
On/Off button 5. When the internal battery pack is suffi-
ciently charged, the on-board computer can also be
switched on when not inserted in the holder.
To switch off the on-board computer, press the On/Off
button 5.
When the on-board computer is not inserted in the holder
and no button is pressed, it automatically switches off after
1 min to save energy.
 If you do not use your eBike for several weeks, re-
move the on-board computer from its holder. Store
the on-board computer in a dry environment at room
temperature. Regularly recharge the on-board comput-
er's battery pack.
1 270 U20 XBI | (20.4.16)
i
TURBO
a
SPORT
TOUR
b
ECO
OFF
c
MPH
KM/H
AMM
PMWH
MIN
MPH
KM/H
Range
d

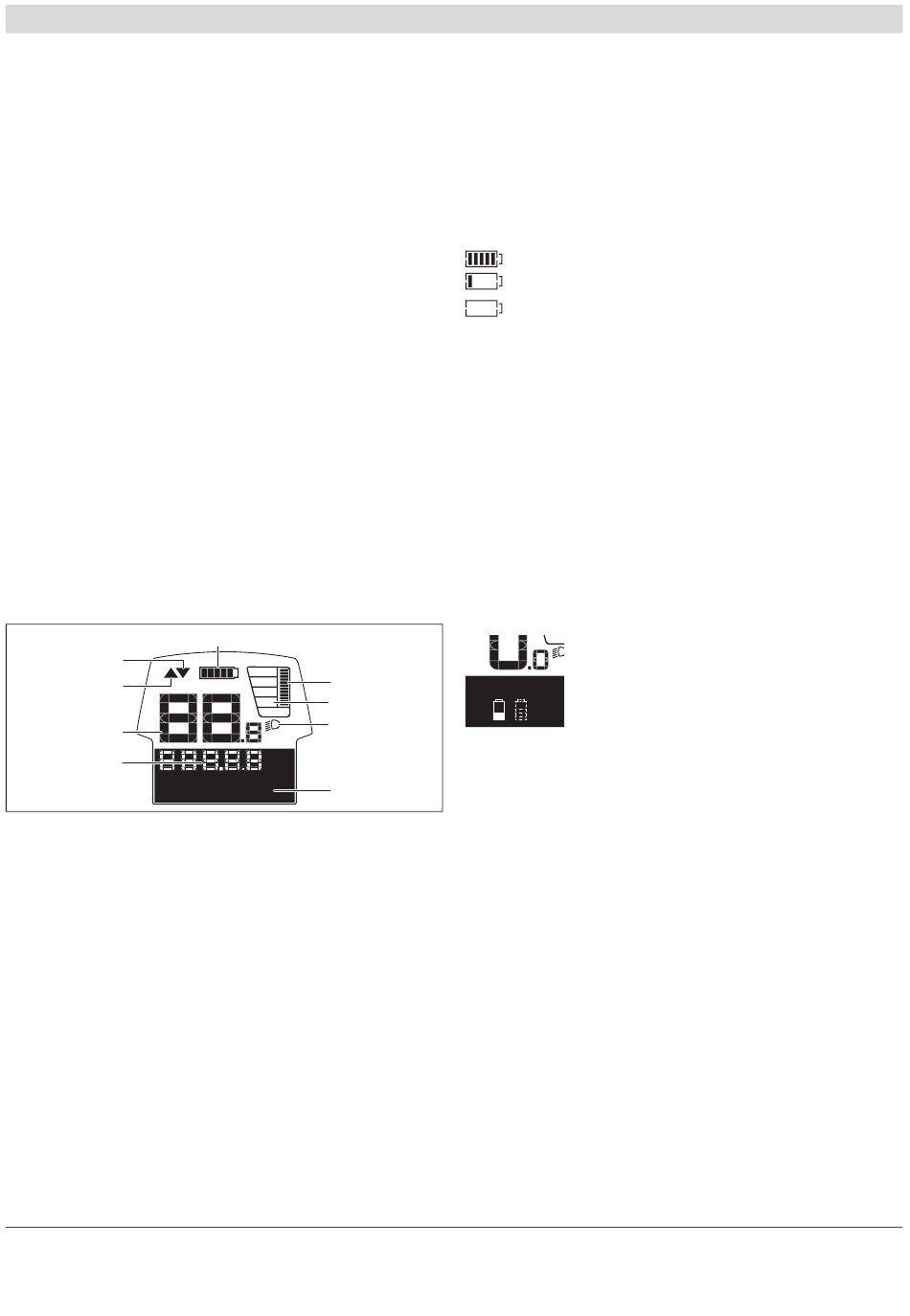

Battery charge-control indicator
The battery pack charge-control indicator i indicates the
charge condition of the eBike's battery pack, and not the
charge condition of the on-board computer's internal bat-
tery. The charge condition of the eBike's battery pack can
also be read from the battery pack's LEDs.
On indicator i, each bar of the battery pack symbol is equiv-
alent to a capacity of approx. 20 %:
The eBike battery is fully charged.
The eBike battery should be recharged.
Once there are no remaining LED bars illuminated
on the charge-control indicator, the motor support
is gently switched off and the charge-control indica-
tor begins to flash. The flashing charge-control indi-
cator means there is only enough battery power re-
maining to power the eBike lights for approximately
2 more hours. This does not account for other con-
sumers (e.g., automatic gearbox, charging external
devices at the USB port).
When the on-board computer is removed from holder 4,
the last indicated battery pack charge condition is stored.
If an eBike is operated with two battery packs, the battery
charge-control indicator i displays the level of both battery
packs.
If an eBike has two battery packs being
OF
charged on the bike, the charging progress of
MPH
KM/
both battery packs will be indicated on the
display (the left-hand battery pack is being
charged in the illustration). You can tell by
the flashing indicator on the battery pack
which of the two battery packs is being
charged.
