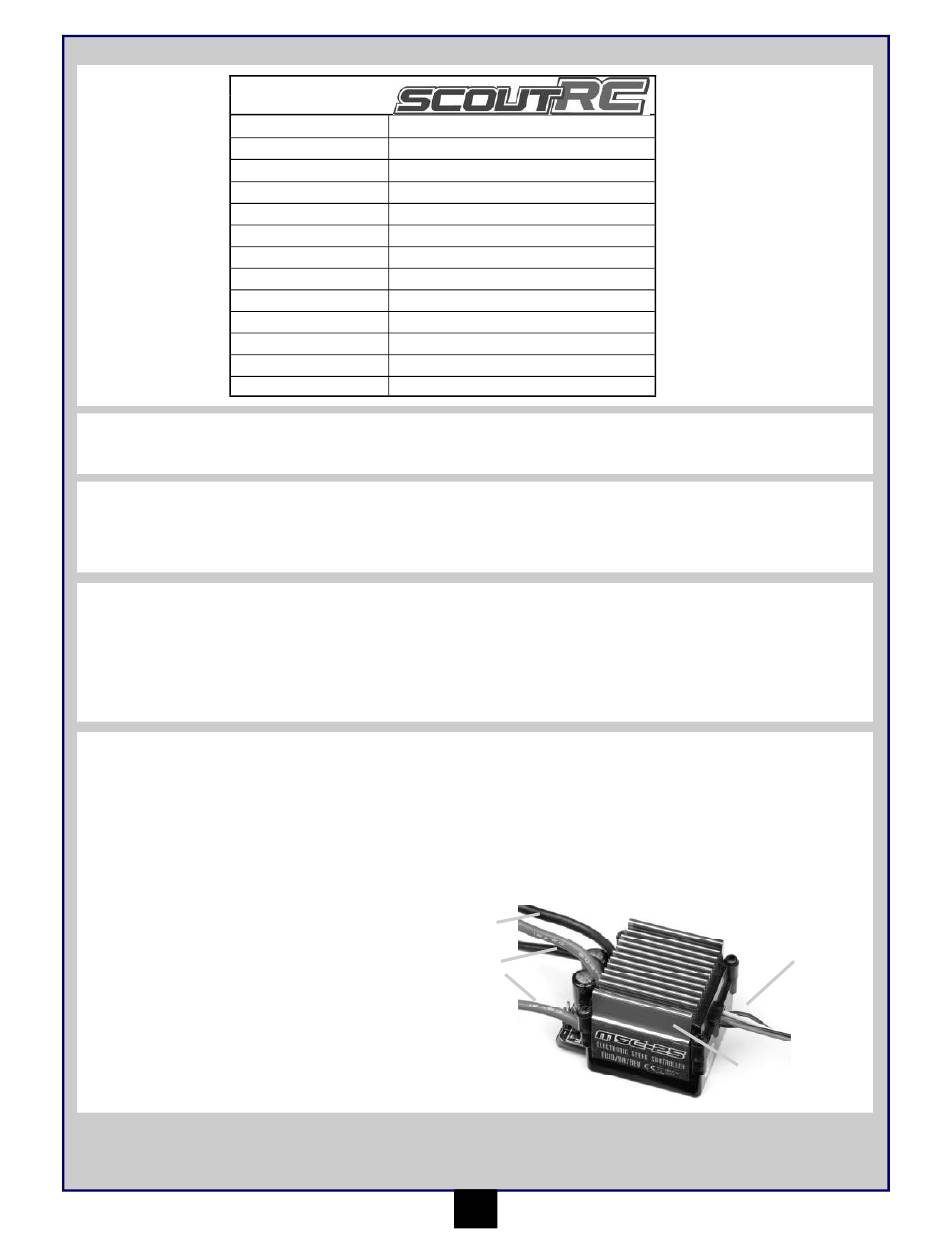

Specifications

Length
Width
Height
Wheel base
Drive System
Gear Ratio
Diameter of wheel
Width of wheel
Motor
Servo
Receiver
Speed Control
Battery

Items required for operation

8 * AA Batteries for the Transmitter

Recommended Tools

These tools are not included with the product but are recommended for use whilst working with this vehicle
Scissors, Mini Screwdrivers, Hexagonal Screwdrivers 1.5mm, 2.0mm, 4-Way Cross Wrench (Small), 4-Way Cross Wrench (Large), Side Cutters,
Needle Nose Pliers

Safety precautions

This product is an authentic radio controlled vehicle (RC vehicle) and it is not a toy. Read and understand this instruction manual thoroughly
before running the model. If you are not familiar with RC vehicles, we recommend that you ask someone familiar with RC vehicles for advice.
Never connect the rechargeable drive battery in the reverse polarity or disassemble the battery. If the drive battery is used in the wrong way, high
current can be generated and it is very dangerous.
Never run RC models near people or animals, or on public streets or highways. This could cause serious accidents, personal injuries, and/or
property damage.

Electronic Speed Controller

Features
•
6.0Volt — 8.4Volt Power Input
•
High Frequency Drive System
•
Forward, Reverse & Rock Crawler Brake Operation
•
Automatic Setup System
•
Over Current Protection
•
Thermal Protection
•
Low Voltage Protection
•
LED with audible beep
•
14 Turn Brushed Motor Limit
Technical Information
•
PWM frequency 1.5khz (fixed)
•
100 A drive FET's & 50A Reverse FET's
•
Case dimensions: 35mm*33mm*30mm
•
Silicone Wire 16 AWG
•
Weight 46.3g with connectors and switch
•
BEC Voltage 5V 1A
All manuals and user guides at all-guides.com
430mm
258mm
200mm
305mm
4wd Shaft Drive
1:48
68mm
56mm
MM-25 540 size 14T
Maverick MS-25
MRX-24 2.4Ghz
MSC-25RC Fwd/ Rev/Rock Crawler Brake
MBP-22 1800 mAh Ni-MH
Set-Up Instructions
1. With the speed control switch set to off, plug in a suitable battery pack.
2. With the transmitter switched on and throttle trim set to the centre, turn
on the speed control.
3. To Indicate the speed control is working correctly its LED will flash
followed by 3 beeps and a further flash.
4. If necessary adjust the throttle trim of the transmitter so your car is
stationary with no throttle or brake applied.
5. Your speed control is fully installed and ready to use.
Battery Cables
Motor Cables
3
Receiver &
Switch Cables
Heatsink
